Запчасти Case W8B (063E) - A57082 DISTRIBUTOR, WITH CENTER MOUNTED OIL PUMP (01) - ENGINE

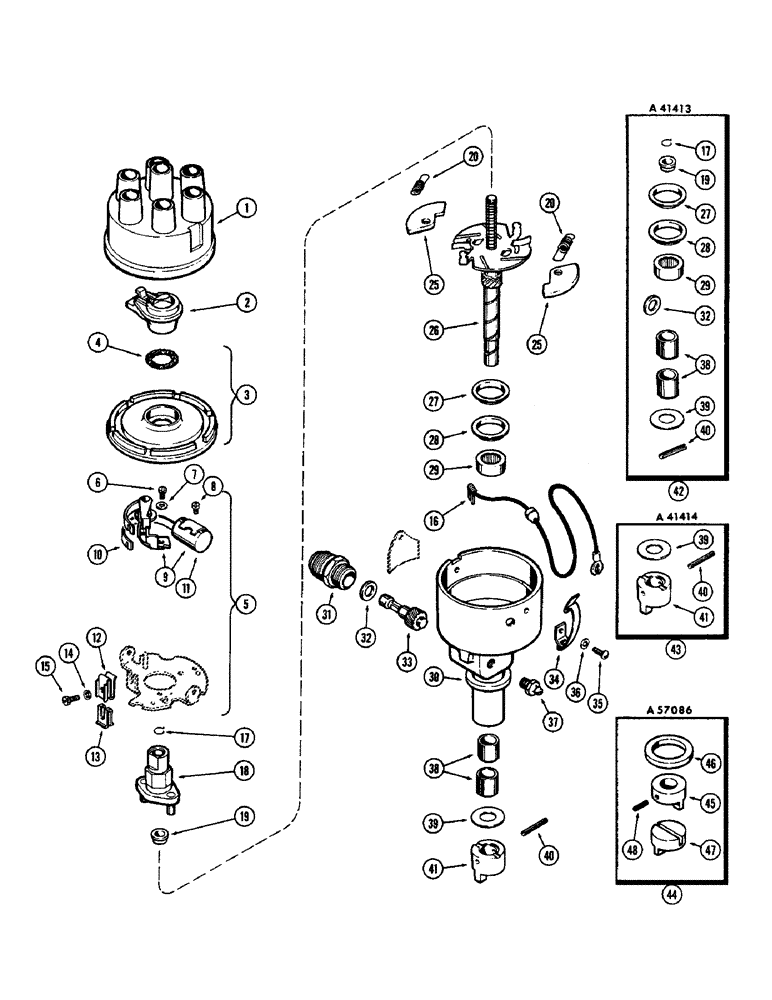

Схема запчастей Case W8B - (063E) - A57082 DISTRIBUTOR, WITH CENTER MOUNTED OIL PUMP (01) - ENGINE

Артикул

Название

Примечание

Количество

A57082

DISTRIBUTOR

ASSY. - ignition (Replaces A24505) (See note)

1шт.

1

A24565

CAP

- distributor

1шт.

2

A24566

ROTOR

- distributor

1шт.

3

A24763

PLATE

ASSY. - seal, distributor

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - seal plate (Order ref. #3)

1шт.

5

A40330

PLATE

ASSY. - breaker

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - breaker contact

1шт.

7

195-509

WASHER,3/16"

- small flat, #8

1шт.

8

169-56

SCREW - mach., #6 x 3/16" N.C. fillister hd.

1шт.

9

A40930

KIT

- points & condenser, breaker

1шт.

10

NSS

NOT SOLD SEPARAT

POINT ASSY. - breaker contact (Order ref. #9)

1шт.

11

NSS

NOT SOLD SEPARAT

CONDENSER - distributor (Order ref. #9)

1шт.

12

NSS

NOT SOLD SEPARAT

CLIP - retaining

1шт.

13

NSS

NOT SOLD SEPARAT

INSULATOR - breaker mounting

1шт.

14

195-506

WASHER,#6

- small flat

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - breaker clip

1шт.

16

A24772

HARNESS

WIRE - primary

1шт.

17

NSS

NOT SOLD SEPARAT

RING - snap, cam retaining (Order ref. #42)

1шт.

18

A24831

PLATE - cam & stop, distr.

1шт.

19

NSS

NOT SOLD SEPARAT

SPACER - cam (Order ref. #42)

1шт.

20

A24835

SET

SPRING KIT - gov. (Set of 2)

1шт.

25

A41388

WEIGHT - governor (Set of 2)

1шт.

26

A41412

SHAFT

- drive, distr.

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - thrust, drive shaft outer (Order ref. #42)

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - thrust, drive shaft inner (Order ref. #42)

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. #42)

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - distributor (Order A57082)

1шт.

31

A24781

HOUSING - tach. dr. shaft w/bushings

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - thrust, tach. drive, (Order ref. #42)

1шт.

33

A24761

SHAFT

- tach. drive w/gear, distr.

1шт.

34

A40329

SPRING

CLAMP - spring & hinge (Set of 2)

1шт.

35

NSS

NOT SOLD SEPARAT

SCREW - mounting, clamp

2шт.

36

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

37

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease (1/4" P.T. str.)

1шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - bearing, distr. (Order ref. #42)

2шт.

39

NSS

NOT SOLD SEPARAT

WASHER - thrust, drv. shaft lower (Order ref. #42 or 43)

1шт.

40

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, (See ref. 42 or 43) 1/8" x 13/16", Slotted

1шт.

41

NSS

NOT SOLD SEPARAT

COUPLING - distr. drive (Order ref. #42)

1шт.

42

A41413

BEARING

REPAIR KIT - drive shaft

1шт.

43

A41414

COUPLING

KIT - distr. drive

1шт.

44

A57086

KIT

- repair, distr. collar

1шт.

45

NSS

NOT SOLD SEPARAT

COLLAR - distr. shaft

1шт.

46

NSS

NOT SOLD SEPARAT

SPACER -, Serial Range: distr.-block

1шт.

47

NSS

NOT SOLD SEPARAT

COUPLING - distr. to oil pump gear

1шт.

48

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

Выбрано товаров: 45
