Артикул
Название
Примечание
Количество
A34978

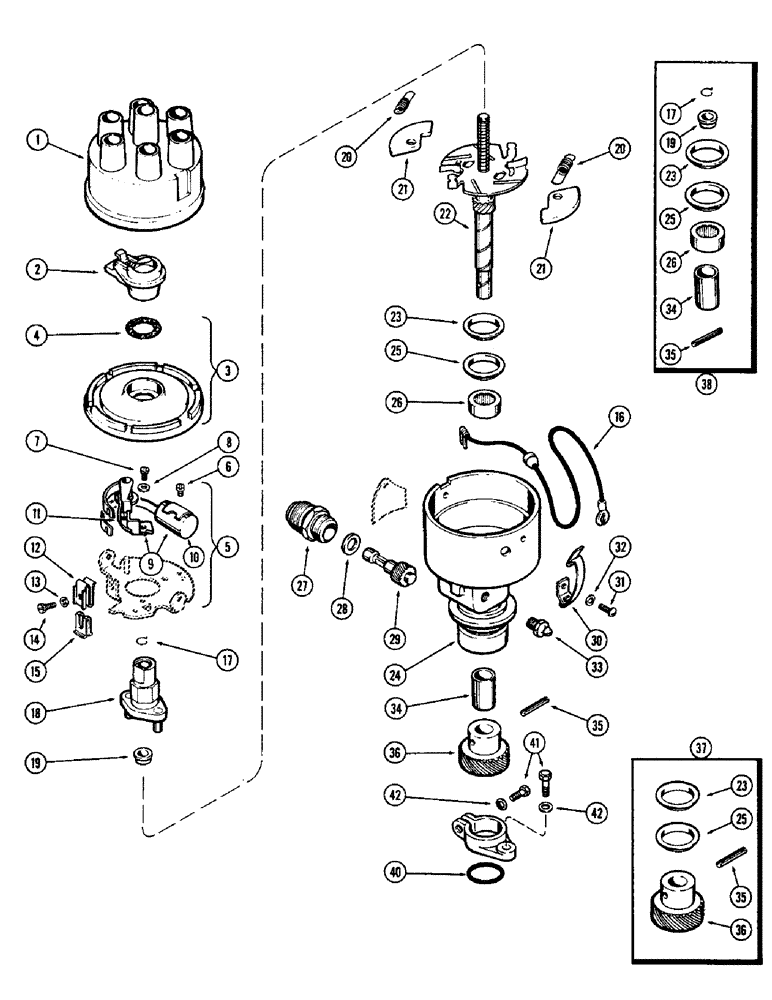

DISTRIBUTOR ASSY. - ignition, Includes: Ref. 1 - 42
1шт.
1
A24565
CAP
- distributor
1шт.
3
A24763
PLATE
ASSY. - seal, distributor, Includes: Ref. 4
1шт.
4
A24764
WASHER
- plate sealing (Felt)
1шт.
5
A40330
PLATE
ASSY. - breaker, Includes: Ref. 6 - 16
1шт.
6
NSS
NOT SOLD SEPARAT
SCREW - breaker contact
1шт.
8
195-509
WASHER,3/16"
- small flat, #8
1шт.
9
A40930
KIT
- points & condenser, breaker, Includes: Ref. 10 and 11
1шт.
10
NSS
NOT SOLD SEPARAT
CONDENSER - distr. (Order ref. #9)
1шт.
11
NSS
NOT SOLD SEPARAT
CONTACT - breaker (Order ref. #9)
1шт.
12
A24774
CLIP
- retaining
1шт.
13
195-506
WASHER,#6
- plain, #6
1шт.
14
A24775
SCREW,0.138"-32 x 1/32"
- spring clamp, #6-32 x 5/8" hex.
1шт.
15
A24773
INSULATOR
- spring clamp
1шт.
16
A24772
HARNESS
WIRE - distr. to coil primary
1шт.
17
A24756
RING - snap, cam retaining
1шт.
18
A24831
PLATE - cam & stop, distr.
1шт.
19
A24757
SPACER - cam
1шт.
20
A24835
SET
SPRING KIT - governor weight (Set of 2)
1шт.
21
A41388
WEIGHT - governor (Set of 2)
1шт.
22
A41387
SHAFT
- drive, distr.
1шт.
23
A24753
WASHER
- drive shaft outer
1шт.
24
NSS
NOT SOLD SEPARAT
BASE ASSY. - distr. (Order A34978)
1шт.
25
A24752
WASHER
- drive shaft inner
1шт.
26
NSS
NOT SOLD SEPARAT
BEARING - needle (Order ref. #38)
1шт.
27
A24781
HOUSING - tach. drive w/bushing
1шт.
28
A24755
WASHER - thrust, tach. drive shaft
1шт.
29
A24761
SHAFT
- tach. drive w/gear, distr.
1шт.
30
A40329
SPRING
CLAMP - spring & hinge (Set of 2)
1шт.
31
NSS
NOT SOLD SEPARAT
SCREW - mounting, clamp
2шт.
32
192-16
LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND
Washer, Lock, #8
2шт.
33
219-6
LUBE NIPPLE,1/4" - 28 NPTF
FITTING - grease, 1/4" -28 taper straight
1шт.
34
NSS
NOT SOLD SEPARAT
BEARING - housing (Bronze) (Order ref. #38)
1шт.
35
138-60
LOCK PIN,1/8" x 15/16", Slotted
PIN, , Gear 1/8" x 15/16", Slotted
1шт.
36
NSS
NOT SOLD SEPARAT
GEAR - drive shaft (Order A40332)
1шт.
37
A40332
GEAR
REPAIR KIT - gear & washer
1шт.
38
A40331
BEARING
REPAIR KIT - thrust washer & bearing
1шт.
40
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
"O" RING - distributor
1шт.
41
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
Distr. to block Hex, 3/8"-16 x 7/8", G5, Full Thd
2шт.
42
95-6
WASHER,3/8"
- plain () 3/8"
2шт.
Выбрано товаров: 42
