Запчасти Case W8B (049A) - A32617 CARBURETOR, (377) SPARK IGNITION ENGINE, USED W/OIL BATH AIR CLEANER (01) - ENGINE

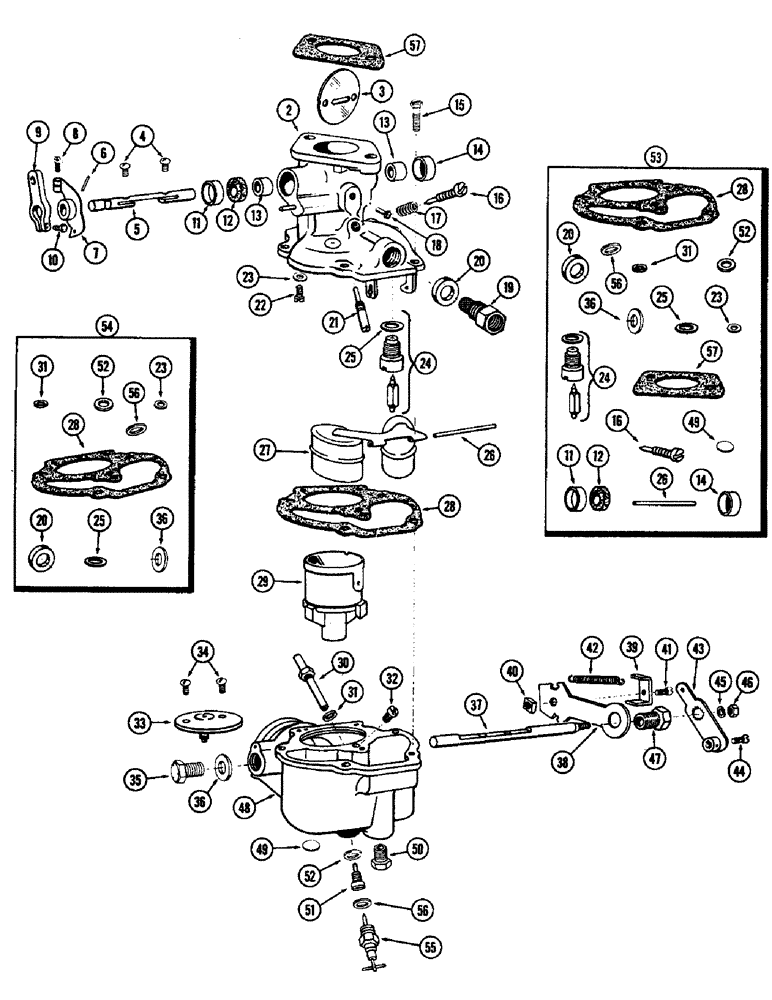

Схема запчастей Case W8B - (049A) - A32617 CARBURETOR, (377) SPARK IGNITION ENGINE, USED W/OIL BATH AIR CLEANER (01) - ENGINE

Артикул

Название

Примечание

Количество

A32617

CARBURETOR - engine fuel, Includes: Ref. 2 - 52

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - throttle

1шт.

3

A41359

PLATE - throttle

1шт.

4

A24888

SCREW - throttle plate

2шт.

5

A40244

SHAFT

- throttle

1шт.

6

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Stop to shaft 3/32" x 7/16", Slotted

1шт.

7

B51508

LEVER - stop, throttle shaft

1шт.

8

B51581

SCREW - stop

1шт.

9

A40010

LEVER - clamp, throttle shaft

1шт.

10

B51584

SCREW - clamp lever

1шт.

11

A40008

WASHER - shaft seal

2шт.

Part of P/N A24905 Repair Kit

1шт.

12

A40007

SEAL

- throttle shaft

2шт.

Part of P/N A24905 Repair Kit

1шт.

13

B51497

BUSHING

- throttle shaft

2шт.

14

A40006

PLUG - shaft hole

1шт.

Part of P/N A24905 Repair Kit

1шт.

15

A24890

SCREW - throttle, Serial Range: body-bowl

6шт.

16

B51263

SCREW

- idle adjusting

1шт.

Part of P/N A24905 Repair Kit

1шт.

17

B51407

SPRING

- idle screw

1шт.

18

B51631

SCREW - Venturi

1шт.

19

B51485

FILTER - plug

1шт.

20

B51614

WASHER

- filter screen

1шт.

Part of P/N A24905 Repair Kit

1шт.

Part of P/N A24904 Gasket Kit

1шт.

21

B51301

JET

- idle

1шт.

22

A24903

JET - economizer

1шт.

23

B51610

WASHER

- economizer jet

1шт.

Part of P/N A24905 Repair Kit

1шт.

Part of P/N A24904 Gasket Kit

1шт.

24

A25577

VALVE

- jet, Includes: Ref. 25

1шт.

Part of P/N A24905 Repair Kit

1шт.

25

B51618

WASHER

- valve seat

1шт.

Part of P/N A24905 Repair Kit

1шт.

Part of P/N A24904 Gasket Kit

1шт.

26

B51429

AXLE

- float

1шт.

Part of P/N A24905 Repair Kit

1шт.

27

A24891

FLOAT

ASSY.

1шт.

28

A24889

GASKET

- throttle, Serial Range: body-bowl

1шт.

Part of P/N A24905 Repair Kit

1шт.

Part of P/N A24904 Gasket Kit

1шт.

29

A24898

VENTURI

1шт.

30

A24900

JET - main discharge

1шт.

31

A24901

WASHER - discharge jet

1шт.

Part of P/N A24905 Repair Kit

1шт.

Part of P/N A24904 Gasket Kit

1шт.

32

A24902

VENT - well

1шт.

33

A24893

PLATE - choke

1шт.

34

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke plate

2шт.

35

B51449

PLUG

- choke shaft hole

1шт.

36

B51618

WASHER

- plug

1шт.

Part of P/N A24905 Repair Kit

1шт.

Part of P/N A24904 Gasket Kit

1шт.

37

A24894

SHAFT - choke

1шт.

38

B51398

BRACKET - choke, Includes: Ref. 39 - 41

1шт.

39

B51402

CLAMP - choke rod

1шт.

40

129-76

SQUARE NUT,#8 - 36

- clamp screw, #10-24 sq.

1шт.

41

B51581

SCREW - clamp

1шт.

42

B51414

SPRING - return

1шт.

43

B51379

LEVER - choke, Includes: Ref. 44

1шт.

44

B51579

SCREW - swivel

1шт.

45

92-3

LOCK WASHER,#10

WASHER, LOCK, , Shaft nut #10

1шт.

46

129-36

NUT,#8-36

- lever to shaft, hex. #8-36

1шт.

47

B51455

SCREW - choke bracket

1шт.

48

A24892

BOWL - fuel, Includes: Ref. 49 - 51

1шт.

49

B51442

FILTER

DISC - drain

1шт.

Part of P/N A24905 Repair Kit

1шт.

50

B51541

PLUG

- drain

1шт.

51

A24899

JET

- main

1шт.

52

B51624

WASHER

- main jet

1шт.

Part of P/N A24905 Repair Kit

1шт.

Part of P/N A24904 Gasket Kit

1шт.

53

A24905

KIT

REPAIR KIT, Includes: Ref. 54

1шт.

54

A24904

KIT

GASKET KIT, Includes: Ref. 20, 23, 25, 28, 31, 36, 52 and 56

1шт.

Part of P/N A24905 Repair Kit

1шт.

55

A24897

JET

ADJUSTMENT ASSY. - main jet, Includes: Ref. 56

1шт.

56

B51614

WASHER

- adjustment assy.

1шт.

Part of P/N A24905 Repair Kit

1шт.

Part of P/N A24904 Gasket Kit

1шт.

57

A27776

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of P/N A24905 Repair Kit

1шт.

Выбрано товаров: 82
