Артикул
Название
Примечание
Количество
A24552

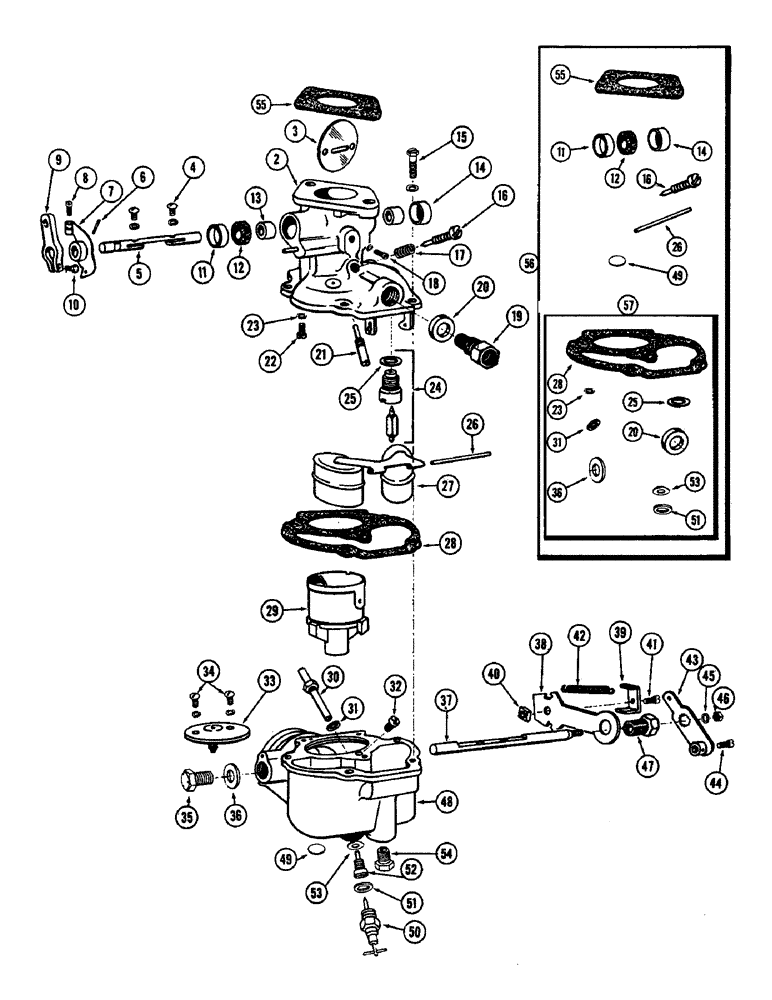

CARBURETOR ASSY. - engine fuel (Not illust.), Includes: Ref. 2 - 55
1шт.
2
NSS
NOT SOLD SEPARAT
THROTTLE - body
1шт.
3
A41359
PLATE - throttle
1шт.
4
A24888
SCREW - throttle, Serial Range: plate-shaft
2шт.
5
A40009
SHAFT - throttle
1шт.
6
138-36
LOCK PIN,3/32" x 7/16", Slotted
PIN, , Stop to shaft 3/32" x 7/16", Slotted
1шт.
138-39
LOCK PIN,3/32" x 5/8", Slotted
PIN, , Clamp to lever shaft 3/32" x 5/8", Slotted
1шт.
7
A24886
LEVER - stop, throttle shaft
1шт.
8
B51581
SCREW - stop
1шт.
9
A40010
LEVER - clamp, throttle shaft
1шт.
10
B51584
SCREW - clamp lever
1шт.
11
B59344
RETAINER - packing washer
1шт.
12
B51534
WASHER
- packing, throttle shaft
1шт.
13
B51497
BUSHING
- throttle shaft
2шт.
14
B51438
PLUG
- shaft hole
1шт.
Part of P/N A24905 Repair Kit
1шт.
15
A24890
SCREW - throttle, Serial Range: body-bowl
6шт.
16
B51263
SCREW
- idle adjusting
1шт.
Part of P/N A24905 Repair Kit
1шт.
17
B51407
SPRING
- idle screw
1шт.
18
B51631
SCREW - Venturi
1шт.
19
A40319
FILTER - plug
1шт.
20
B51614
WASHER
- filter screen
1шт.
21
B51301
JET
- idle
1шт.
22
A24903
JET - economizer
1шт.
23
B51610
WASHER
- economizer jet
1шт.
Part of P/N A24905 Repair Kit
1шт.
Part of P/N A24904 Gasket Kit
1шт.
24
A25577
VALVE
- fuel, Includes: Ref. 25
1шт.
Part of P/N A24905 Repair Kit
1шт.
25
B51618
WASHER
- valve seat
1шт.
26
B51429
AXLE
- float
1шт.
Part of P/N A24905 Repair Kit
1шт.
27
A24891
FLOAT
ASSY.
1шт.
28
A24889
GASKET
- throttle, Serial Range: body-bowl
1шт.
Part of P/N A24905 Repair Kit
1шт.
Part of P/N A24904 Gasket Kit
1шт.
29
A24898
VENTURI
1шт.
30
A24900
JET - main discharge
1шт.
31
A24901
WASHER - discharge jet
1шт.
Part of P/N A24905 Repair Kit
1шт.
Part of P/N A24904 Gasket Kit
1шт.
33
A24902
VENT - well
1шт.
33
A24893
PLATE - choke
1шт.
34
A24896
SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW
- choke, Serial Range: plate-shaft
2шт.
35
B51449
PLUG
- choke shaft hole
1шт.
36
B51618
WASHER
- plug
1шт.
Part of P/N A24905 Repair Kit
1шт.
Part of P/N A24904 Gasket Kit
1шт.
37
A24894
SHAFT - choke
1шт.
38
A24895
BRACKET - choke, Includes: Ref. 39 - 41
1шт.
39
B51402
CLAMP - choke rod
1шт.
40
129-76
SQUARE NUT,#8 - 36
- clamp screw, #10-24 sq.
1шт.
41
B51581
SCREW - clamp
1шт.
42
B51412
SPRING
- return
1шт.
43
B51378
LEVER
- choke, Includes: Ref. 44
1шт.
44
B51579
SCREW - swivel
1шт.
45
92-3
LOCK WASHER,#10
WASHER, LOCK, , Shaft nut #10
1шт.
46
129-36
NUT,#8-36
- lever to shaft, hex. #8-36
1шт.
47
B51455
SCREW - choke bracket
1шт.
48
A24992
THRUST WASHER
BOWL - fuel, Includes: Ref. 49
1шт.
49
B51442
FILTER
DISC - drain
1шт.
Part of P/N A24905 Repair Kit
1шт.
50
A24897
JET
ADJUSTMENT ASSY. - main jet
1шт.
51
B51614
WASHER
- adjustment
1шт.
Part of P/N A24905 Repair Kit
1шт.
Part of P/N A24904 Gasket Kit
1шт.
52
A24899
JET
- main
1шт.
53
B51624
WASHER
- main jet
1шт.
Part of P/N A24905 Repair Kit
1шт.
Part of P/N A24904 Gasket Kit
1шт.
54
B51541
PLUG
- drain
1шт.
55
A27776
GASKET
-, Serial Range: carburetor-manifold
1шт.
Part of P/N A24905 Repair Kit
1шт.
56
A24905
KIT
REPAIR KIT, Includes: Ref. 57
1шт.
57
A24904
KIT
GASKET KIT
1шт.
Part of P/N A24905 Repair Kit
1шт.
Выбрано товаров: 77
