Запчасти Case W8B (040) - ENGINE GASKET KITS, (377) SPARK IGNITION ENGINE (01) - ENGINE

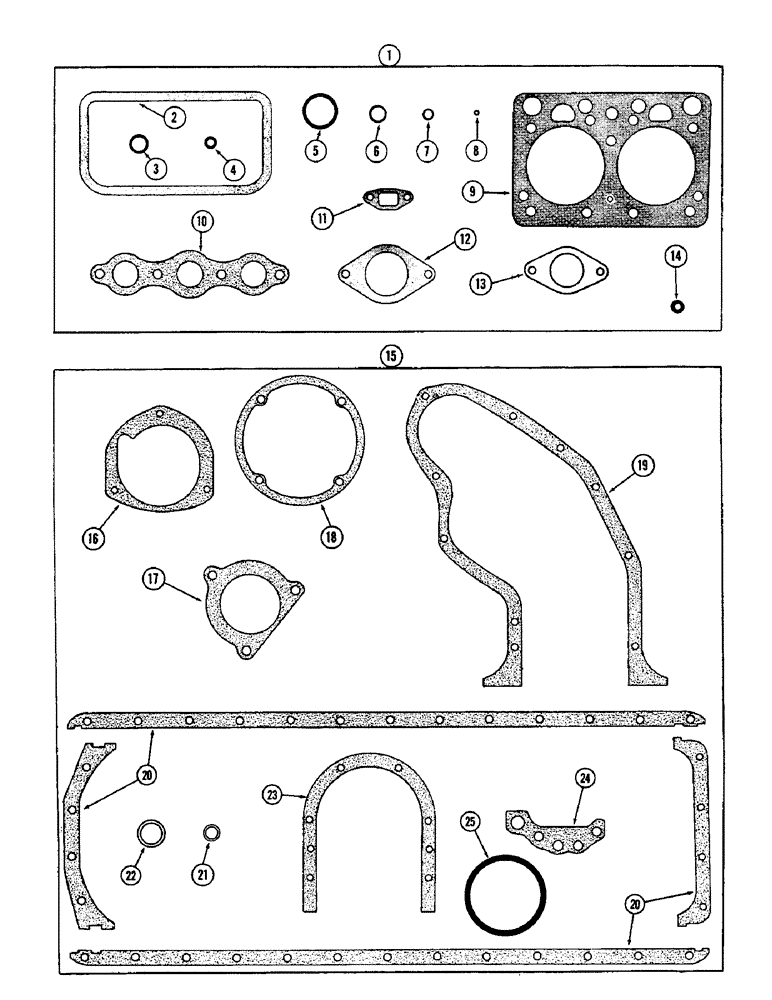

Схема запчастей Case W8B - (040) - ENGINE GASKET KITS, (377) SPARK IGNITION ENGINE (01) - ENGINE

Артикул

Название

Примечание

Количество

1

A24836

GASKET

KIT - valve grind, Includes: Ref. 2 - 14

1шт.

2

A57595

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A27972)

3шт.

3

A23685

GASKET

- blow-by, Serial Range: tube-cover

3шт.

4

A23684

GASKET

GASKET - cyl. head cover stud

6шт.

5

A11423

SEAL

- thermostat

1шт.

6

A7669

RING

"O" RING - cyl. head gasket

6шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft tube

3шт.

8

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil by-pass

3шт.

9

A23118

GASKET

- cylinder head

3шт.

10

A24549

GASKET

- intake and exhaust manifold

3шт.

11

A27905

GASKET

- water manifold

6шт.

12

A11421

GASKET

- thermostat housing

1шт.

13

A27776

GASKET

-, Serial Range: carburetor-manifold

1шт.

14

A10726

SEAL

SHIELD - rubber, intake valve

6шт.

15

A24994

GASKET

KIT - cylinder block (Replaces A24854), Includes: Ref. 16 - 25

1шт.

16

A57596

GASKET

- water pump body (Replaces A27899)

1шт.

17

A27933

GASKET

- starting motor

1шт.

18

A27867

GASKET

- timing gear cover cap (Not used this appl.)

1шт.

19

A33018

GASKET

- timing gear cover

1шт.

20

A15391

GASKET

- set oil pan

1шт.

21

A27927

OIL PAN GASKET SET

- drain plug, oil pan (Used w/A23638 oil pan)

1шт.

22

A34827

GASKET

- drain plug, oil pan (Used w/A34982 oil pan)

1шт.

23

A32830

GASKET

- rear oil seal retainer

1шт.

24

A21084

GASKET

- oil filter, base

1шт.

25

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump shaft hsg. (Not used this appl.)

1шт.

Выбрано товаров: 25
