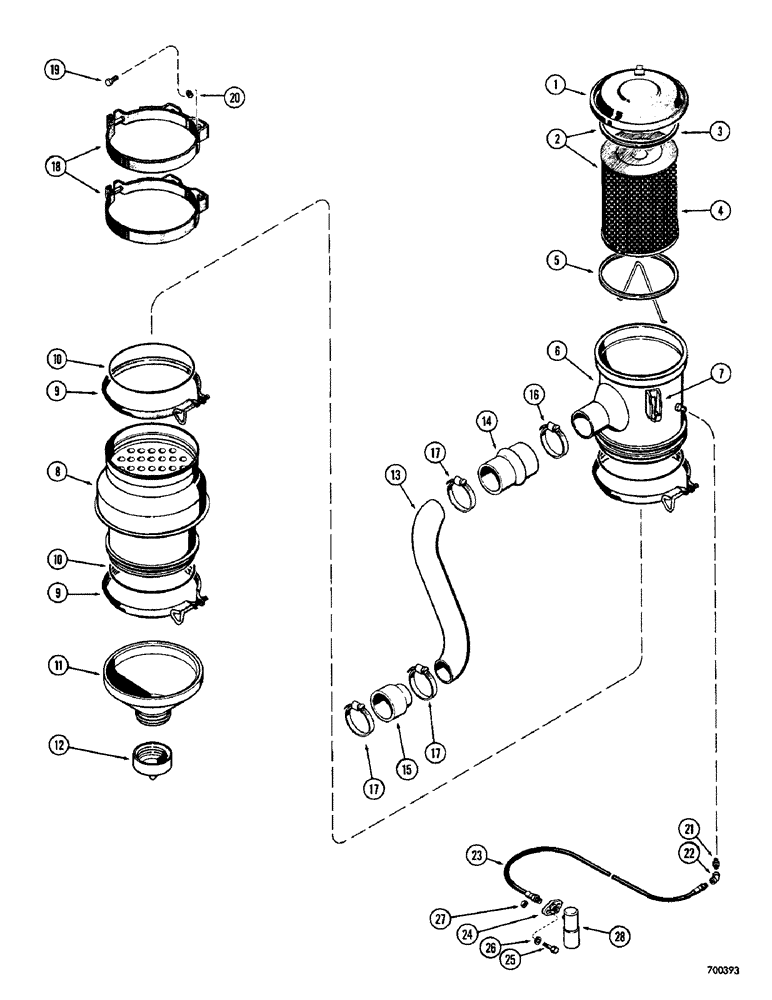

Запчасти Case W8B (039E) - EXTERNAL MOUNTED AIR CLEANER (01) - ENGINE

L10238

AIR CLEANER - external mounted, Includes: Ref. 1 - 12

1шт.

1

L30056

COVER

- air cleaner

1шт.

2

D32625

FILTER, ELEMENT

KIT - filter element, Includes: Ref. 3 and 4

1шт.

3

R21184

GASKET

- cover

1шт.

4

R21176

ELEMENT

- filter

1шт.

5

R21187

GASKET

- filter element

1шт.

6

L30144

BODY - filter, upper

1шт.

7

L30143

CLIP - cover retaining

2шт.

8

L30145

BODY - filter, lower

1шт.

9

R15731

CLAMP

- filter body

2шт.

10

R21183

O-RING

GASKET - body

2шт.

11

L30415

CUP - air cleaner

1шт.

12

L30414

VALVE

- vacuator

1шт.

13

L10301

TUBE - carburetor to air cleaner

1шт.

14

L10303

TUBE NUT

ADAPTER - air, Serial Range: cleaner-tube

1шт.

15

L10239

ADAPTER -, Serial Range: carburetor-hose

1шт.

16

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

1шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

3шт.

18

A16485

CLAMP

- cleaner mounting

2шт.

19

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

20

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

21

L10234

X

FITTING - indicator gauge

1шт.

22

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degrees (1/8" NPT)

1шт.

23

L10233

HOSE - air, Serial Range: cleaner-gauge

1шт.

24

L10235

FLANGE

- gauge mounting

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

25-104

NUT,1/4"-20, G5

2шт.

28

A17652

ELECTRICAL GAUGE

GAUGE - indicator, air cleaner

1шт.

L10683

HOOD SIDE - R.H. (Not illustrated) Used with L10238 air cleaner only

1шт.
