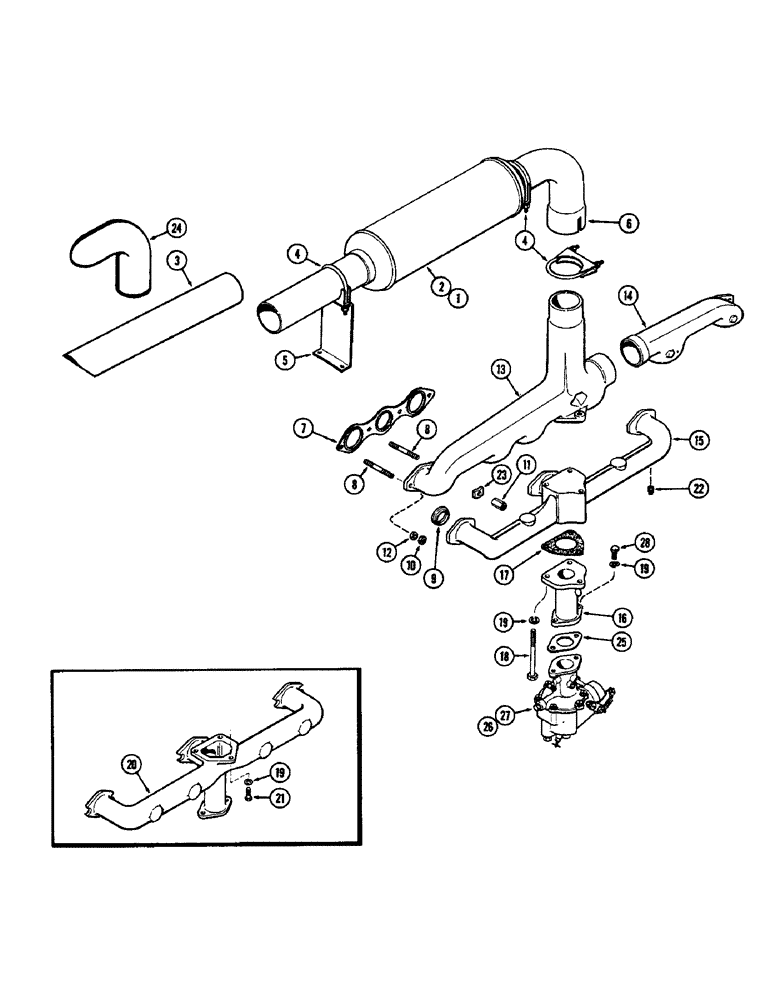

Запчасти Case W8B (038) - MANIFOLDS AND MUFFLER, (377) SPARK IGNITION ENGINE (01) - ENGINE

1

A24103

MUFFLER

- exhaust

1шт.

2

L10224

MUFFLER

- exhaust (Spark arresting)

1шт.

3

L10225

EXHAUST SYSTEM PIPE

PIPE - (Spark arresting muffler only)

1шт.

4

A27115

CLAMP

- muffler

3шт.

5

A19087

BRACKET

- support, muffler rear

1шт.

6

A19102

ELBOW UNION

ELBOW - muffler exhaust stack

1шт.

7

A24549

GASKET

- exhaust and intake manifolds

3шт.

8

A24550

STUD

- exhaust and intake manifolds

12шт.

9

A21634

FERRULE

- intake manifold

3шт.

10

25-107

NUT,7/16"-14, G5

- 7/17" N.C. hex.

6шт.

11

A34166

NUT

- special, manifold stud

6шт.

12

195-29

WASHER,7/16"

- (15/32 x 59/64 x 1/16")

6шт.

13

A24546

MANIFOLD - exhaust, front

1шт.

14

A24547

MANIFOLD - exhaust, rear

1шт.

15

A34673

MANIFOLD - intake (1st used eng. ser. no. 2142563)

1шт.

16

A34674

PIPE, EXHAUST SYSTEM

STACK - intake manifold (1st used eng. ser. no. 2142563)

1шт.

17

A34675

GASKET

- stack to manifold (1st used eng. ser. no. 2142563)

1шт.

18

13-676

CAPSCREW,Hex, 3/8" - 16 x 4 3/4", Gr 5

BOLT, Hex, 3/8"-16 x 4 3/4", G5

3шт.

19

92-6

LOCK WASHER,3/8"

5шт.

20

A24548

X

MANIFOLD - intake (1 piece) (Used prior to eng. ser. no. 2142563) (Order 1-A34673, 1-A34674 & 1-A34675)

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

22

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, 3/8" sq. hd.

1шт.

23

A57382

CLAMP

- exhaust and intake manifolds

6шт.

24

A19954

ELBOW UNION

ELBOW - top of muffler (w/back hoe)

1шт.

25

A27776

GASKET

- carb. to intake manifold

1шт.

26

A24552

CARBURETOR - (w/dry type air cleaner) (See Figure 48)

1шт.

27

A32617

CARBURETOR - (w/oil bath air cleaner) (See Figure 49A)

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.
