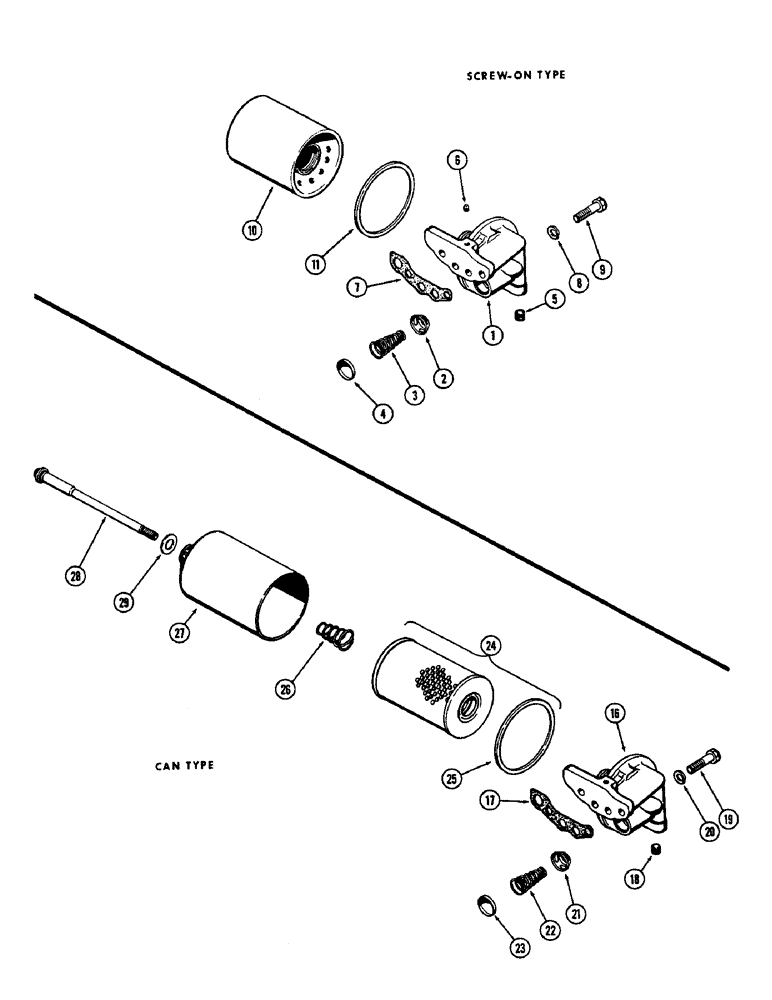

Запчасти Case W8B (037A) - OIL FILTER, (377) SPARK IGNITION ENGINE, SCREW-ON TYPE, 1ST USED ENG. SN. 2207574 (01) - ENGINE

A57849

BASE

ASSY. - filter, engine oil, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - filter (Order A57849)

1шт.

2

A21090

VALVE

- relief

1шт.

3

A21091

VALVE SPRING

SPRING - relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve

1шт.

5

221-1842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - pipe, 3/8" P.T. socket hd.

1шт.

6

221-1041

PLUG

- pipe, 1/8" P.T. slotted

1шт.

7

A21084

GASKET

-, Serial Range: base-block

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Base Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

A41725

FILTER, ENGINE OIL

FILTER KIT - engine oil, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - oil (Order A41725)

1шт.

11

A57858

GASKET

- filter to base (4-3/4 x 5-3/16 x 13/64")

1шт.

16

A23474

BASE

- oil filter, can type used prior to engine ser. no. 2207574

1шт.

17

A21084

GASKET

- base to block, can type used prior to engine ser. no. 2207574

1шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T. socket hd.), can type used prior to engine ser. no. 2207574

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

can type used prior to engine S/N 2207574 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

can type used prior to engine serial no. 2207574 1/2"

2шт.

21

A21090

VALVE

- relief, can type used prior to engine ser. no. 2207574

1шт.

22

A21091

VALVE SPRING

SPRING - relief valve, can type used prior to engine ser. no. 2207574

1шт.

23

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve, can type used prior to engine ser. no. 2207574

1шт.

24

A20822

ENGINE OIL FILTER

ELEMENT ASSY. - filter, w/gasket, can type used prior to engine ser. no. 2207574, Includes: Ref. 25

1шт.

25

A20429

GASKET

- element to base (4-13/16 x 5-13/64 x 3/32"), can type used prior to engine ser. no. 2207574

1шт.

26

A20427

VALVE SPRING

SPRING - element, can type used prior to engine ser. no. 2207574

1шт.

27

A20824

SHELL

- filter, can type used prior to engine ser. no. 2207574

1шт.

28

A20825

PIPE

- stand, can type used prior to engine ser. no. 2207574

1шт.

29

A20426

GASKET

- stand pipe, can type used prior to engine ser. no. 2207574

1шт.
