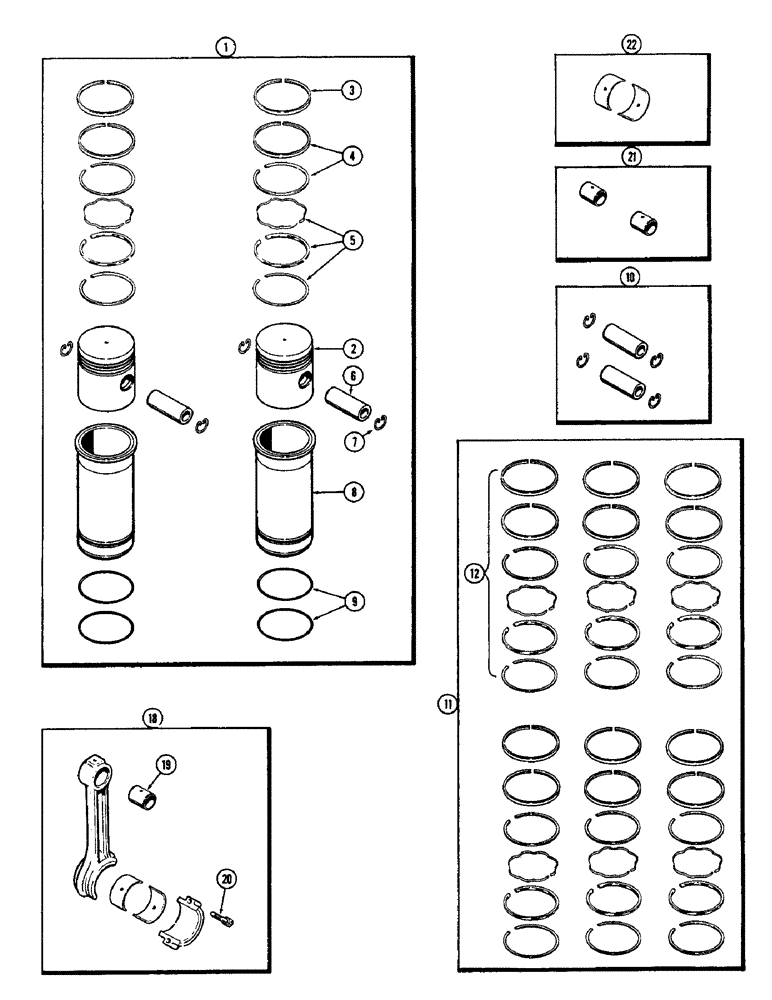

Запчасти Case W8B (034) - PISTON ASSEMBLY AND CONNECTING RODS, (377) SPARK IGNITION ENGINE (01) - ENGINE

1

A40356

KIT

PISTON & SLEEVE KIT - matched set of 2, Includes: Ref. 2 - 9

3шт.

2

A33536

PISTON

- aluminum (4" dia.)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - piston, top (Order ref. 11 or 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - piston, 2nd & 3rd groove (Order ref. 11 or 12)

4шт.

5

NSS

NOT SOLD SEPARAT

RING - piston, oil control (Order ref. 11 or 12)

1шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

2шт.

7

A27844

RING

- retainer, piston pin (See ref. 10)

4шт.

8

A23657

SLEEVE

- cylinder

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing (4-1/4 x 4-1/2 x 1/8")

4шт.

10

A21723

PIN

KIT - piston (Set of 2 pins and 4 retainers)

3шт.

11

A40439

PISTON RING SET

RING KIT - (Re-ring 6 pistons), Includes: Ref. 12

1шт.

12

A40366

SET OF RINGS

RING KIT - (Re-ring 1 piston)

6шт.

18

A28657

ROD, CONNECTING

ROD ASSY. - connecting, Includes: Ref. 19 and 20

6шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref.21)

1шт.

20

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

SCREW - cap, connecting rod (1/2" x 2-3/16" N.F.)

2шт.

21

A21721

BUSHING

KIT - piston pin (Set of 2)

3шт.

22

A20393

LINING

LINER - conn. rod brg. (Std size)

6шт.

22

A20569

JOURNAL

LINER - conn. rod brg. (.002" undersize)

6шт.

22

A20571

BEARING LINER

LINER - conn. rod brg. (.010" undersize)

6шт.

22

A20573

KIT

LINER - conn. rod brg. (.020" undersize)

6шт.

22

A20576

LINING

LINER - conn. rod brg. (.030" undersize)

6шт.
