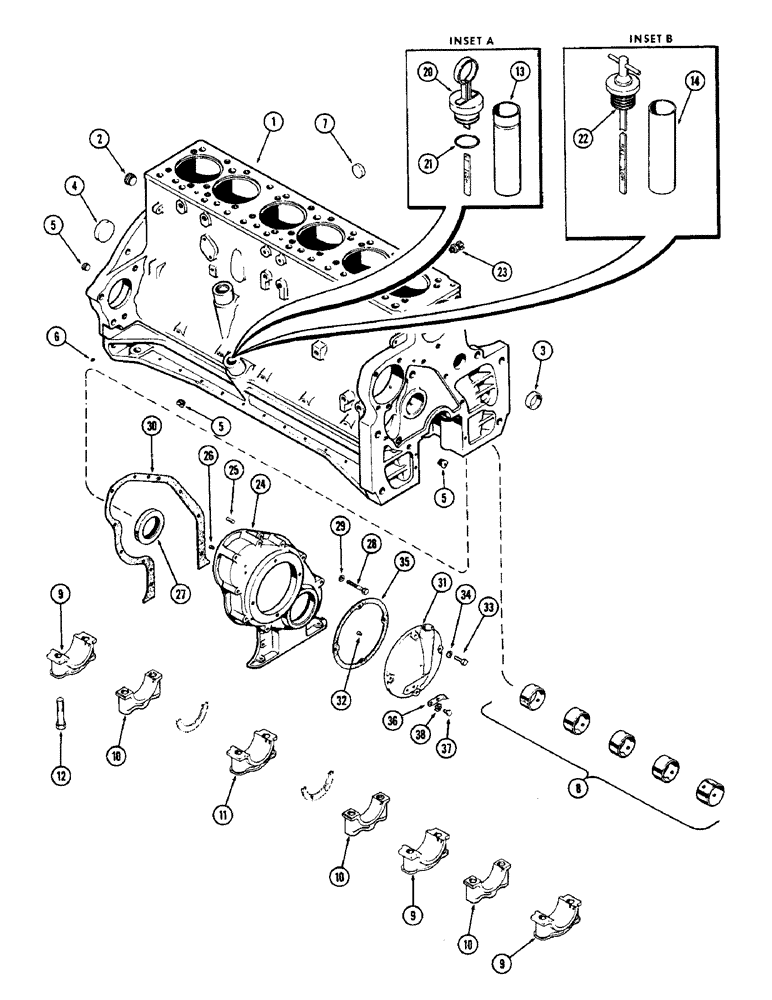

Запчасти Case W8B (031A) - CYLINDER BLOCK ASSEMBLY, (377) SPARK IGNITION ENGINE, USED PRIOR TO ENG. SN. 2173890 (01) - ENGINE

A40436

BLOCK ASSY. - short (Includes stripped block, camshaft, crankshaft & brgs., timing gears, piston assy., connecting rods & brgs. & oil pump assy.) (Casting no. A24960), Includes: Ref. 1 - 14

1шт.

1

A24542

BLOCK ASSY. - stripped (Casting no. 24960) (Order A41222), Includes: Ref. 2 - 14

1шт.

2

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - water gallery, rear (1" P.T., sckt. hd.)

1шт.

3

41-1628

PLUG,Cup, 1 3/4", Stainless

- water gallery, front (1-3/4" cup type)

1шт.

4

A24361

PLUG

- rear camshaft hole (2-3/8" cup type)

1шт.

5

221-1843

PLUG

- 3/8" P.T. socket hd.

6шт.

6

221-41

PLUG

- 1/8" P.T. slotted hd.

4шт.

7

41-1622

PLUG,Cup, 1 3/8", Stainless

- left side of block (1-3/8" cup type)

1шт.

8

A23544

BUSHING

SET - camshaft

1шт.

9

A24941

CAP

- crankshaft bearing, wide

3шт.

10

A24942

CYLINDER END CAP

CAP - crankshaft bearing, narrow

3шт.

11

A24943

CAP

- crankshaft bearing, thrust

1шт.

12

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- bearing cap (5/8 x 3-1/4" N.C. spec.)

14шт.

13

A34540

TUBE

SOCKET - oil level gauge (See inset A) (1st used eng. ser. no. 2141473)

1шт.

14

A20714

X

SOCKET - oil level gauge (See inset B) (Used prior to eng. ser. no. 2141473)

1шт.

20

A20739

GAUGE

ASSY. - oil level (See inset A) (1st used eng. ser. no. 2141473)

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - (3/4 x 1 x 1/8")

2шт.

22

A20739

GAUGE

- oil level (See inset B) (Used prior to eng. ser. no. 2141473)

1шт.

23

A23656

COCK, DRAIN

VALVE - water drain

1шт.

24

A20703

COVER ASSY. - timing gear, Includes: Ref. 25 - 27

1шт.

25

A27840

PIN

- dowel, cover to block (5/16 x 3/4")

2шт.

26

A27869

BUTTON - thrust

1шт.

27

A57342

SEAL

- oil (2-5/8 x 3-5/8 x 1/2") (Replaces A23433)

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

28

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex.

7шт.

29

92-6

LOCK WASHER,3/8"

9шт.

30

A33018

GASKET

- timing gear cover

1шт.

31

A20833

CAP ASSY. - timing gear cover, Includes: Ref. 32

1шт.

32

A27869

BUTTON - thrust

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

A27867

GASKET

-, Serial Range: cap-cover

1шт.

36

A28218

POINTER - timing indicator

1шт.

37

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

38

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - 1/4" int.-ext. Shakeproof

2шт.
