Запчасти Case W8B (028) - CYLINDER HEAD AND COVER, (377) SPARK IGNITION ENGINE (01) - ENGINE

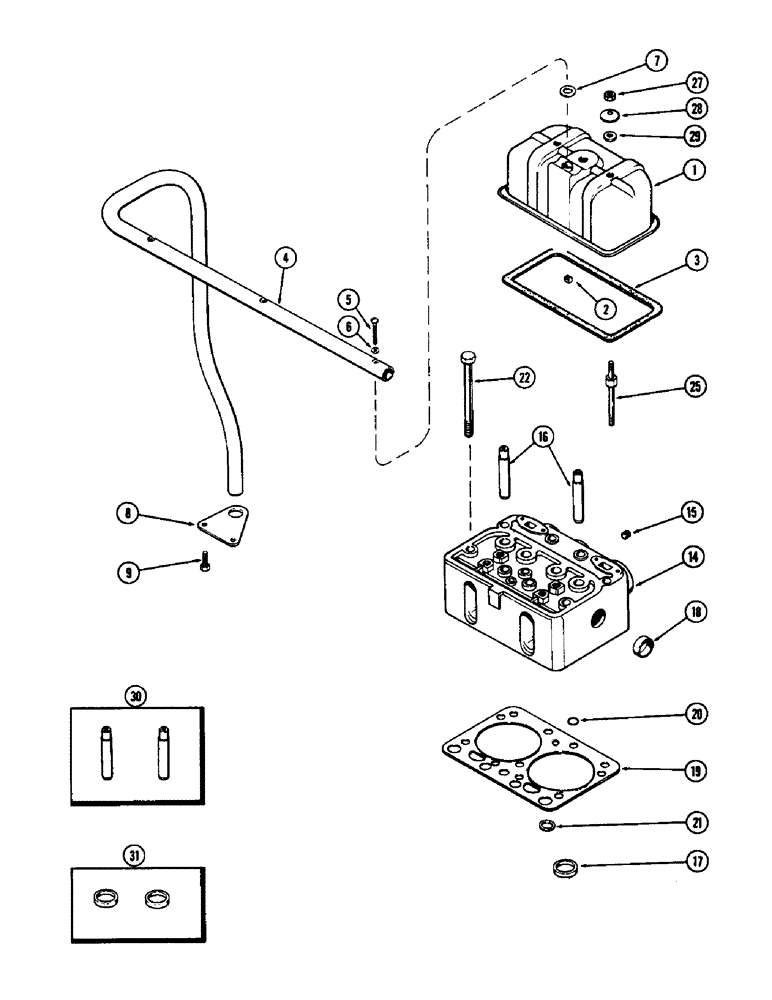

Схема запчастей Case W8B - (028) - CYLINDER HEAD AND COVER, (377) SPARK IGNITION ENGINE (01) - ENGINE

Артикул

Название

Примечание

Количество

1

A23681

COVER ASSY

. - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube (1/4" N.C. speed)

1шт.

3

A57595

CYLINDER HEAD GASKET

-, Serial Range: cover-head

3шт.

4

A24184

TUBE

- breather

1шт.

5

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- breather tube, 1/4 x 2-1/4" N.C. rd. hd.

3шт.

6

A34133

GASKET

- screw to tube (9/32 x 1/2 x 3/64" fiber)

3шт.

7

A23685

GASKET

- tube to cover (11/16 x 1-1/16 x 1/16" rubber)

3шт.

8

A23686

BRACKET

- breather tube (On oil pan)

1шт.

9

A9936

SCREW - lock, bracket (3/8 x 1-1/8" N.C. hex.)

2шт.

14

A24544

HEAD (CYLINDER)

HEAD ASSY. - cylinder (Casting A24543), Includes: Ref. 15 - 18

3шт.

15

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Side Hex Soc, 1/4"-18 NPTF

2шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order ref. 30)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 31)

2шт.

18

A34124

PLUG,Cup, 1 5/8", Stainless

- front & rear (1-41/64" cup type)

2шт.

19

A23118

GASKET

-, Serial Range: head-block

3шт.

20

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

3шт.

21

A7669

RING

- gasket, water passage (7/8 x 1-3/32 x 5/64")

6шт.

22

A23355

BOLT

- head to block (9/16 x 6" N.C. hex.)

27шт.

25

A57990

STUD

- bracket & cover (w/N.C. top thread and 3-3/4" bottom length) (Do not use w/ref. 18)

6шт.

25

A57458

STUD

- bracket & cover (w/N.F. top thread and 3-3/4" bottom length) (Order A57990 & 25-107)

6шт.

25

A28124

STUD - bracket & cover (w/N.F. top thread and 3-3/16" bottom length) (Order A57990 & 25-107)

6шт.

27

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex. (Use w/A28124 or A57458)

6шт.

27

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex. (Use w/A57990)

6шт.

28

A23683

WASHER

- dished, cover nut

6шт.

29

A23684

GASKET

WASHER - rubber, cover nut (15/32 x 7/8 x 1/8")

6шт.

30

A21673

GUIDE

S - valve stem (Set of 2)

6шт.

13

A33453

KIT

INSERTS - exhaust valve seat (Set of 2)

3шт.

Выбрано товаров: 27
