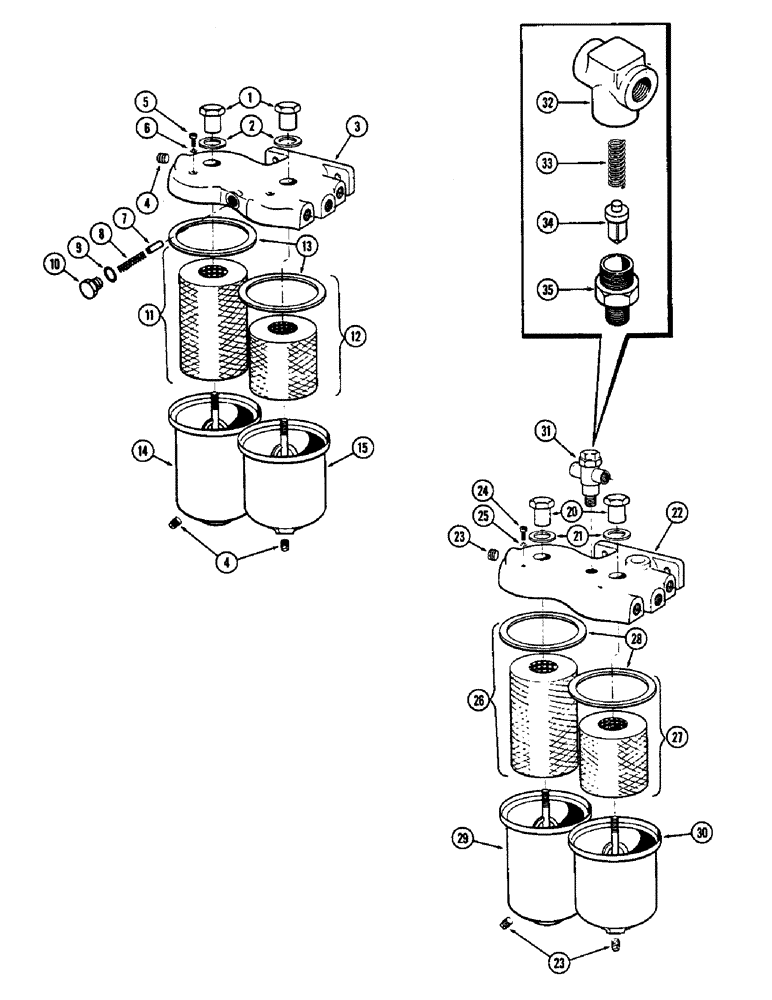

Запчасти Case W8B (020) - A40435 FILTER, (401) DIESEL ENGINE, USED ENG. SN 2095453 THRU 2205482 (01) - ENGINE

A40435

FILTER

ASSY. - 1st & 2nd stage, Includes: Ref. 1 - 15

1шт.

1

A21131

NUT

- filter, Serial Range: body-head

2шт.

2

A28055

GASKET

-, Serial Range: nut-head

2шт.

3

A24915

HEAD - filter mounting

1шт.

4

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd.

3шт.

5

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head

2шт.

6

A20662

GASKET

- bleed screw

2шт.

7

A24917

PLUNGER

- overflow

1шт.

8

A24918

SPRING

- plunger

1шт.

9

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug, overflow regulator

1шт.

10

A24916

PLUG

- overflow regulator

1шт.

11

A21141

FILTER, ELEMENT

ELEMENT KIT - 1st stage, Includes: Ref. 13

1шт.

12

A7627

FILTER, ELEMENT

ELEMENT KIT - 2nd stage, Includes: Ref. 13

1шт.

13

A28056

GASKET

- filter, Serial Range: body-head

2шт.

14

A21129

BODY

- 1st stage filter

1шт.

15

A21132

BODY

- 2nd stagr filter

1шт.

A23690

SHAFT LOCK

FILTER ASSY. - 1st & 2nd stage, Includes: Ref. 20 - 35

1шт.

20

A21131

NUT

- filter body to head, A23690 filter used prior to engine ser. no. 2095453

2шт.

21

A28055

GASKET

- nut to head, A23690 filter used prior to engine ser. no. 2095453

2шт.

22

A21077

FILTER HEAD

HEAD - filter mounting, A23690 filter used prior to engine ser. no. 2095453

1шт.

23

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd., A23690 filter used prior to engine ser. no. 2095453

3шт.

24

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head, A23690 filter used prior to engine ser. no. 2095453

2шт.

25

A20662

GASKET

- bleed screw, A23690 filter used prior to engine ser. no. 2095453

2шт.

26

A21141

FILTER, ELEMENT

ELEMENT KIT - 1st stage (Incl. ref. 28), A23690 filter used prior to engine ser. no. 2095453

1шт.

27

A7627

FILTER, ELEMENT

ELEMENT KIT - 2nd stage (Incl ref. 28), A23690 filter used prior to engine ser. no. 2095453, Includes: Ref. 28

1шт.

28

A28056

GASKET

- filter body to head, A23690 filter used prior to engine ser. no. 2095453

2шт.

29

A21129

BODY

- 1st stage filter, A23690 filter used prior to engine ser. no. 2095453

1шт.

30

A21132

BODY

- 2nd stage filter, A23690 filter used prior to engine ser. no. 2095453

1шт.

31

A20637

LOCK VALVE

VALVE ASSY. - relief, A23690 filter used prior to engine ser. no. 2095453, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - relief valve, A23690 filter used prior to engine ser. no. 2095453

1шт.

33

A41003

SPRING - overflow valve, A23690 filter used prior to engine ser. no. 2095453

1шт.

34

A41321

INSULATOR

VALVE - overflow, A23690 filter used prior to engine ser. no. 2095453

1шт.

35

NSS

NOT SOLD SEPARAT

ADAPTER - relief valve, A23690 filter used prior to engine ser. no. 2095453

1шт.
