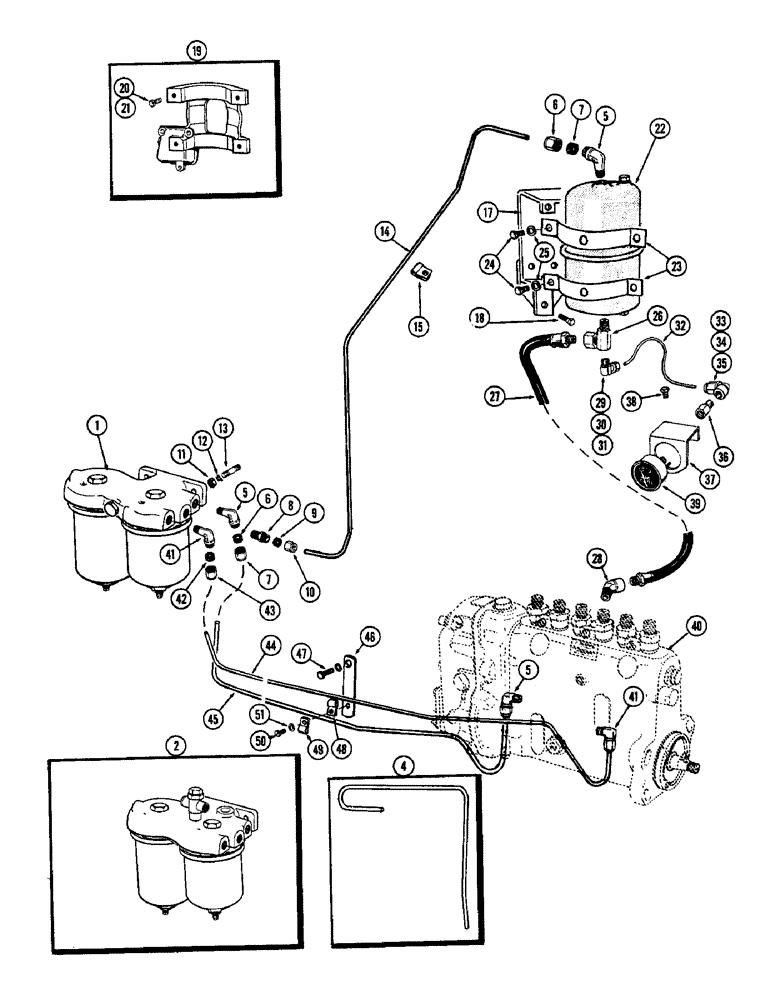

Запчасти Case W8B (018) - FUEL INJECTION FILTER SYSTEM, (401) DIESEL ENG., 3 STAGE FILTERING SYSTEM, USED TO ENG. SN. 2205483 (01) - ENGINE

1

A40435

FILTER

ASSY. - 1st & 2nd stage (See Figure 20) (1st used eng. ser. no. 2095453)

1шт.

2

A23690

SHAFT LOCK

FILTER ASSY. - 1st & 2nd stage (See Figure 20) (Used prior to eng. ser. no. 2095453)

1шт.

4

A20691

TUBE - leak-off, #6 injector (Used prior to eng. ser. no. 2090853)

1шт.

5

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube x 1/4" P.T., Includes: Ref. 6 and 7

3шт.

6

222-103

SLEEVE,5/16" Tube

1шт.

7

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

8

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - 5/16 tube x 1/4" P.T., Includes: Ref. 9 and 10

2шт.

9

222-103

SLEEVE,5/16" Tube

1шт.

10

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

A26554

STUD - filter, Serial Range: head-block

2шт.

14

A22184

TUBE

- second stage to final filter

1шт.

15

A7922

CLIP

- final filter tube

1шт.

17

A33617

BRACKET - final filter (1st used eng. ser. no. 2095635)

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

18

175-439

SCREW - (3/8 x 3/4" N.C. ph. truss. hd. mach.)

1шт.

19

A22183

BRACKET - final filter (Used prior to eng. ser. no. 2095635)

1шт.

20

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N.C. hex. hd.

2шт.

21

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

A27983

FILTER

- final stage

1шт.

23

A21144

CLAMP

- final filter

2шт.

24

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

A20539

FITTING

UNION - adapter, gauge tube

1шт.

27

A20538

FUEL HOSE,0.38" ID x 8.50"

Final filter to fuel pump 0.38" ID x 8.50"

1шт.

28

217-16

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 1/4" P.T. brass 90 degrees

1шт.

29

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/8" tube x 1/8" P.T., Includes: Ref. 30 and 31

1шт.

30

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

31

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

32

A9364

TUBE

- pressure, Serial Range: gauge-filter

1шт.

33

222-53

ELBOW,3/8"-24 x 1/8 NPTF

ASSY. - 1/8" tube x 1/8" P.T., Includes: Ref. 34 and 35

1шт.

34

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

35

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

36

A28061

FITTING

SNUBBER -, Serial Range: gauge-elbow

1шт.

37

A57077

BRACKET

- fuel pressure gauge (Replaces A14498)

1шт.

38

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

39

A8101

GAUGE

- fuel pressure (Replaces A11471)

1шт.

40

A24533

FUEL INJECTION PUMP

PUMP - fuel injection (For repairs see Figure 21A)

1шт.

41

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube x 1/4" P.T., Includes: Ref. 42 and 43

2шт.

42

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

43

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

44

A20693

TUBE

- filter to pump (3/8" O.D.)

1шт.

45

A20531

TUBE

- pump to filter (5/16" O.D.)

1шт.

46

A20537

SUPPORT - tube, Serial Range: filter-pump

1шт.

47

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

48

A20688

CLIP

- for A20531

1шт.

49

A27814

X

CLIP - for A20693 tube

1шт.

50

72-46

SCREW - 1/4" x 3/8" N.F. fillister hd.

1шт.

51

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - 1/4" int. Shakeproof

1шт.
