Запчасти Case W8B (016) - ENGINE GASKET KITS, (401) DIESEL ENGINE (01) - ENGINE

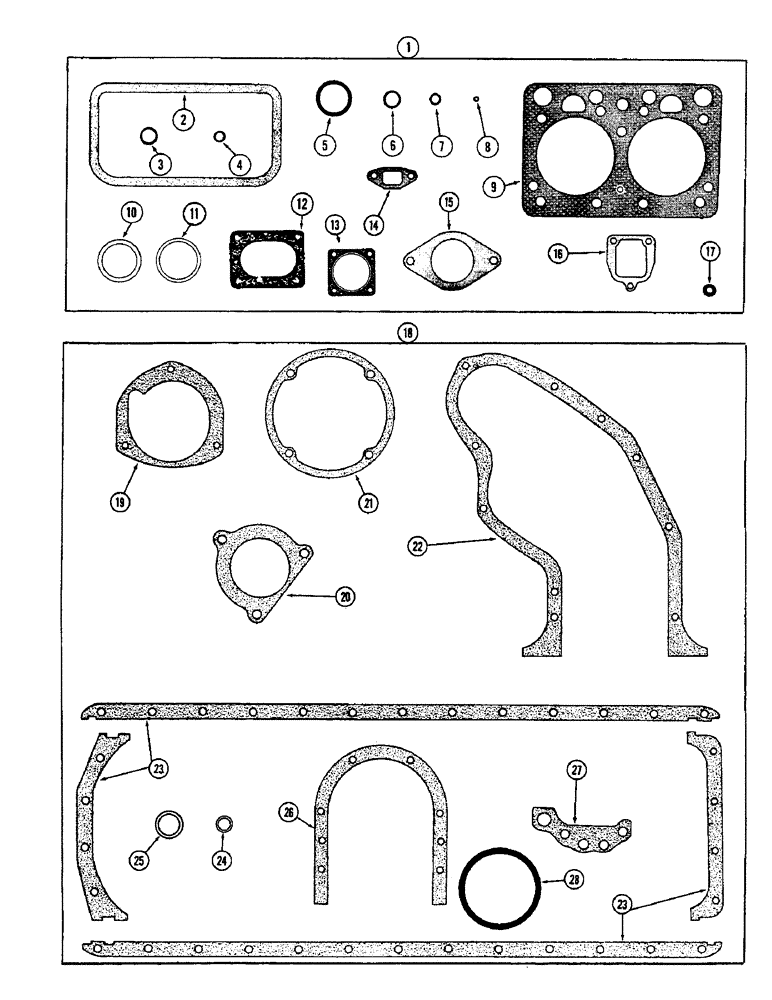

Схема запчастей Case W8B - (016) - ENGINE GASKET KITS, (401) DIESEL ENGINE (01) - ENGINE

Артикул

Название

Примечание

Количество

1

A24851

GASKET

KIT - valve grind, Includes: Ref. 2 - 17

1шт.

2

A57595

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A27972)

3шт.

3

A23685

GASKET

- blow-by, Serial Range: tube-cover

3шт.

4

A23684

GASKET

GASKET - cyl. head cover stud

6шт.

5

A11423

SEAL

- thermostat

1шт.

6

A7669

RING

"O" RING - cyl. hd. gasket

6шт.

7

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft tube

3шт.

8

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil by-pass

3шт.

9

A23118

GASKET

- cylinder head

3шт.

10

A11888

MANIFOLD GASKET

- intake manifold

3шт.

11

A11889

GASKET

- exhaust manifold

6шт.

12

A20678

GASKET

- intake manifold, for A16578 elbow

1шт.

13

A20915

GASKET

- intake manifold, for A20914 elbow

1шт.

14

A27905

GASKET

- water manifold

6шт.

15

A11421

GASKET

- thermostat housing

1шт.

16

A22939

GASKET

- decompressor control housing

3шт.

17

A10726

SEAL

SHIELD - rubber, intake valve

6шт.

18

A24994

GASKET

KIT - cylinder block (Replaces A24854), Includes: Ref. 19 - 28

1шт.

19

A57596

GASKET

- water pump body (Replaces A27899)

1шт.

20

A27933

GASKET

- starting motor

1шт.

21

A27867

GASKET

- timing cover cap (Gas only)

1шт.

22

A33018

GASKET

- timing gear cover

1шт.

23

A15391

GASKET

SET - oil pan

1шт.

24

A27927

OIL PAN GASKET SET

- drain plug, oil pan (Not used this appl.)

1шт.

25

A34827

GASKET

- drain plug, oil pan

1шт.

26

A32830

GASKET

- rear oil seal retainer

1шт.

27

A21084

GASKET

- oil filter base

1шт.

28

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump shaft hsg. (Not used this appl.)

1шт.

Выбрано товаров: 28
