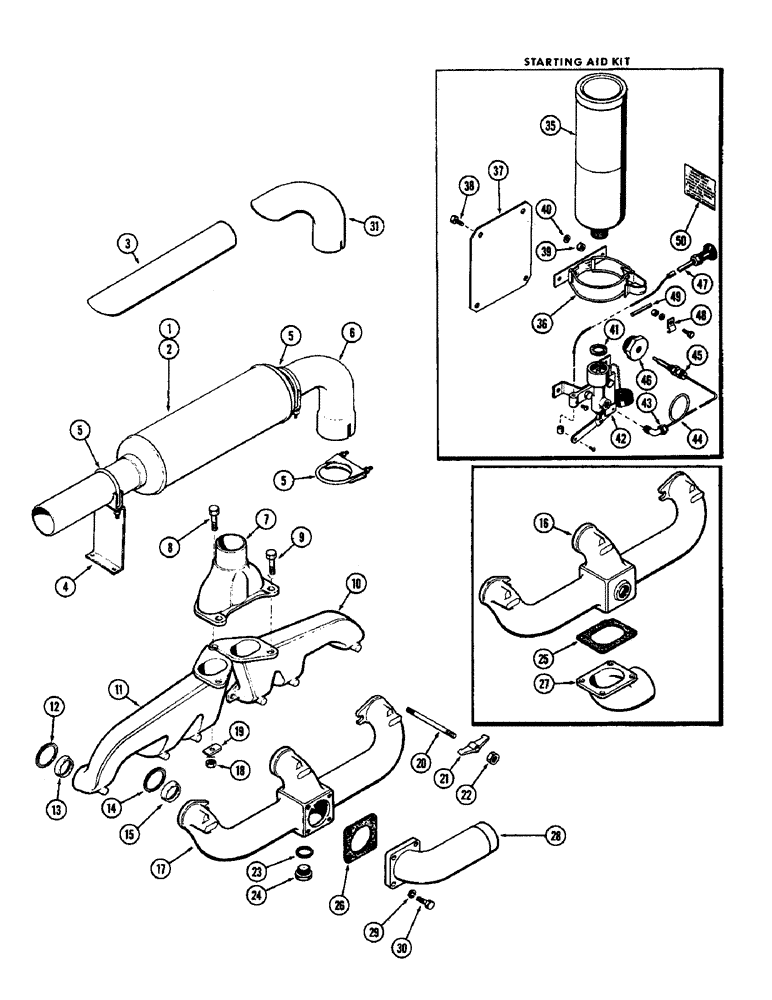

Запчасти Case W8B (014) - MANIFOLDS AND MUFFLER, (401) DIESEL ENGINE, STARTING AID KIT (01) - ENGINE

1

A24103

MUFFLER

- exhaust

1шт.

2

L10224

MUFFLER

- exhaust (Spark arresting)

1шт.

3

L10225

EXHAUST SYSTEM PIPE

PIPE - (Spark arresting muffler only)

1шт.

4

A19087

BRACKET

- support, muffler, rear

1шт.

5

A27115

CLAMP

- exhaust muffler

3шт.

6

A19102

ELBOW UNION

ELBOW -, Serial Range: muffler-manifold

1шт.

7

A11372

ELBOW

HOUSING - exhaust stack

1шт.

8

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.F. hex.

1шт.

9

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" N.F. hex.

2шт.

10

A20743

MANIFOLD

- exhaust, rear (Order 1-A24979 & 1-A24980)

1шт.

11

A20742

X

MANIFOLD - exhaust, front (Order 1-A24979 & 1-A24980)

1шт.

12

A11889

GASKET

- exhaust manifolds

6шт.

13

A21648

CAP

FERRULE - exhaust manifolds

6шт.

14

A11888

MANIFOLD GASKET

- intake manifold

3шт.

15

A21383

CAP

FERRULE - intake manifold

3шт.

16

A20700

MANIFOLD - intake for bottom opening elbow

1шт.

17

A20913

MANIFOLD - intake, for side opening elbow

1шт.

18

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

3шт.

19

A27868

CLAMP

- exhaust stack housing

1шт.

20

A27911

STUD

- exhaust and intake manifolds

6шт.

21

A24368

CLAMP

- exhaust and intake manifolds

6шт.

22

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

6шт.

23

A20916

MANIFOLD GASKET

GASKET - intake manifold plug

1шт.

24

A20917

PLUG

- intake manifold

1шт.

25

A20678

GASKET

- intake manifold, for A16578 elbow

1шт.

26

A20915

GASKET

- intake manifold, for A20914 elbow

1шт.

27

A16578

ELBOW - air intake, for A20700 manifold

1шт.

28

A20914

ELBOW - air intake, for A20913 manifold

1шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

31

A19954

ELBOW UNION

ELBOW - top of muffler (w/backhoe)

1шт.

35

NS

NOT SERVICED

CYLINDER - starting fuel (Quick Start #LP 657) (NOTE: See page 250 for Quick Start distributor & service outlets), starting aid kit

1шт.

36

L30183

BRACKET

CLAMP ASSY. - cylinder, starting aid kit

1шт.

37

L10282

PLATE - mounting, starting aid kit

1шт.

38

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Starting aid kit Hex, 1/4"-20 x 1 1/4", G5

4шт.

39

25-104

NUT,1/4"-20, G5

Starting aid kit 1/4"-20, G5

4шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Starting aid kit 1/4"

4шт.

41

L30188

GASKET

- cylinder to valve, starting aid kit

1шт.

42

L30180

BODY

VALVE ASSY. - starting fuel, starting aid kit

1шт.

43

L30181

ELBOW - injection tube, starting aid kit

1шт.

44

L30319

TUBE - injection (24"), starting aid kit

1шт.

45

L30185

FITTING

- tube to manifold, starting aid kit

1шт.

46

L10283

PLUG

- adapter, fitting to manifold, starting aid kit

1шт.

47

L30182

CABLE - valve actuator (60"), starting aid kit

1шт.

48

A12454

CLIP

- cable, starting aid kit

1шт.

49

A12484

LOOM - clip to cable, starting aid kit

1шт.

50

L30184

DECAL - instruction (On instrument panel), starting aid kit

1шт.
