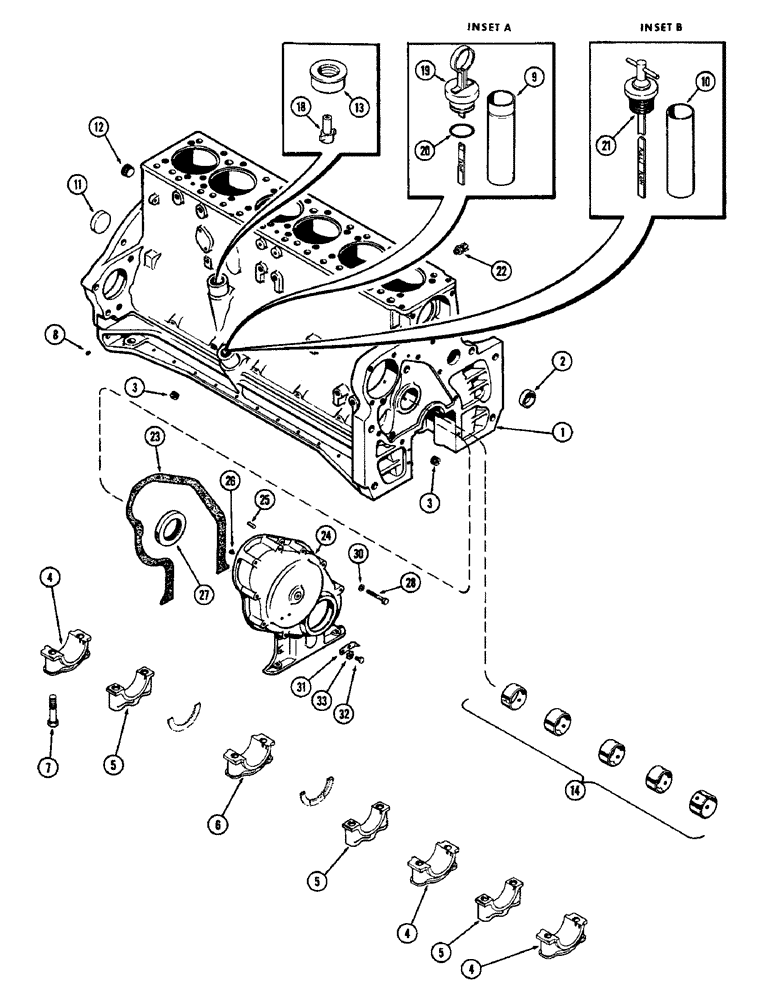

Запчасти Case W8B (007A) - CYLINDER BLOCK ASSEMBLY, (401) DIESEL ENGINE, USED PRIOR TO ENG. SN. 2173890 (01) - ENGINE

A40567

BLOCK ASSY. - short (Includes stripped block, pistons, sleeves, rings, conn. rods, crankshaft and camshaft) (Order A41237), Includes: Ref. 1 - 14

1шт.

1

A24532

BLOCK ASSY. - stripped (Order A41219), Includes: Ref. 2 - 14

1шт.

2

41-1628

PLUG,Cup, 1 3/4", Stainless

- water gallery (1-3/4" cup type)

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" P.T. hex. socket hd.

6шт.

4

A24941

CAP

- wide, crankshaft bearing

3шт.

5

A24942

CYLINDER END CAP

CAP - narrow crankshaft bearing

3шт.

6

A24943

CAP

- thrust bearing

1шт.

7

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- bearing cap (5/8 x 3-1/4" N.C. hex.)

14шт.

8

221-41

PLUG

- 1/8" P.T. slotted hd.

4шт.

9

A34540

TUBE

SOCKET - oil level gauge (See inset A) (1st used eng. ser. no. 2141473)

1шт.

10

A20714

X

SOCKET - oil level gauge (See inset B) (Order A34540) (Used prior to eng. ser. no. 2141473)

1шт.

11

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

12

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - 1" P.T. sq. socket hd.

1шт.

13

A11195

PLUG

- adapter, tach. drive

1шт.

14

A23544

BUSHING

SET - camshaft (See page 8)

1шт.

16

A27869

BUTTON - thrust

2шт.

18

A24528

ADAPTER

- tachometer drive

1шт.

19

A20739

GAUGE

ASSY. - oil level (See inset A), Includes: Ref. 20

1шт.

20

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - (3/4 x 1 x 1/8")

2шт.

21

A20739

GAUGE

- oil level (See inset B) (Used prior to eng. ser. no. 2141473)

1шт.

22

A23656

COCK, DRAIN

VALVE - water drain

1шт.

23

A33018

GASKET

- timing gear cover

1шт.

24

A57403

COVER

ASSY. - timing gear (Replaces A20718), Includes: Ref. 25 - 27

1шт.

25

A27840

PIN

- dowel, cover to block (5/16 x 3/4")

2шт.

27

A57342

SEAL

- oil, front, (2-5/8 x 3-5/8 x 1/2") (Replaces A23433)

1шт.

28

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C. hex. hd.

7шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

9шт.

31

A28218

POINTER - engine timing

1шт.

32

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

33

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - 1/4" Shakeproof

2шт.
