Запчасти Case W8B (226) - A17882 AND A17883 LOADER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

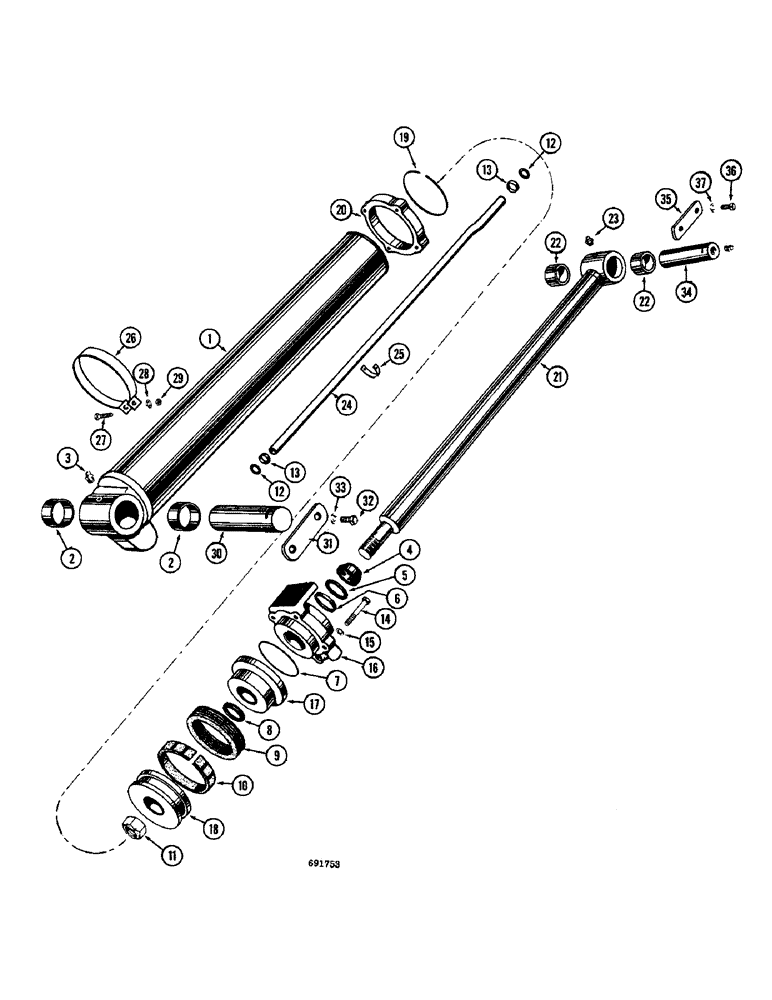

Схема запчастей Case W8B - (226) - A17882 AND A17883 LOADER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

A17882

CYLINDER - hydraulic, R.H. loader lift (5" I.D. x 36" stroke), Includes: Ref. 1 - 29

1шт.

A17883

CYLINDER BLOCK

CYLINDER - hydraulic, L.H. loader lift (5" I.D. x 36" stroke), Includes: Ref. 1 - 29

1шт.

1

A14214

CYLINDER BLOCK

TUBE - cylinder, R.H., Includes: Ref. 2

1шт.

1

A14215

TUBE

- cylinder, L.H., Includes: Ref. 2

1шт.

2

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- cylinder tube

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

A17866

KIT

- cylinder repair, Includes: Ref. 4 - 13

1шт.

4

A13893

WIPER

RING - wiper, piston rod

1шт.

5

A14230

RING

SEAL - "O" ring, piston rod

1шт.

6

A13902

WASHER

RING - backup

1шт.

7

A14227

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

SEAL - "O" ring, cylinder end cap

1шт.

8

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring, piston to rod

1шт.

9

A17815

GASKET KIT

PACKING - piston

1шт.

10

A17814

SCRAPER RING

RING - wear

1шт.

11

131-62

LOCK NUT,1 1/7 4"-12

NUT - hex., lock (1-1/4" - 12 NF)

1шт.

12

A14232

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring, port tube

2шт.

13

A14233

WASHER

RING - backup, port tube seal

2шт.

14

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8" - 18 NF x 2-3/4"

4шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

A14228

HEAD (CYLINDER)

CAP - cylinder end, R.H.

1шт.

16

A14229

CAP - cylinder end, L.H.

1шт.

17

A17812

PISTON - cylinder

1шт.

18

A17813

LARGE PLATE

GUIDE - piston

1шт.

19

A14225

RING, SNAP

RING - retainer, clamp

1шт.

20

A14226

CLAMP - end, Serial Range: cap-tube

1шт.

21

A14219

ROD

- piston, Includes: Ref. 22

1шт.

22

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- piston rod

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

24

A14231

TUBE

- port

1шт.

25

A15381

CLAMP

- port tube

1шт.

26

A15382

CLAMP - port, Serial Range: tube-cylinder

1шт.

27

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

1шт.

28

92-5

LOCK WASHER,5/16"

1шт.

29

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

30

A18909

AXLE PIN

PIN - rear pivot, lift, Serial Range: cylinder-chassis

2шт.

31

A14106

X

LOCK - pivot pin

2шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

33

92-6

LOCK WASHER,3/8"

4шт.

34

A18908

PIN

- front pivot, lift cylinder to lift frame

2шт.

35

A14106

X

LOCK - pivot pin

2шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

Выбрано товаров: 42
