Запчасти Case W8B (006) - CYLINDER BLOCK ASSEMBLY, (401) DIESEL ENGINE, 1ST USED ENG. SN. 2173890 (01) - ENGINE

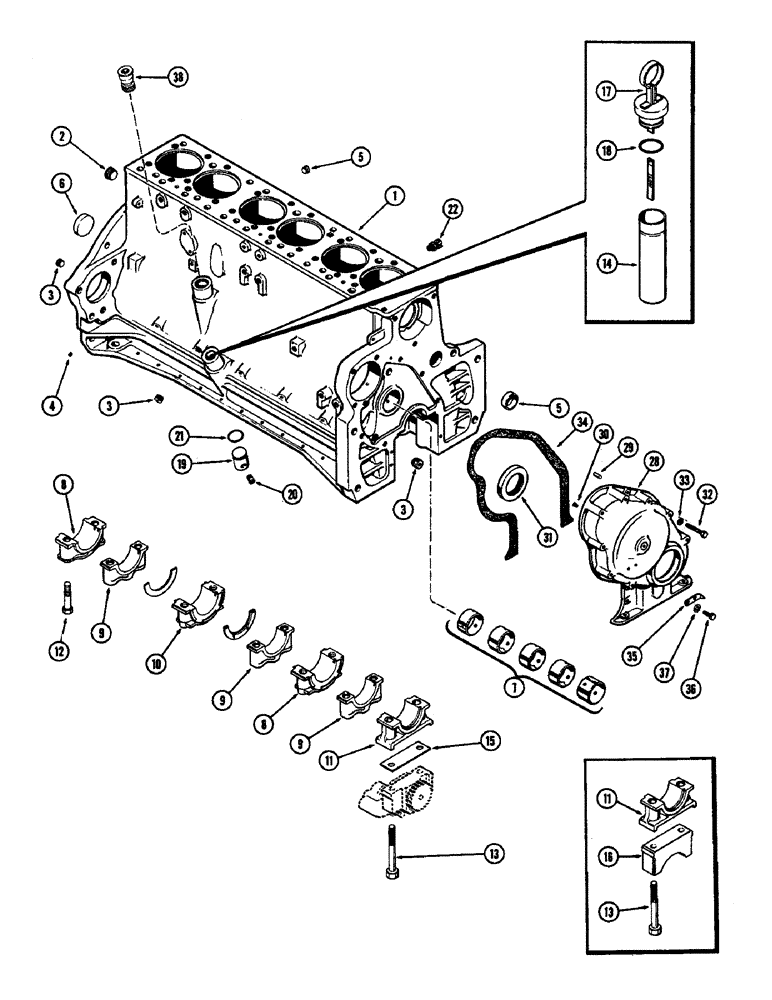

Схема запчастей Case W8B - (006) - CYLINDER BLOCK ASSEMBLY, (401) DIESEL ENGINE, 1ST USED ENG. SN. 2173890 (01) - ENGINE

Артикул

Название

Примечание

Количество

A41237

BLOCK

ASSY. - cyl., short, (Incl. stripped block, camshaft (See note), crankshaft & brgs., timing gears, piston assy. & conn. rod & brgs.), Includes: Ref. 1 - 16

1шт.

1

A41219

SPARE PART

BLOCK ASSY. - cylinder, stripped, Includes: Ref. 2 - 16

1шт.

2

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, rear water gallery, (1" sq. sckt. hd)

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, (3/8" hex. sckt. hd.)

6шт.

4

221-41

PLUG

- pipe, cyl, block (1/8" slotted)

5шт.

5

41-1628

PLUG,Cup, 1 3/4", Stainless

- water gallery (1-3/4" cup type)

1шт.

6

A24361

PLUG

- rear camshaft hole (2-3/8" cup type)

1шт.

7

A23544

BUSHING

KIT - liner, camshaft (See Figure 008)

1шт.

8

A24941

CAP

- brg. wide, crankshaft

2шт.

9

A24942

CYLINDER END CAP

CAP - brg. narrow, crankshaft

3шт.

10

A24943

CAP

- brg. thrust, crankshaft

1шт.

11

A34937

HOLDER

CAP - brg. front main, crankshaft

1шт.

12

A27836

SPECIAL BOLT,5/8" - 11 x 3 1/4"

- bearing cap (5/8 x 3-1/4" N.C. hex)

12шт.

13

113-637

BOLT

- frt. brg. cap & oil pump (Or spacer) (5/8 x 6" N.C. hex)

2шт.

14

A34540

TUBE

SOCKET - oil filler

1шт.

15

A57454

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

15

A57455

SHIM,.010" Thk

Oil pump to brg. cap .010" Thk

1шт.

15

A57456

SHIM,.025" Thk

Oil pump to brg. cap .025" Thk

1шт.

16

A57076

SPACER - oil pump, (See note)

1шт.

17

A20739

GAUGE

ASSY. - oil level

1шт.

18

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - (3/4 x 1 x 1/8")

2шт.

19

A34964

PLUG

- oil gallery hole, cyl. block

1шт.

20

A22593

SET SCREW,1/4" - 18 x 7/8"

- oil gallery, cyl. block

1шт.

21

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil gallery plug (1-3/16 x 1-7/16 x 1/8")

1шт.

22

A23656

COCK, DRAIN

COCK - drain, cyl. block

1шт.

28

A57403

COVER

ASSY. - timing gear, Includes: Ref. 29 - 31

1шт.

29

A27840

PIN

- dowel, timing gear cover (5/16 x 3/4")

2шт.

30

A27869

BUTTON - thrust, timing gear cover

2шт.

31

A57342

SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2")

1шт.

32

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.)

7шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

9шт.

34

A33018

GASKET

- timing gear cover

1шт.

35

A28218

POINTER - timing indicator

1шт.

36

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Pointer Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

37

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

2шт.

38

A34266

DRIVE

R ASSY. - tachometer

1шт.

Выбрано товаров: 37
