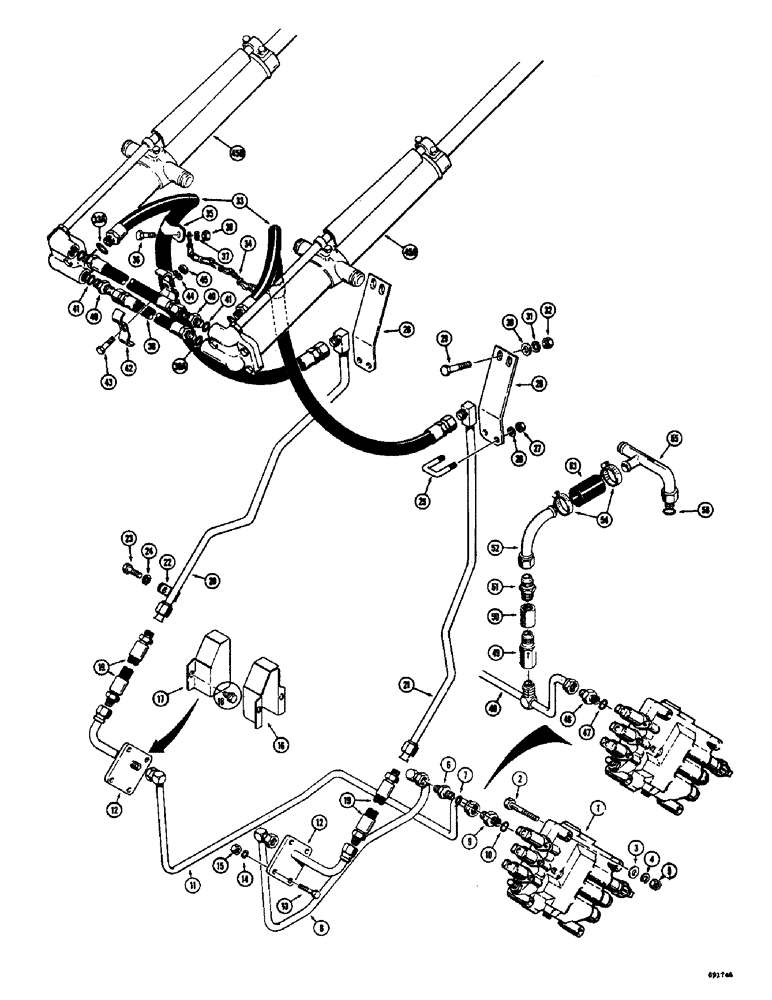

Запчасти Case W8B (206) - LOADER HYDRAULICS, TILT CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, loader control (See Figures 216 thru 220 for proper valve)

1шт.

2

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

3шт.

3

195-33

WASHER,1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

3шт.

6

A17646

CONNECTOR, ELEC

CONNECTOR Male, straight, Incl. Ref. 7

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

8

A19038

HOSE ASSY.

TUBE - valve to connector, RH

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

LH tube to valve, Incl. Ref. 10

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

11

A19039

SPARE PART Valve to connector, LH

1шт.

12

A19042

SPARE PART TUBE - special, tube to side plate

2шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

14

92-8

LOCK WASHER,1/2"

8шт.

15

25-148

JAM NUT,Jam, 1/2"-13, G5

8шт.

16

A19660

SHIELD - tube connector, RH

1шт.

17

A19661

SHIELD - tube connector, LH

1шт.

18

187-1009

BOLT

SCREW - self-tapping (1/4" - 20 NC x 3/8")

4шт.

19

A17639

HOSE

SPARE PART Side plate tube to tilt cylinder tubes (24-1/4" long)

2шт.

20

A19041

TUBE

Intermediate, LH tilt cylinder

1шт.

21

A19040

SPARE PART Intermediate, RH tilt cylinder

1шт.

22

A12308

CLAMP

Tube to lift arm

2шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

A17633

SPARE PART Tube to lift arm

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

A19044

BRACKET - clamp to lift arm

2шт.

29

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

30

95-8

WASHER,1/2"

4шт.

31

92-8

LOCK WASHER,1/2"

4шт.

32

25-108

NUT,1/2"-13, G5

4шт.

33

A19043

SPARE PART Intermediate tubes to cylinders, Incl. Ref. 33A

2шт.

33a

A12319

X

SEAL - "O" ring

1шт.

34

A13242

O-RING

CHAIN - tie, hose

1шт.

35

A17647

CLAMP

, Serial Range: Chain-hose

2шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

39

A12339

HOSE ASSY.

Crossover, tilt cylinder, Incl. Ref. 39A

2шт.

39a

A12318

X

SEAL - "O" ring

1шт.

40

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - hose to cylinder head

2шт.

41

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP - hose

2шт.

43

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

25-106

NUT,3/8"-16, G5

1шт.

45a

A18598

CYLINDER

Loader tilt, RH (Parts list Figure 228)

1шт.

45b

A18599

SPARE PART Loader tiltt, LH (Parts list Figure 228)

1шт.

46

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Male, straight, regeneration system, Incl. Ref. 47, Start Serial: 7807379

1шт.

47

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL, regeneration system, Start Serial: 7807379

1шт.

48

L15322

TUBE,1" DIA

Valve to connector, LH, regeneration system, Start Serial: 7807379

1шт.

49

D31497

LOCK VALVE

Anti-cavitation, regeneration system, Start Serial: 7807379

1шт.

50

221-1330

COUPLING

Pipe (3/4" NPT), regeneration system, Start Serial: 7807379

1шт.

51

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - coupling to tube, regeneration system, Start Serial: 7807379

1шт.

52

L15324

TUBE,1" DIA x 5.31, 4" L

Adapter to hose, regeneration system, Start Serial: 7807379

1шт.

53

L15325

HOSE

Tube to reservoir return, regeneration system, Start Serial: 7807379

1шт.

54

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Regeneration system, Start Serial: 7807379

2шт.

55

L15323

TUBE,1.25" OD x 9.6, 4.4" L

Return, valve to reservoir, regeneration system, Incl. Ref. 56, Start Serial: 7807379

1шт.

56

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL, regeneration system, Start Serial: 7807379

1шт.

L15328

KIT

Tilt cylinder regeneration, Incl. Ref. 49 - 56

1шт.

For revising loaders prior to S/N 9807379, order this kit.

1шт.

49

D31497

LOCK VALVE

Anti-cavitation

1шт.

50

221-1330

COUPLING

Pipe (3/4" NPT)

1шт.

51

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - coupling to tube

1шт.

52

L15324

TUBE,1" DIA x 5.31, 4" L

Adapter to hose

1шт.

53

L15325

HOSE

Tube to reservoir return

1шт.

54

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

55

L15323

TUBE,1.25" OD x 9.6, 4.4" L

Return, valve to reservoir, Incl. Ref. 56

1шт.

55

L16110

SPARE PART Return, valve to reservoir (Backhoe models only), Incl. Ref. 56 1.25" OD

1шт.

56

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL

1шт.

L15327

TUBE,1" OD x 2.25, 1.25" L

Tube (Not illustrated)

1шт.
