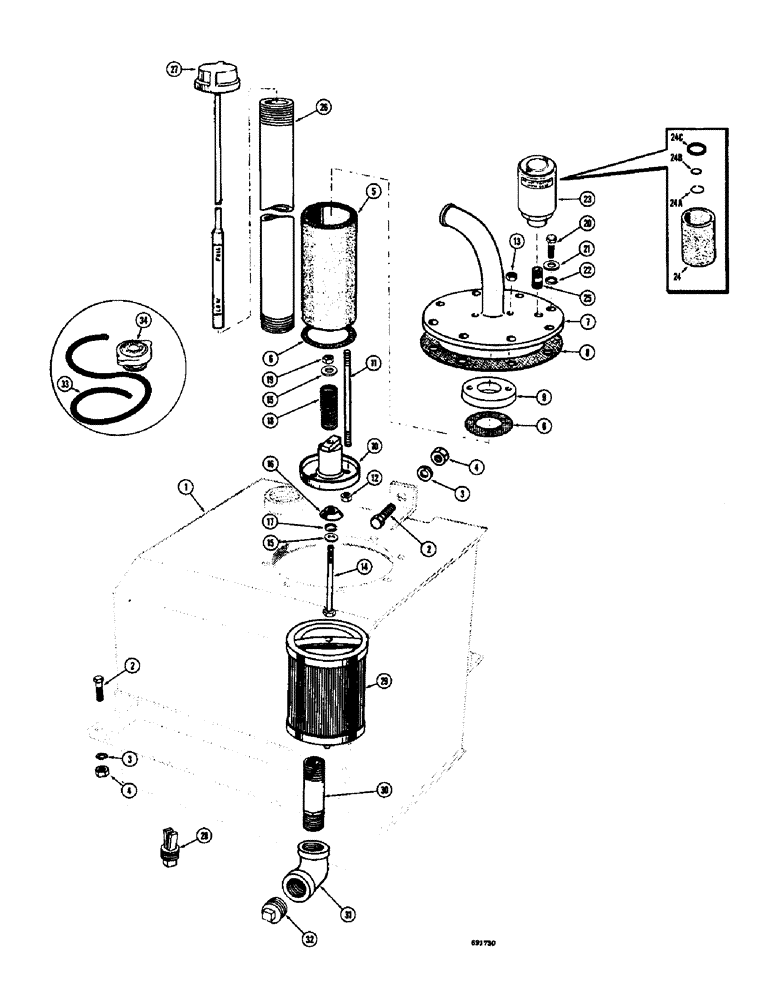

Запчасти Case W8B (136) - HYDRAULIC TANK (07) - HYDRAULIC SYSTEM

1

A18765

TANK - hydraulic oil

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

3

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

A16784

KIT

FILTER - return, hydraulic oil, Inlcudes: Ref. 6

1шт.

6

A16735

GASKET

-, Serial Range: filter-cover

2шт.

7

A18777

COVER - filter, return

1шт.

8

A17427

GASKET

- filter cover

1шт.

9

A18784

CAP

- filter to cover, upper

1шт.

10

A18780

CYLINDER END CAP

CAP - filter to cover, lower

1шт.

1

A18786

STUD

- retaining, Serial Range: filter-cover

2шт.

12

131-507

NUT

- hex., lock (5/16" - 18 NC)

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

14

13-480

CAP,Hex, 1/4" - 20 x 5", Gr 5

HHCS - 1/4" - 20 NC x 5"

1шт.

15

195-18

WASHER,1/4"

- plain () 1/4"

2шт.

16

A18785

COVER ASSY

COVER - filter relief

1шт.

17

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - "O" ring, relief cover

1шт.

18

A30709

VALVE SPRING

SPRING - relief, filter element

1шт.

19

131-506

NUT,1/4-20

NUT - hex., lock (1/4" - 20 NC)

1шт.

20

A16900

BOLT - filter, Serial Range: cover-tank

8шт.

21

195-25

WASHER,3/8"

- plain () 3/8"

8шт.

22

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL - "O" ring, bolt to cover

8шт.

23

A56518

VALVE

- pressure relief, Inlcudes: Ref. 24 - 24C

1шт.

L30196

KIT

- repair, relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

24a

L30911

RING - snap

1шт.

24b

28090

SEAL - "O" ring (Small)

1шт.

24c

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring (Large)

1шт.

25

221-1189

NIPPLE, LUBE

NIPPLE - pipe, Serial Range: valve-cover

1шт.

26

A18787

PIPE - filler, hydraulic oil

1шт.

27

A17431

DIPSTICK

GAUGE - level, hydraulic oil

1шт.

28

A17429

PLUG

- drain, magnetic

1шт.

29

A18789

FILTER, ENGINE OIL

FILTER - outlet, hydraulic tank

1шт.

HAS 2.0" NPT THAT ACTUALLY SCREW INTO THE 90 DEGREE N.S.S. ELBOW WELDED INTO THE BOTTOM OF THE HYD TANK.SEE FIGURE 202 FOR ARTWORK.

1шт.

DOES NOT PLUMB TO REF#30 PIPE NIPPLE.

1шт.

30

221-1219

FITTING,Nipple, 3/4" NPT x 4"

NIPPLE - pipe, straight (3/4" NPT)

1шт.

31

221-1369

ELBOW,45 Degree, 3/4" NPT

- pipe, 45 degrees (3/4" NPT)

1шт.

32

221-1005

PLUG - pipe, square head (3/4" NPT)

1шт.

33

A22987

HOSE - overflow (Prior to loader S/N 8900000)

1шт.

34

A11181

RADIATOR CAP

CAP - pressure (4 P.S.I.) Prior to loader S/N 8900000

1шт.

L30380

KIT - hydraulic oil tank replacement (Includes 1-A18765 tank, 1-A56518 valve and 1-221-1189 nipple)

1шт.
