Запчасти Case W8B (240) - CAB ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

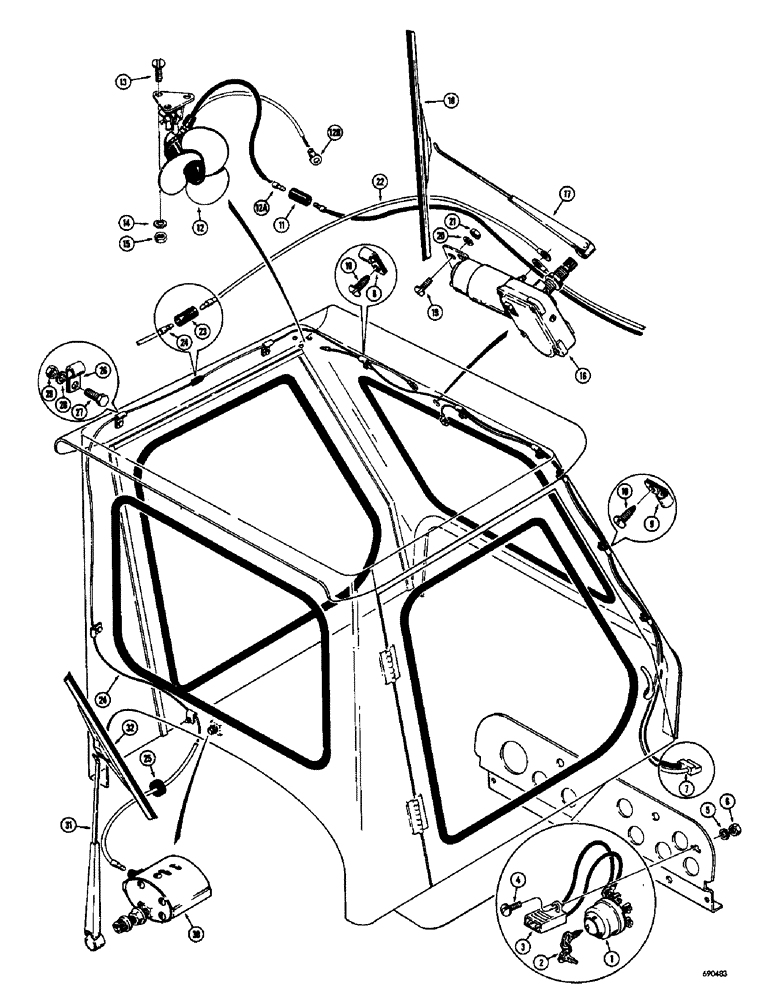

Схема запчастей Case W8B - (240) - CAB ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

L17820

SWITCH

- electrical, Includes: Ref. 2

1шт.

2

A20346

KEY

- ignition switch

1шт.

3

L17477

PLUG AND WIRE - cab connector, Start Serial: 7807379

1шт.

3

A19881

PLUG AND WIRE - cab connector, Serial Range: -7807379

1шт.

4

173-63

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- machine, round head (#6 - 32 NC x 5/8")

1шт.

5

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

6

129-5

NUT,#6-32

1шт.

7

L17476

HARNESS - cab wiring, Start Serial: 7807379

1шт.

7

A19880

HARNESS - cab wiring, Serial Range: -7807379

1шт.

8

L10167

CLAMP - windshield wiper wire

2шт.

9

L10168

CLAMP -, Serial Range: harness-cab

5шт.

10

187-1009

BOLT

SCREW - self-tapping, 1/4" dia. x 3/8"

7шт.

11

A27213

CONNECTOR - wire to defroster fan

1шт.

12

L10169

FAN

- defroster

1шт.

12a

L10051

TERMINAL CONNECTOR,Male

TERMINAL - wire

1шт.

12b

L10052

KIT

EYELET - wire

1шт.

13

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, round head (#6 - 32 NC x 1/2") Zinc plated

3шт.

14

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

15

129-15

NUT,#6-32

3шт.

16

A19873

WIPER MOTOR

MOTOR - windshield wiper, front (Gas - 12 volt)

1шт.

16

A55991

WIPER MOTOR

MOTOR - windshield wiper, front (Diesel - 24 volt)

1шт.

17

A10893

ARM

- windshield wiper

1шт.

18

A10894

WINDSHIELD WIPER

BLADE - windshield wiper (14")

1шт.

19

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- machine, round head (#10 - 24 NC x 3/4") Zinc plated

3шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

21

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

3шт.

22

A14734

ELECTRICAL WIRE

WIRE - front wiper, Serial Range: motor-connector

1шт.

23

A27213

CONNECTOR - front to rear wiper

1шт.

24

A11766

WIRE - connector to rear wiper motor

1шт.

25

A31076

GROMMET

- wiper wire

1шт.

26

L10167

CLAMP -, Serial Range: wire-cab

3шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

30

A13039

MOTOR - wiper, rear window (Gas - 12 volt)

1шт.

30

A56143

WIPER MOTOR

MOTOR - wiper, rear window (Diesel - 24 volt)

1шт.

31

A10893

ARM

- wiper

1шт.

32

A56144

BLADE - wiper (#10)

1шт.

Выбрано товаров: 38
