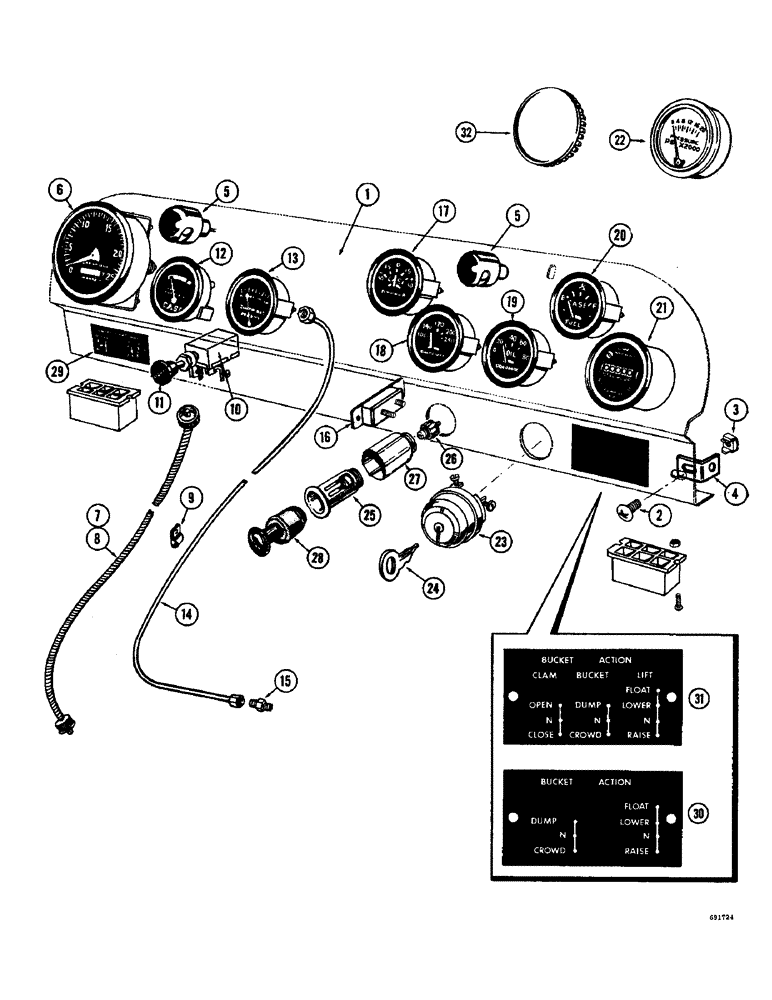

Запчасти Case W8B (078) - INSTRUMENT PANEL, GAS ENGINE, USED WITH GENERATOR ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

A19344

PANEL - instrument

1шт.

2

175-402

SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"

- machine, truss head (1/4" - 20 NC x 5/8")

4шт.

3

131-135

SPRING NUT,Tinn, U, 1/4"-20

4шт.

4

A17270

CLIP - mounting

2шт.

5

A7642

LAMP

- dash (Parts list Figure 088)

2шт.

6

A11190

TACHOMETER

- engine

1шт.

7

A12627

CABLE PULLING GRIP

DRIVE - tachometer, Includes: Ref. 8

1шт.

8

A13199

CABLE

- tachometer

1шт.

9

A27033

CLIP - tachometer drive

1шт.

10

A20201

SWITCH

- light, Includes: Ref. 11

1шт.

11

A7817

KNOB

- light switch

1шт.

12

A13756

GAUGE

- converter temperature

1шт.

13

A56447

ELECTRICAL GAUGE

GAUGE - converter pressure

1шт.

14

A17267

TUBE

- pressure

1шт.

15

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING - tube, 1/8" O.D. x 1/8" NPT.

1шт.

16

A22877

BREAKER,40A

- circuit

1шт.

17

A19348

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

18

A19347

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

19

A19346

ELECTRICAL GAUGE

GAUGE - engine oil pressure

1шт.

20

A19345

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

21

A19520

HOURMETER

- engine (Optional)

1шт.

22

A19522

ELECTRICAL GAUGE

GAUGE - hydraulic pressure (Optional)

1шт.

23

L17820

SWITCH

- starting, Includes: Ref. 24

1шт.

24

A20346

KEY

- starting switch

1шт.

25

G44916

SOCKET

- lighter, Includes: Ref. 26

1шт.

26

G44918

FUSE - lighter

1шт.

27

G46381

SHELL - lighter clamping

1шт.

28

A24134

CIGARETTE LIGHTER

LIGHTER UNIT - cigarette

1шт.

29

A17607

PLATE ASSY.

PLATE - shift pattern

1шт.

30

A19277

PLATE ASSY.

PLATE - bucket action (2 spool)

1шт.

31

A18406

PLATE ASSY.

PLATE - bucket action (3 spool)

1шт.

32

A19381

X

PLUG - button (Used in place of hourmeter or hydraulic pressure gauge)

1шт.
