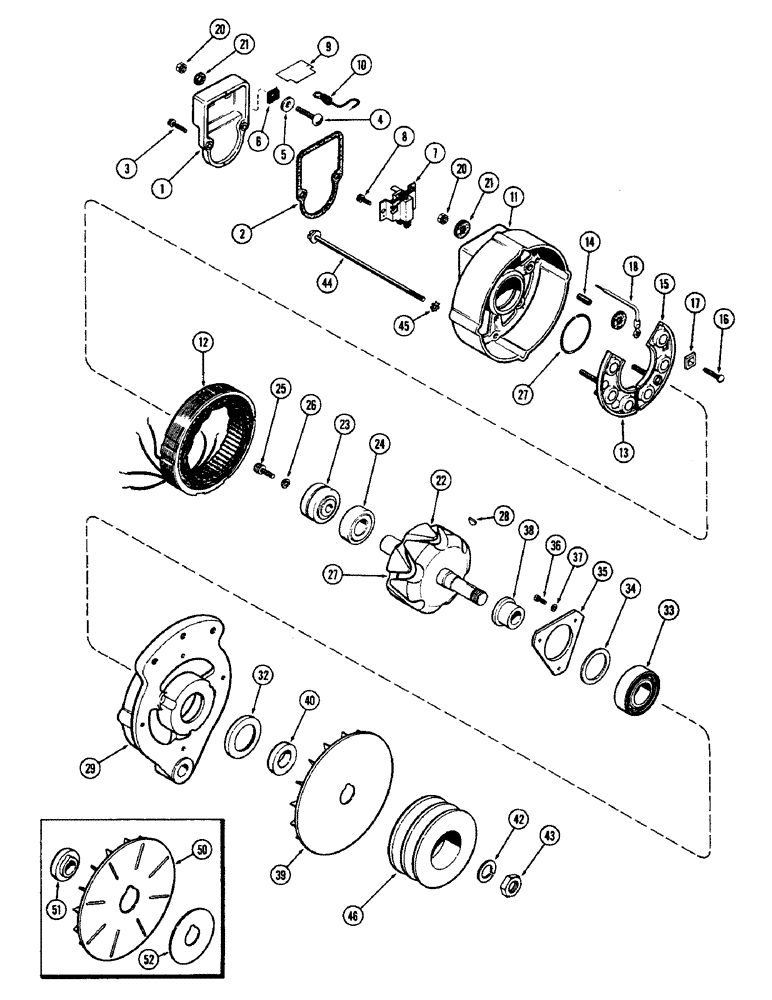

Запчасти Case W8B (068) - A41340 ALTERNATOR, 1ST USED LOADER SER. NO. 9805550, (377) SPARK IGNITION ENGINE (06) - ELECTRICAL SYSTEMS

A41340

ALTERNATOR

ALTERNATOR ASSY. - 55 amp. (Motorola #MH-12N-601, Includes: Ref. 1 - 45

1шт.

104022A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

104022A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 55 Amp Alternator

1шт.

104021A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 35 Amp Alternator

1шт.

104021A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 35 Amp Alternator

1шт.

1

A41435

COVER ASSY

COVER - housing

1шт.

2

A41341

GASKET

GASKET -, Serial Range: cover-body

1шт.

3

187-482

SPARE PART SCREW - cover, #8 x 3/4" self-tapping

2шт.

4

A41036

SCREW

BOLT - field wire (#10-24 rd. hd.)

1шт.

5

G49045

WASHER

WASHER - plain (17/64 x 39/64" x 16 ga.)

1шт.

6

A41041

INSULATOR

INSULATOR - brush

1шт.

7

A41048

BRUSH, COMMUTATOR

BRUSH BRUSH ASSY. (Incl. holder)

1шт.

8

187-480

SCREW,Hex Hd, #8 x 1/2"

SCREW - brush (#8 x 1/2" hex. hd. self-tapping)

2шт.

9

A41042

INSULATOR

INSULATOR - brush assy. shunt lead

1шт.

10

A41046

ELECTRICAL WIRE

WIRE CABLE - internal field

2шт.

11

A41045

COVER

HOUSING - rear

1шт.

12

A41327

ARMATURE

STATOR ASSY. - alternator

1шт.

13

A41056

DIODE

DIODE ASSY. - negative (Black)

1шт.

14

A41040

INSULATOR

INSULATOR - nylon (13/64 x 17/64 x 68", Serial Range: cut-req.)

2шт.

15

A41438

DIODE

DIODE ASSY. - positive (Red)

1шт.

16

A41436

SCREW

STUD - rectifier ring

1шт.

17

A41041

INSULATOR

INSULATOR - rectifier stud

1шт.

18

A41432

CABLE PULLING GRIP

CABLE - phase tap

1шт.

20

A41060

LOCK NUT

NUT - lock (#10-24 Sems type)

7шт.

21

A41038

WASHER

WASHER - insulating (13/64 x 3/4 x 1/16")

7шт.

22

A41033

IMPELLER

ROTOR ASSY. - alternator, Includes: Ref. 23 - 26

1шт.

23

A41032

SLIP RING

RING - slip

1шт.

24

A42076

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - sealed (21/32 x 1-37/64 x 5/32")

1шт.

25

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW - #10-32 x 5/8" hex. socket hd.

1шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

27

A41049

RUBBER SEAL

RETAINER - rear bearing

1шт.

28

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

29

A41437

HOUSING

HOUSING - front (Includes adapter)

1шт.

32

A41047

SEAL ASSY.

SEAL - bearing, front housing

1шт.

33

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - sealed, front (63/64 x 2-3/64 x 19/32")

1шт.

34

A41039

RETAINER

WASHER - retainer (1-1/4 x 1-5/8 x 3/32")

1шт.

35

A41050

SPARE PART RETAINER - front bearing

1шт.

36

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - pan hd., #8-24 x 3/8"

3шт.

37

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

38

A41052

SLEEVE

SLEEVE - shaft, Includes: Ref. 39 - 45

1шт.

39

A42431

FAN

FAN - cooling (w/5/8" dia. shaft hole)

1шт.

40

A42432

SPACER

SPACER - fan (Use w/A42431)

1шт.

42

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

43

A41035

NUT

NUT - pulley (5/8" N.F. hex.)

1шт.

44

A41037

BOLT

BOLT - rear housing

4шт.

45

193-41

WASHER,Ext-Int Tooth, #8

WASHER, LOCK, Ext-Int Tooth, #8

4шт.

46

A41057

PULLEY

PULLEY - alternator drive

1шт.

50

A41058

X

FAN - cooling (w/7/8" dia. shaft hole) (Order A42431 & A42432)

1шт.

51

A41053

SPARE PART SPACER - fan (Use only w/A41058 fan)

1шт.

52

A41051

SPACER

SPACER - pulley (Use only w/A41058 fan)

1шт.
