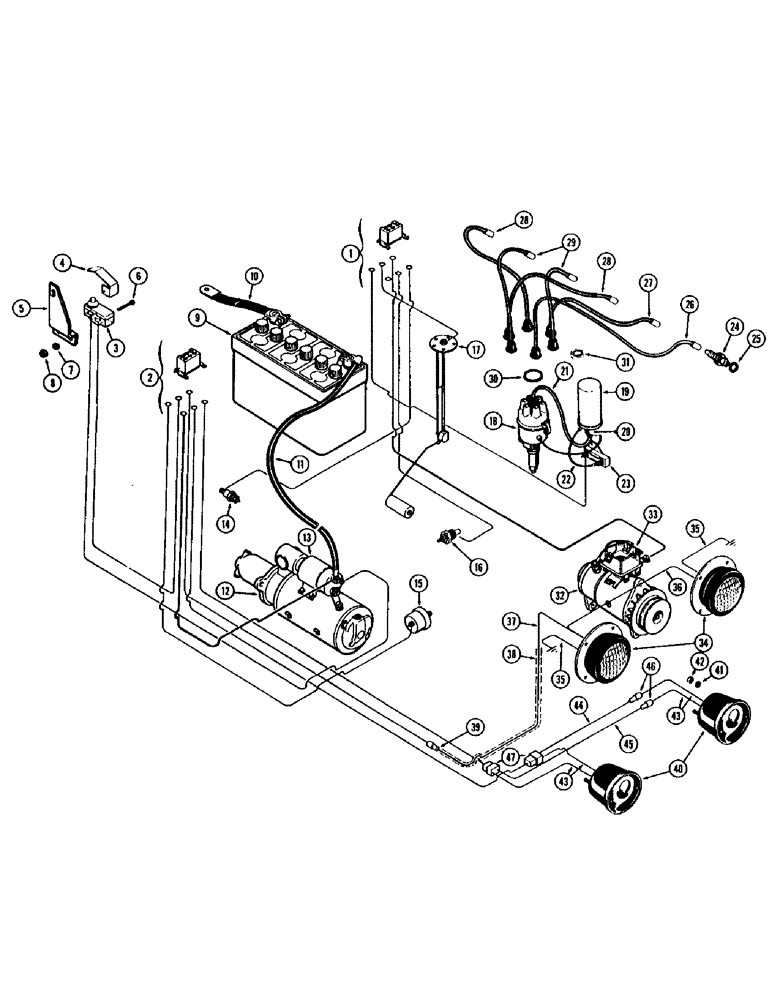

Запчасти Case W8B (062) - GENERATOR ELECTRICAL SYSTEM, GAS ENGINE (06) - ELECTRICAL SYSTEMS

1

A19374

HARNESS - wiring, R.H.

1шт.

2

A19373

SPARE PART HARNESS - wiring, L.H.

1шт.

3

A19513

SWITCH

SWITCH - neutral start

1шт.

A19515

SPARE PART PIN - plunger, safety switch (Not illustrated)

1шт.

4

L11390

SPARE PART GUARD - neutral start switch

1шт.

5

A19514

SPARE PART PLATE - mounting, neutral start switch

1шт.

6

173-68

SCREW,Sl Rnd Hd, #6 - 32 x 1 1/4"

SCREW - machine, round head (#6 - 32 NC x 1-1/4")

2шт.

7

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

8

129-5

NUT,#6-32

NUT, #6-32

2шт.

9

14H90

BATTERY - electrical, 12 volt

1шт.

10

A27069

CABLE

CABLE - negative terminal to ground (15" long)

1шт.

11

A17285

CABLE - positive terminal to starter solenoid

1шт.

12

A20633

STARTER MOTOR

STARTER - engine, 12 volt (Parts list Figures 65A and 65C), Includes: Ref. 13

1шт.

12

AR20633

REMAN-STARTER

Remanufactured STARTER

1шт.

12

AC20633

CORE-STARTER

Return Number

1шт.

13

A23564

X

SOLENOID - starter

1шт.

14

A13795

SENDER UNIT

SENDER SENDING UNIT - converter temperature

1шт.

15

A35031

SENDER UNIT

SENDER SENDING UNIT - engine oil pressure

1шт.

16

A21462

SENDER UNIT

SENDER SENDING UNIT - engine temperature

1шт.

17

A18869

SENDER UNIT

SENDER SENDING UNIT - fuel gauge

1шт.

18

A24505

DISTRIBUTOR

DISTRIBUTOR - electrical (Parts list Figure 64)

1шт.

19

A40778

COIL

COIL - electrical

1шт.

20

G46803

BOOT

NIPPLE - coil cable

1шт.

21

A29180

CABLE

WIRE -, Serial Range: coil-distributor

1шт.

22

A28015

SPARE PART WIRE -, Serial Range: coil-resistor

1шт.

23

A24504

RESISTOR

RESISTOR - electrical

1шт.

24

G44840

SPARK PLUG

SPARK PLUG - engine, 18 MM, Includes: Ref. 25

6шт.

25

G46839

GASKET

GASKET - spark plug

1шт.

26

A26768

CABLE

WIRE - no. 1 spark plug (26-1/2" long)

1шт.

27

A26800

CABLE

WIRE - no. 2 spark plug (21-1/2" long)

1шт.

28

A20143

ELECTRICAL WIRE

WIRE WIRE - no. 3 and no. 6 spark plug (15" long)

2шт.

29

A20144

ELECTRICAL WIRE

WIRE WIRE - no. 4 and no. 5 spark plug (11" long)

2шт.

30

A23258

SPARE PART RING - wire harness (6 wire)

1шт.

31

A20265

RING - wire harness ( 2 wire)

1шт.

32

A33983

GENERATOR

GENERATOR - electrical, 12 volt (Parts list Figure 63A), Includes: Ref. 33

1шт.

33

A20792

REGULATOR

REGULATOR - voltage

1шт.

34

A15932

X

LIGHT - rear (Parts list Figure 086)

2шт.

35

A15941

ELECTRICAL WIRE

WIRE WIRE - ground, rear light

2шт.

36

A16367

ELECTRICAL WIRE

WIRE WIRE - connecting, L.H. to R.H. rear light

1шт.

37

A15948

ELECTRICAL WIRE

WIRE WIRE - harness to L.H. rear light

1шт.

38

A27201

SPARE PART LOOM - wire protector

1шт.

39

A27213

SPARE PART CONNECTOR - wire, harness to rear lights

1шт.

40

L10741

STOP LIGHT

LIGHT - stop and tail, 12 volt (Parts list Figure 086)

2шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

42

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

4шт.

43

A16731

PLUG

WIRE - connecting, Serial Range: harness-stoplight

4шт.

44

A13251

ELECTRICAL WIRE

WIRE WIRE - connecting, harness to R.H. stoplight (White - 18" long)

1шт.

45

A13252

ELECTRICAL WIRE

WIRE WIRE - connecting, harness to R.H. stoplight (Black - 18" long)

1шт.

46

A27213

SPARE PART CONNECTOR - 2 wire, stoplight

2шт.

47

A8210

CONNECTOR, ELEC

CONNECTOR CONNECTOR - 3 wire, stoplight

2шт.
