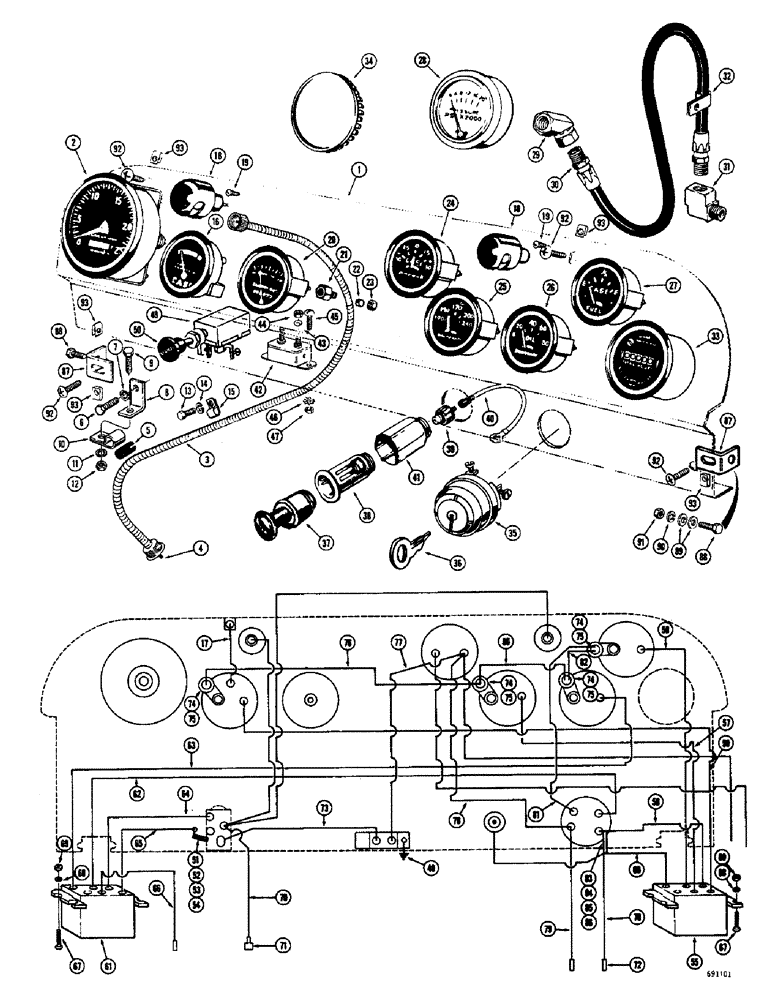

Запчасти Case W8B (060) - INSTRUMENT PANEL, DIESEL ENGINE, USED WITH ALTERNATOR, AND GENERATOR ELEC. SYSTEM (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A19344
PANEL - instrument
1шт.
2
A13200
CABLE
TACHOMETER - engine (Includes hourmeter)
1шт.
3
A12430
HOUSING
CABLE ASSEMBLY - tachometer drive, Includes: Ref. 4
1шт.
4
A24523
KIT
CABLE - tachometer drive
1шт.
5
A12458
SLEEVE
LOOM - protective
1шт.
6
13-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
1шт.
7
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
8
A18841
BRACKET - tachometer cable, Serial Range: clip-firewall
1шт.
9
13-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
1шт.
10
A7922
CLIP
- cable to firewall bracket
1шт.
11
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
12
25-104
NUT,1/4"-20, G5
1шт.
13
13-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
1шт.
14
92-5
LOCK WASHER,5/16"
med sect. 5/16"
1шт.
15
A27033
CLIP - tachometer cable to side plate
1шт.
16
A13756
GAUGE
- converter oil temperature
1шт.
17
A21625
WIRE - ground, gauge to panel bracket
1шт.
18
A14737
LAMP
ASSEMBLY - dash panel, 24 volt (Parts list Figure 088)
2шт.
19
187-1007
SCREW
- round head, self tapping (#6 - 32 NC x 5/16")
4шт.
20
A56447
ELECTRICAL GAUGE
GAUGE - clutch pressure
1шт.
222-681
FITTING,5/16"-24 x 1/8" NPT Fem, Comp
COUPLING ASSEMBLY - flex fitting, Includes: Ref. 21 - 23
1шт.
21
NSS
NOT SOLD SEPARAT
COUPLING - flex fitting
1шт.
22
222-100
TUBE NUT,1/8" Tube
SLEEVE - flex fitting
1шт.
23
222-110
TUBE NUT,3/8"-24
NUT - flex fitting
1шт.
24
A55699
ELECTRICAL GAUGE
GAUGE - ammeter, 60 amp
1шт.
25
A19347
ELECTRICAL GAUGE
GAUGE - engine temperature
1шт.
26
A19346
ELECTRICAL GAUGE
GAUGE - engine oil pressure
1шт.
27
A19345
ELECTRICAL GAUGE
GAUGE - fuel level
1шт.
28
A19522
ELECTRICAL GAUGE
GAUGE - hydraulic pressure (Optional)
1шт.
29
A19523
ADAPTER - pressure, Serial Range: gauge-hose
1шт.
30
A19426
HOSE - adapter to control valve
1шт.
31
A15925
ELBOW UNION
ELBOW - hose to control valve
1шт.
32
A26696
NO LONGER SERVICED
CLIP - hose to brake cylinder bracket
1шт.
33
A19521
X
GAUGE - hourmeter, 24 volt (Optional)
1шт.
34
A19381
X
PLUG - button, gauge opening (Used in place of hourmeter or hydraulic pressure gauge)
1шт.
35
L17820
SWITCH
- starting, Includes: Ref. 36
1шт.
36
A20346
KEY
- starting switch
1шт.
37
A24134
CIGARETTE LIGHTER
LIGHTER - cigarette
1шт.
38
G44916
SOCKET
- lighter, Includes: Ref. 39 and 40
1шт.
39
G44918
CIRCUIT BREAKER - protective
1шт.
40
G44022
ELECTRICAL WIRE
WIRE -, Serial Range: lighter-switch
1шт.
41
G46381
SHELL - retainer, lighter socket
1шт.
42
A22877
BREAKER,40A
CIRCUIT BREAKER - light switch
1шт.
43
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
45
173-95
SCREW,Sl Rnd Hd, #10 - 24 x 3/8"
- machine, round head (#10 - 24 NC x 3/8")
2шт.
46
193-70
LOCK WASHER,Ext-Int Tooth, #10
WASHER, LOCK, Ext-Int Tooth, #10
2шт.
47
129-7
NUT,Hex, #10 - 24
- hex. (#10 - 24 NC)
2шт.
48
A56181
ELECTRICAL WIRE
WIRE - ground, circuit breaker
1шт.
49
A20201
SWITCH
- headlight
1шт.
50
A7817
KNOB
- light switch
1шт.
51
A14900
RESISTOR
- voltage, taillight
1шт.
52
173-75
SCREW,Sl Rnd Hd, #8 - 32 x 3/8"
- machine, round head (#8 - 32 NC x 3/8")
1шт.
53
192-6
LOCK WASHER,#8
WASHER, LOCK, #8
1шт.
54
129-6
NUT,#8-32
1шт.
L10078
HARNESS - wiring, panel (R.H.), Includes: Ref. 55 - 60
1шт.
55
A13742
BLOCK - harness connector
1шт.
56
A13743
WIRE - block to starting switch (Red - 7" long)
1шт.
57
A19355
WIRE - block to engine temperature (Green - 12" long)
1шт.
58
A19354
WIRE - block to fuel level gauge (White - 7-1/2" long)
1шт.
59
A19353
WIRE - block to converter temperature gauge (Black - 23" long)
1шт.
60
A19356
WIRE - block to starting switch (Blue - 6-1/2" long)
1шт.
L10079
HARNESS - wiring, panel (L.H.), Includes: Ref. 61 - 66
1шт.
61
A13742
BLOCK - harness connector
1шт.
62
A19359
WIRE - block to solenoid terminal of starting switch (Green - 24-3/4" long)
1шт.
63
A19361
WIRE - block to engine oil pressure gauge (White - 24-3/4" long)
1шт.
64
A19357
WIRE - block to rear headlight terminal of switch (Black - 9-1/2" long)
1шт.
65
A19358
WIRE - block to taillight terminal of switch (Yellow - 8-1/2" long)
1шт.
66
A19360
WIRE - block to stop light switch (Blue - 28" long)
1шт.
67
173-61
SCREW,Sl Rnd Hd, #6 - 32 x 1/2"
- machine, round head (#6 - 32 NC x 1/2")
4шт.
68
192-5
LOCK WASHER,#6
WASHER, LOCK, #6
4шт.
69
129-5
NUT,#6-32
4шт.
70
A19367
WIRE - light switch to front headlights, starting switch to horn (Black - 18" long)
2шт.
71
A8210
CONNECTOR, ELEC
CONNECTOR - three wire (From headlights)
1шт.
72
A27213
CONNECTOR - two wire (Horn)
1шт.
73
A19365
WIRE - circuit breaker to light switch (Black - 8" long)
1шт.
74
A19349
RESISTOR
- voltage, gauge
4шт.
75
195-12
WASHER,#10
- plain () #10
4шт.
76
A19366
WIRE - converter temperature gauge to engine temperature gauge (Black - 11-1/4" long)
1шт.
77
A19364
WIRE - circuit breaker to ammeter (Black - 6" long)
1шт.
78
A19369
WIRE - ammeter to starting switch (Red - 8-1/4" long)
1шт.
79
A19508
WIRE - starting switch to stop light switch (Blue - 28" long)
1шт.
80
A19363
WIRE - engine temperature gauge to engine oil pressure gauge (Black - 3-3/4" long)
1шт.
81
A19363
WIRE - starting switch to fuel level gauge (Black - 3-3/4" long)
1шт.
82
A19363
WIRE - fuel level gauge to engine oil pressure gauge (Black - 3-3/4" long)
1шт.
83
A9348
BLOCK - electrical terminal
1шт.
84
173-61
SCREW,Sl Rnd Hd, #6 - 32 x 1/2"
- machine, round head (#6 - 32 NC x 1/2")
1шт.
85
192-5
LOCK WASHER,#6
WASHER, LOCK, #6
1шт.
86
129-5
NUT,#6-32
1шт.
87
A17270
CLIP - mounting, instrument panel
2шт.
88
13-428
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
2шт.
89
95-4
WASHER,1/4"
- plain () 1/4"
2шт.
90
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
91
25-144
JAM NUT,Jam, 1/4"-20, G5
- hex., jam (1/4" - 20 NC)
1шт.
92
175-405
SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"
- machine, truss head (1/4" - 20 NC x 1/2") Zinc plated
4шт.
93
131-120
NUT
- Tinnerman (1/4" - 20 NC)
5шт.
Выбрано товаров: 96
