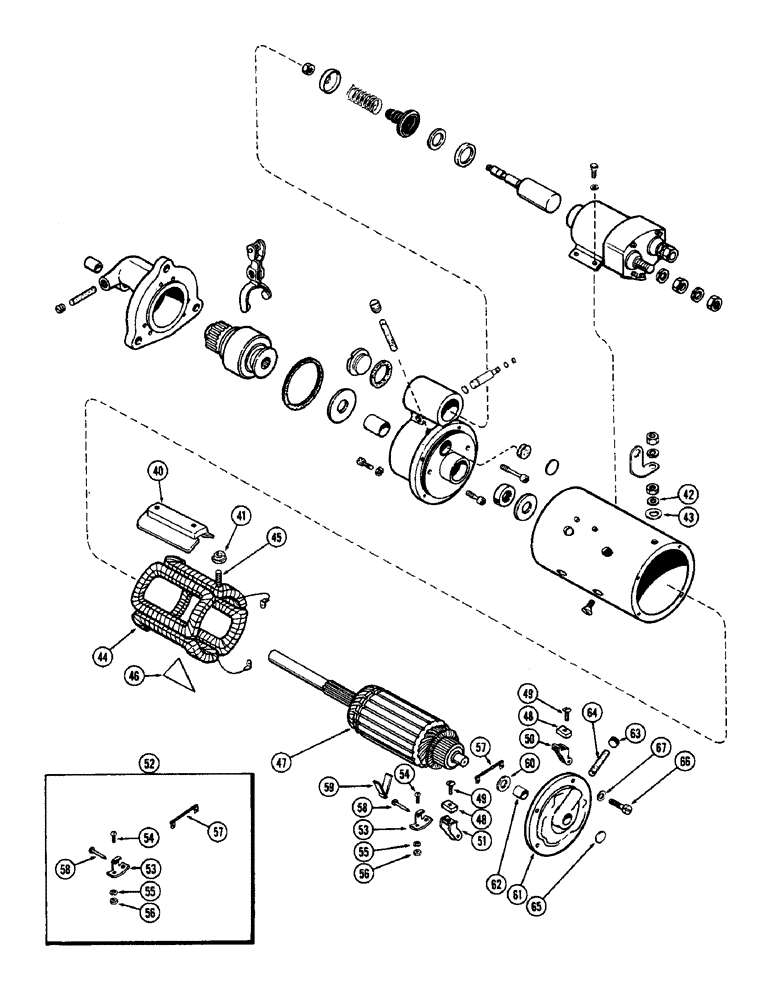

Запчасти Case W8B (059E) - A15485 STARTER, (401) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

A15485

STARTING MOTOR

STARTER ASSY. - (Cont. from Figure 059C), Includes: Ref. 40 - 67

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

40

R15115

SHOE

SHOE - pole

4шт.

41

R15010

BUSHING

BUSHING - insulator, terminal stud

1шт.

42

R15013

WASHER

WASHER - plain, terminal stud

1шт.

43

A42010

WASHER

WASHER - insulating, terminal stud

1шт.

44

R21557

COIL ASSY.

COIL ASSY. - field, Includes: Ref. 45

1шт.

45

R15017

STUD

STUD - terminal

1шт.

46

A41977

RUBBER INSULATOR

INSULATOR - field coil

2шт.

47

A40909

ARMATURE

ARMATURE - starter

1шт.

48

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

49

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching (Self-tapping)

4шт.

50

R15027

HOLDER

HOLDER - insulated, brush

2шт.

51

A40217

HOLDER

HOLDER - grounded, brush

2шт.

52

R15029

BRUSH

SUPPORT KIT - brush holder, Includes: Ref. 53 - 58

2шт.

53

NSS

NOT SOLD SEPARAT

SUPPORT - (Order R15029)

12шт.

54

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - #10-24 x 3/4" rd. hd.

2шт.

55

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

56

R15032

X

NUT - #10-24 hex.

2шт.

57

R15030

ELECTRICAL WIRE

WIRE LEAD - ground

1шт.

58

R15035

PIN

PIN -, Serial Range: holder-support

1шт.

59

R15025

SPRING

SPRING - brush

2шт.

60

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer, commutator end

1шт.

61

R21559

FRAME

FRAME ASSY. - commutator end, Includes: Ref. 62 - 65

1шт.

62

R15020

BUSHING

BUSHING - armature shaft

1шт.

63

221-1041

PLUG

PLUG - pipe, 1/8" slotted hd.

1шт.

64

R15023

WICK

WICK - oil

1шт.

65

R15021

PLUG

PLUG - end (3/4" expansion type)

1шт.

66

R21578

SCREW

SCREW -, Serial Range: frame-housing

3шт.

67

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
