Запчасти Case W8B (059C) - A15485 STARTER, (401) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

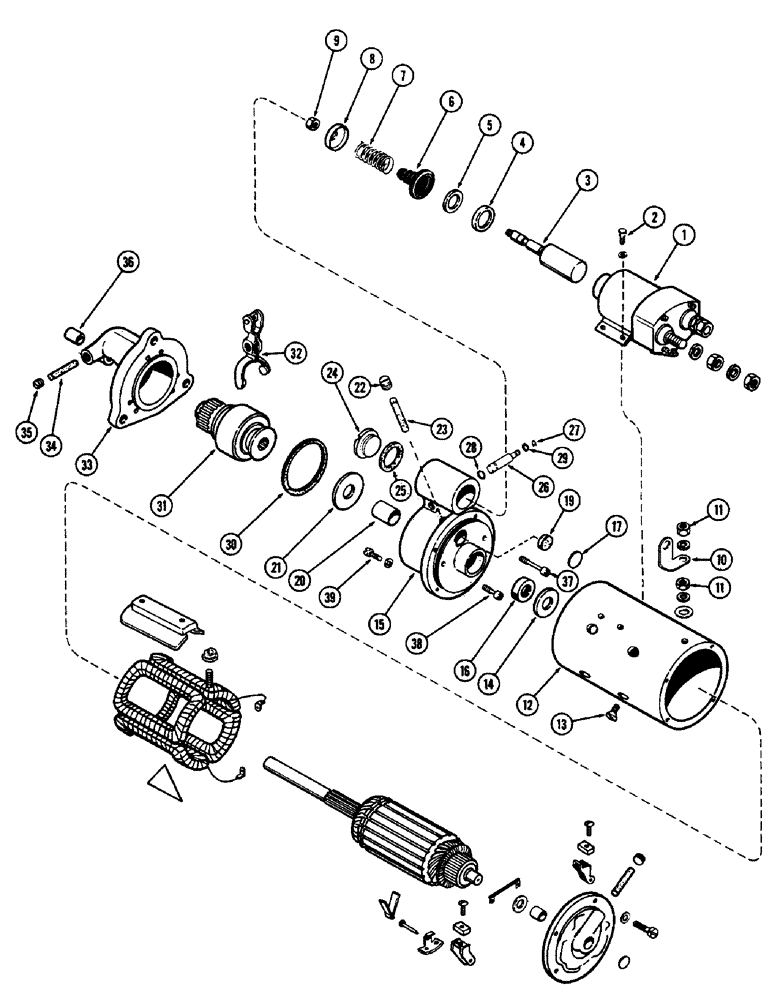

Схема запчастей Case W8B - (059C) - A15485 STARTER, (401) DIESEL ENGINE (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

A15485

STARTING MOTOR

STARTER ASSY. - (Delco #1113370), Includes: Ref. 1 - 39

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

104213A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

1

A42376

SWITCH

SWITCH ASSY. - solenoid (Repairs Figure 059E)

1шт.

2

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

BOLT - solenoid to starter

4шт.

3

A42309

PLUNGER

PLUNGER - solenoid

1шт.

4

R21572

RETAINER

RETAINER - plunger spring

1шт.

5

A42063

WASHER - retainer

1шт.

6

A42308

BOOT

BOOT - plunger

1шт.

7

A41242

SPRING

SPRING - plunger

1шт.

8

R21571

RETAINER

RETAINER - spring

1шт.

9

131-31

LOCK NUT,5/16"-24, G8

NUT - adjusting, 5/16" N.F. Nylok

1шт.

10

D32480

SPARE PART CONNECTOR - switch to field terminal

1шт.

11

R15014

NUT

NUT -, Serial Range: connector-terminal

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - armature (Order A15485)

1шт.

13

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - shoe, 3/8 x 5/8" N.F. flat hd.

8шт.

14

R21583

WASHER

WASHER - spacer, armature

1шт.

15

R21579

HOUSING

HOUSING ASSY. - shift lever, Includes: Ref. 16 - 23

1шт.

16

R21582

OIL SEAL

SEAL - oil, lever housing

1шт.

17

41-57

PLUG,Exp, 1 1/32"

PLUG - expansion

1шт.

19

A41923

PLUG

PLUG - inner

1шт.

20

R21580

BUSHING

BUSHING - lever housing

1шт.

21

R15145

DISC

WASHER - brake

1шт.

22

221-1041

PLUG

PLUG - pipe, 1/8" slotted hd.

1шт.

23

R15023

WICK

WICK - oil

1шт.

24

R21587

PLUG

PLUG - screw, lever housing

1шт.

25

A41924

GASKET

GASKET - plug

1шт.

26

A42199

PIN

STUD - shift lever

1шт.

27

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud #37, Ext

1шт.

28

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - lever stud (15/64 x 3/8 x 1/16")

1шт.

29

A21573

SPARE PART "O" RING - lever stud (23/64 x 1/2 x 1/16")

1шт.

30

R21562

GASKET

GASKET - lever housing to drive housing

1шт.

31

A42397

DRIVE

DRIVE ASSY. - starter

1шт.

32

A32547

SPARE PART LEVER - shift, drive assy.

1шт.

33

A40283

HOUSING

HOUSING ASSY. - starter drive, Includes: Ref. 34 and 35

1шт.

34

R15023

WICK

WICK - oil

1шт.

35

221-1041

PLUG

PLUG - pipe, 1/8" slotted hd.

1шт.

36

A40893

BUSHING

BUSHING - armature shaft

1шт.

37

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive housing (5/16-18 x 1-1/2" sckt. hd.)

1шт.

38

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing (5/16-18 x 7/8" sckt. hd.)

1шт.

39

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Lever housing Hex, 1/4"-28 x 1", G5

4шт.

Выбрано товаров: 43
