Запчасти Case W8B (238) - OPERATOR CAB (05) - UPPERSTRUCTURE CHASSIS

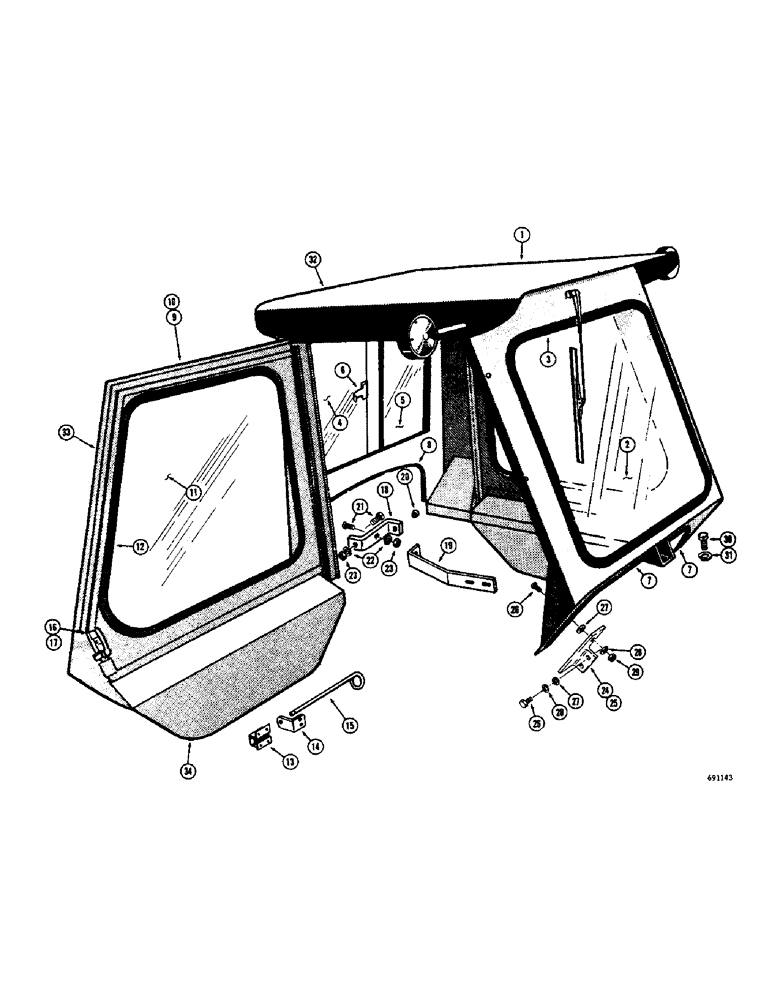

Схема запчастей Case W8B - (238) - OPERATOR CAB (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

A19864

CAB ASSEMBLY - operator (Machinery Item), Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

CAB - operator, Includes: Ref. 2 - 8

1шт.

2

A19845

GLASS - windshield

1шт.

3

A19861

MOLDING

MOULDING - windshield

1шт.

4

A19846

GLASS - sliding, rear (R.H.)

1шт.

5

A19847

GLASS - stationary, rear (L.H.)

1шт.

6

A19860

HANDLE - pull, rear glass

1шт.

7

A19860

WEATHER STRIP - cab, front

1шт.

8

A19863

WEATHER STRIP - cab, rear

1шт.

9

A19848

SEAL

DOOR - cab, R.H., Includes: Ref. 11 - 17

1шт.

10

A19849

DOOR - cab, L.H., Includes: Ref. 11 - 17

1шт.

11

A19856

GLASS - door

1шт.

12

A19859

MOULDING - door glass

1шт.

13

A19852

CATCH - door opening

1шт.

14

A19858

CLIP - rod guide

1шт.

15

A19857

ROD - door holddown

1шт.

16

A19854

LATCH - cab door (R.H. door only)

1шт.

17

A19855

LATCH - cab door (L.H. door only)

1шт.

18

A19866

CATCH

- holddown, door

2шт.

19

L10157

BRACE - striker strap

2шт.

20

A19872

BUMPER - door, rubber

2шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

24

A19868

BRACKET - cab mounting, R.H. front

1шт.

25

A19869

BRACKET - cab mounting, L.H. front

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

27

195-525

WASHER,3/8", SAE

- plain, (3/8") Zinc plated

6шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

30

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

32

A36047

MOLDING

MOULDING - cab roof, rubber

2шт.

33

A18971

WEATHER STRIP - cab, door jam

2шт.

34

A19870

WEATHER STRIP - cab, lower door

2шт.

Выбрано товаров: 35
