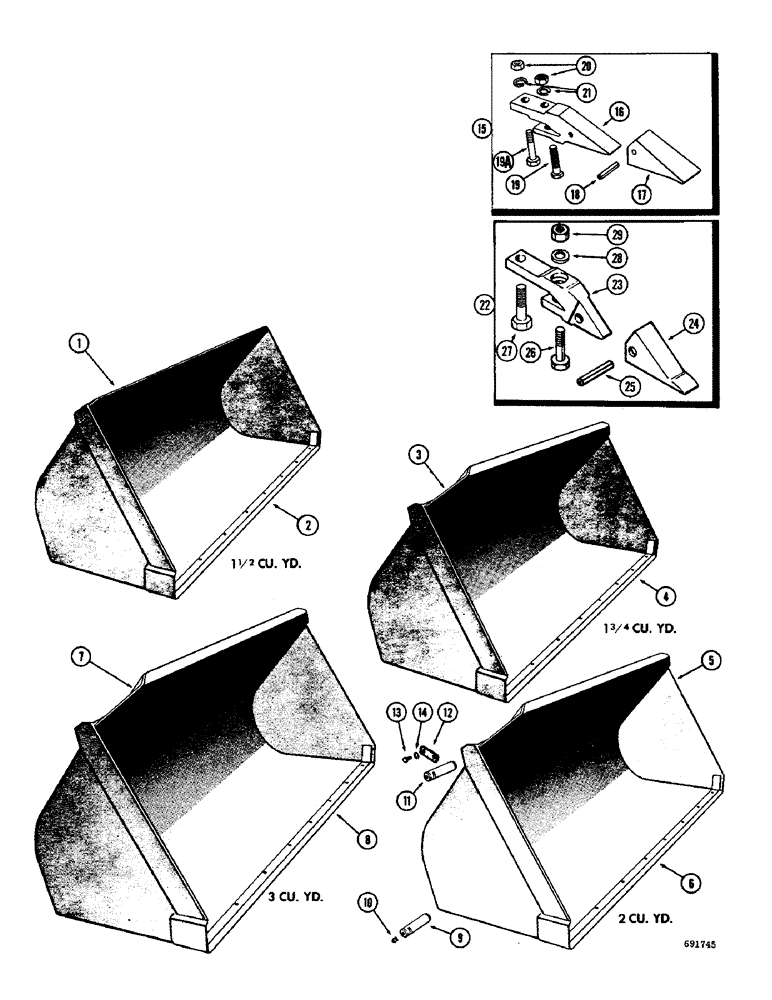

Запчасти Case W8B (194) - LOADER BUCKETS (OPTIONAL TYPES) (MACHINERY ITEM) (05) - UPPERSTRUCTURE CHASSIS

1

A18993

BUCKET - loader, 1-1/2 cu. yd. (Standard) Machinery item, Includes: Ref. 2

1шт.

2

A18590

CUTTING EDGE - bucket (90-5/8" wide)

1шт.

1

L13940

BUCKET - loader, 1-1/2 cu. yd. (Light material) Machinery item, Includes: Ref. 2

1шт.

2

L13913

EDGE

CUTTING EDGE - bucket

1шт.

1

A56280

BUCKET - loader, 1-1/2 cu. yd. (Heavy duty) Machinery item, Includes: Ref. 2

1шт.

2

A56284

CUTTING EDGE - bucket (92-7/8" wide)

1шт.

3

A18576

BUCKET - loader, 1-3/4 cu. yd. (Standard with spill guard) Machinery item, Includes: Ref. 4

1шт.

4

A18590

CUTTING EDGE - bucket (90-5/8" wide), 1-3/4 cubic yards

1шт.

3

L13910

BUCKET - loader, 1-3/4 cu. yd. (Light material) Machinery item, Includes: Ref. 4

1шт.

4

L13913

EDGE

CUTTING EDGE - bucket, 1-3/4 cubic yards

1шт.

5

A19014

BUCKET - loader, 2 cu. yd. (Standard) Machinery item, Includes: Ref. 6

1шт.

6

A19027

CUTTING EDGE - bucket (94-3/8" wide), 2 cubic yards

1шт.

5

L13923

BUCKET - loader, 2 cu. yd. (Light material) Machinery item, Includes: Ref. 6

1шт.

6

L13928

CUTTING EDGE

- bucket, 2 cubic yards

1шт.

7

A18998

BUCKET - loader, 3 cu. yd. (Light material) Machinery item, Includes: Ref. 8

1шт.

8

A19010

BLADE

CUTTING EDGE - bucket, 3 cubic yards

1шт.

9

A18597

PIN

- lower pivot, 3 cubic yards

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), 3 cubic yards

2шт.

11

A14105

PIN

- upper pivot, 3 cubic yards

2шт.

12

L12268

LOCK

- pin, 3 cubic yards

4шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3 cubic yards Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

14

92-6

LOCK WASHER,3/8"

3 cubic yards 3/8"

8шт.

15

A19119

TOOTH

ASSEMBLY - bucket (Use L16678), 3 cubic yards, Includes: Ref. 16 - 18

9шт.

15

L16678

TOOTH

ASSEMBLY - bucket (Replaces A19119), 3 cubic yards, Includes: Ref. 16 - 18

9шт.

16

NSS

NOT SOLD SEPARAT

SHANK - tooth, 3 cubic yards

1шт.

17

D39093

TOOTH

POINT - tooth, 3 cubic yards

1шт.

18

D39094

BUCKET TOOTH KEY

FLEX PIN - point, 3 cubic yards

1шт.

19

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

3 cubic yards Hex, 5/8"-11 x 2 1/2", G5

9шт.

19a

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

3 cubic yards Hex, 5/8"-11 x 3 1/4", G5

9шт.

20

25-1010

NUT,5/8"-11, G5

3 cubic yards 5/8"-11, G5

18шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 3 cubic yards 5/8"

18шт.

22

L10085

BUCKET TOOTH

TOOTH ASSEMBLY - bucket (Used with heavy duty bucket only), 3 cubic yards, Includes: Ref. 23 - 25

9шт.

23

NSS

NOT SOLD SEPARAT

SHANK - tooth, 3 cubic yards

1шт.

24

D39090

POINT

- tooth, 3 cubic yards

1шт.

25

D39448

PIN

FLEX PIN - point, 3 cubic yards

1шт.

26

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

HHCS - 5/8" - 11 NC x 3-3/4", 3 cubic yards

9шт.

27

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

3 cubic yards Hex, 5/8"-11 x 3 1/4", G5

9шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 3 cubic yards 5/8"

18шт.

29

25-1010

NUT,5/8"-11, G5

3 cubic yards 5/8"-11, G5

18шт.
