Запчасти Case W8B (192) - LOADER LIFT FRAME AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

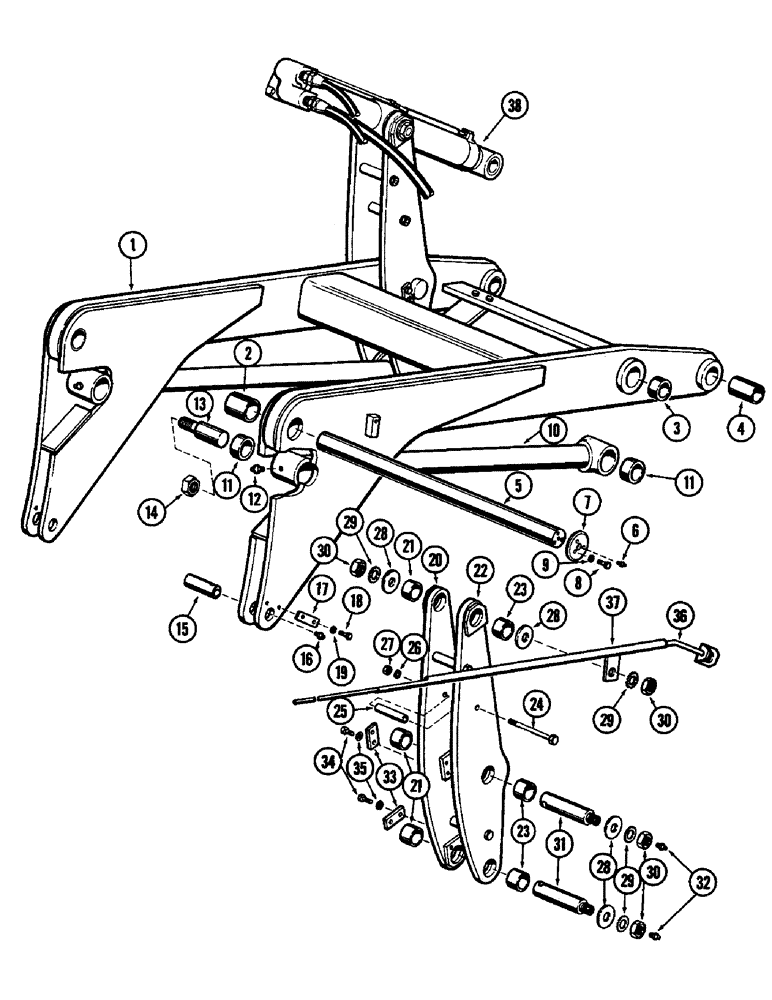

Схема запчастей Case W8B - (192) - LOADER LIFT FRAME AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

1

A18843

FRAME - loader lift, Includes: Ref. 2 - 4

1шт.

2

A16761

BUSHING

- pivot, lift arm

2шт.

3

A12059

BUSHING

- pivot, bell crank

4шт.

4

A56184

BUSHING

- bucket mounting

2шт.

5

A15964

SHAFT

- pivot, lift arm

1шт.

6

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

7

A15965

PLATE

- end, pivot shaft

2шт.

8

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4"

6шт.

9

92-8

LOCK WASHER,1/2"

6шт.

10

A18731

PIPE - bucket leveling, Includes: Ref. 11

2шт.

11

A12062

BUSHING

- pivot, leveling pipe

4шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

13

A12523

PIN

- rear pivot, leveling pipe

2шт.

14

131-216

LOCK

NUT - hex., lock (1-1/2" NF)

2шт.

15

A18908

PIN

- front pivot, lift cylinder

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

17

A14106

X

LOCK - pin

2шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

A18729

BELL CRANK - R.H. inner and L.H. outer, Includes: Ref. 21

2шт.

21

A12062

BUSHING

- pivot, bell crank

3шт.

22

A18728

BELL CRANK - R.H. outer and L.H. inner, Includes: Ref. 23

2шт.

23

A12062

BUSHING

- pivot, bell crank

3шт.

24

15-12124

HHCS - 3/4" - 10 NC x 7-3/4"

6шт.

25

A18734

SPACER - bell crank

6шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

27

25-1012

NUT,3/4"-10, G5

6шт.

28

A12071

WASHER

- spacer

8шт.

29

193-19

WASHER,1 1/4"

- lock, external Shakeproof (1-1/4")

8шт.

30

25-1520

NUT

- hex., jam (1-1/4" NF)

8шт.

31

A18735

PIN

- pivot, bell crank and leveling link

4шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

33

A14106

X

LOCK - pin

4шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

35

92-6

LOCK WASHER,3/8"

8шт.

36

A19117

GAUGE - level, bucket (Used with standard buckets)

1шт.

36

A16962

GAUGE - level, bucket (Used with Drott 4-In-1 bucket only)

1шт.

37

A12377

PIPE - level gauge (Used with standard buckets)

1шт.

37

NSS

NOT SOLD SEPARAT

PIPE - level gauge (Use A16962 assembly)

1шт.

38

A18598

CYLINDER

- hydraulic, loader tilt (R.H.) Parts list Figure 228

1шт.

38

A18599

CYLINDER - hydraulic, loader tilt (L.H.) Parts list Figure 228

1шт.

Выбрано товаров: 41
