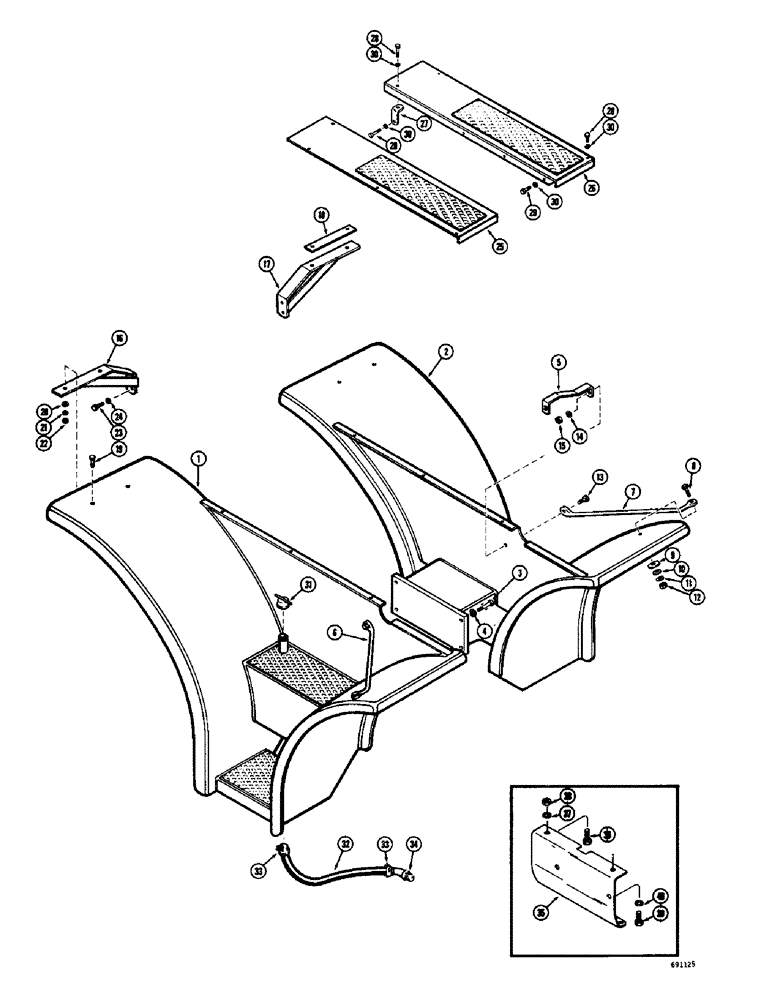

Запчасти Case W8B (134) - FENDERS (05) - UPPERSTRUCTURE CHASSIS

1

A19614

FENDER - loader, R.H.

1шт.

2

A19615

FENDER - loader, L.H.

1шт.

3

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS - 1/2" - 20 NF x 1-1/4"

8шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

8шт.

5

A19622

BRACE - fender, front

1шт.

6

A19628

BAR - support, R.H.

1шт.

7

A19629

BAR - support, L.H.

1шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

A19658

WASHER - spacer

2шт.

10

195-33

WASHER,1/2"

- plain () 1/2"

2шт.

11

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

12

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

13

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

2шт.

14

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

15

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

16

A19616

SUPPORT - fender, rear (R.H.)

1шт.

17

A19617

SUPPORT - fender, rear (L.H.)

1шт.

18

A19621

SPACER - fender support

2шт.

19

21-616

BOLT - step, 3/8" - 16 NC x 1"

4шт.

20

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

21

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

25

A19624

PLATE - step, R.H.

1шт.

26

A19625

PLATE - step, L.H.

1шт.

27

A17325

BRACKET - plate corner

2шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

30

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

16шт.

31

A19631

CAP - transmission filler

1шт.

32

A19633

HOSE,1.25" ID x 32.00", SAE 20R1

- Transmission filler 1.25" ID x 32.00", SAE 20R1

1шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

34

A19630

ELBOW -, Serial Range: hose-transmission

1шт.

35

A19623

PANEL - side, front (R.H.) For panel used on models without fenders see Figure 130

1шт.

36

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

37

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

38

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.
