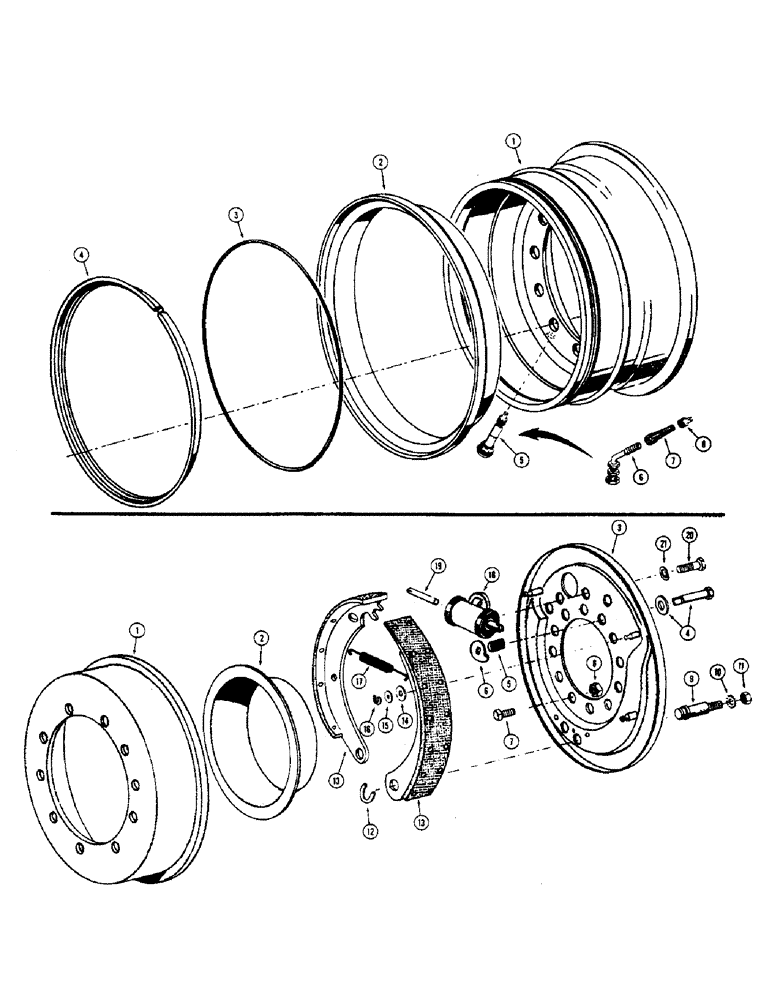

Запчасти Case W7E (186) - DRIVE WHEEL, BRAKE DRUM ASSEMBLY (06) - POWER TRAIN

1

A17307

WHEEL (STEERING)

WHEEL - drive, 12.00 x 24, 13.00 x 24 and 14.00 x 24 tires

4шт.

2

A13097

RING

- side, wheel rim

4шт.

3

A13099

O-RING,22 1" ID x 0.25"

"O" RING - seal, side ring

4шт.

4

A13098

RING

LOCK - side ring

4шт.

1

T41586

WHEEL - drive, 15.5 x 25 tires (8, 10 and 12 ply tires) When stock is exhausted, order A19121 wheel

4шт.

1

A19121

WHEEL - drive, 15.5 x 25 tires (8, 10 and 12 ply tires)

4шт.

2

A19122

RING

- side, wheel rim

4шт.

3

A19101

O-RING,6.6mm Thk x 590.55mm ID

"O" RING - seal, side ring

4шт.

4

A19123

RING

LOCK - side ring

4шт.

5

A20058

VALVE STEM

- Tire (Used with A17307 drive wheels)

4шт.

6

L11405

VALVE

- tire (Used with T41586 drive wheel)

4шт.

7

L11406

ADAPTER

- tire valve (Used with L11405 tire valve)

1шт.

8

L19664

VALVE STEM

CAP - valve (Used with L11406 valve adapter)

1шт.

8

L33706

VALVE

CAP - valve (Used with L11405 tire valve)

3шт.

L11614

AXLE

ASSEMBLY - front rigid, cpt. (PR60HX-14), Includes: Ref. 1 - 21

1шт.

L11613

AXLE

ASSEMBLY - rear steering, cpt. (PS50HX-21), Includes: Ref. 1 - 21

1шт.

1

L34026

DRUM - brake

2шт.

2

A18266

DEFLECTOR

- oil, wheel bearing

2шт.

A18269

PLATE ASSY.

BACKING PLATE ASSEMBLY - brake, Includes: Ref. 3 - 6

2шт.

3

NSS

NOT SOLD SEPARAT

BACKING PLATE - brake

1шт.

4

A12997

CAPTIVE WASHER SCREW

BOLT AND WASHER - cam actuating

2шт.

5

A13023

SPRING

- cam

2шт.

6

A13201

SHOE

CAM - brake shoe adjusting

2шт.

7

114-500

SCREW

BOLT - backing plate to axle housing (Front brake only)

24шт.

7

A18220

SCREW

BOLT - backing plate to steering housing (Rear brake only)

24шт.

8

131-11

NUT,9/16"-18, GB

LOCK, (Front brake only) 9/16"-18, GB

24шт.

9

A13024

PIN,29.39mm OD x 68.25mm L

- anchor, brake shoe

4шт.

10

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

4шт.

11

A13134

NUT

- special, anchor pin

4шт.

12

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

CLIP - anchor pin

4шт.

13

A12998

X

SHOE ASSEMBLY - brake (Includes linings), Includes: Ref. 14 - 21

4шт.

A13000

KIT

- lining, brake shoe (Includes 4 linings and rivets), Includes: Ref. 14 - 21

1шт.

14

A13128

WASHER

- guide pin (Large)

8шт.

15

A13129

WASHER

- guide pin (Small)

8шт.

16

A13127

WASHER

CLIP - guide pin

8шт.

17

A13002

SPRING

- return, brake shoe

2шт.

18

A12985

CYLINDER

- brake, wheel (Parts list figure 124)

2шт.

19

A12983

ROD

PUSH ROD - wheel cylinder

4шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

21

92-6

LOCK WASHER,3/8"

4шт.

A18271

PIN,11.11mm OD x 33.34mm L

dowel, short

1шт.

A18272

GUIDE PIN

dowel, long

1шт.
