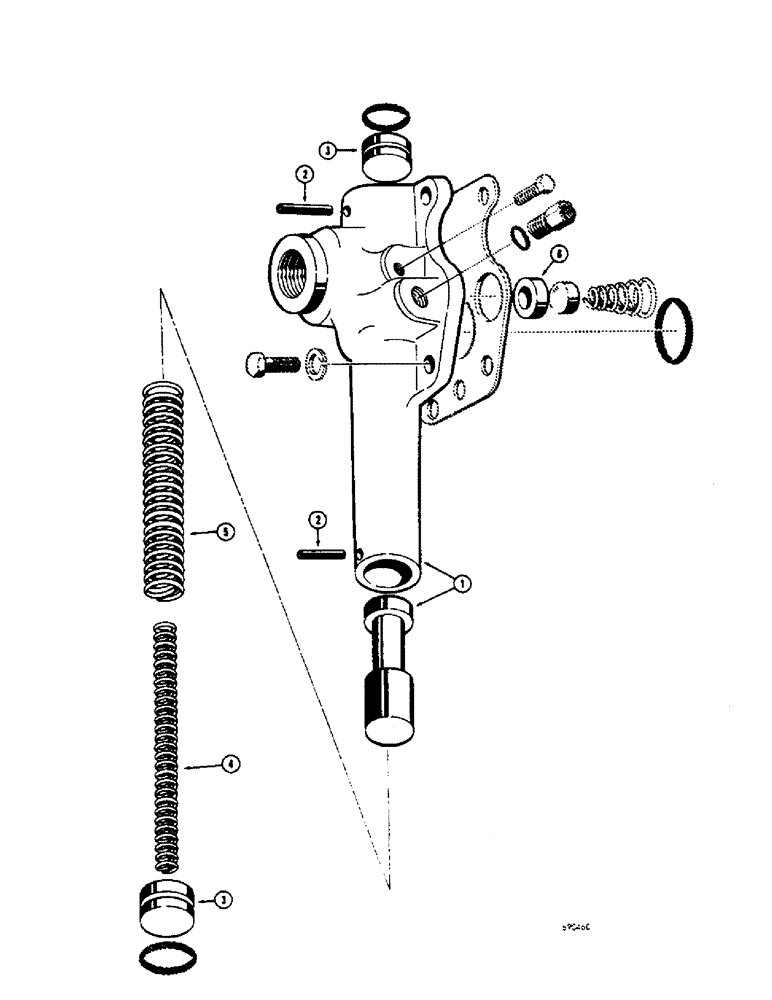

Запчасти Case W7E (174) - L30323 CONVERTER REGULATING VALVE (06) - POWER TRAIN

L30323

KIT

VALVE ASSEMBLY - pressure regulating, converter, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY AND PLUNGER - valve

1шт.

2

A18037

ROLL PIN

PIN - roll, valve stop retaining

2шт.

3

A18038

STOP

- valve

2шт.

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

1шт.

Located above Ref. 3 on illustration.

1шт.

4

L30048

VALVE SPRING

SPRING - inner, valve

1шт.

5

L30049

VALVE SPRING

SPRING - outer, valve

1шт.

6

A18002

SEAT

- safety valve

1шт.

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

1шт.

Located to the right of Ref. 6 in illustration.

1шт.
