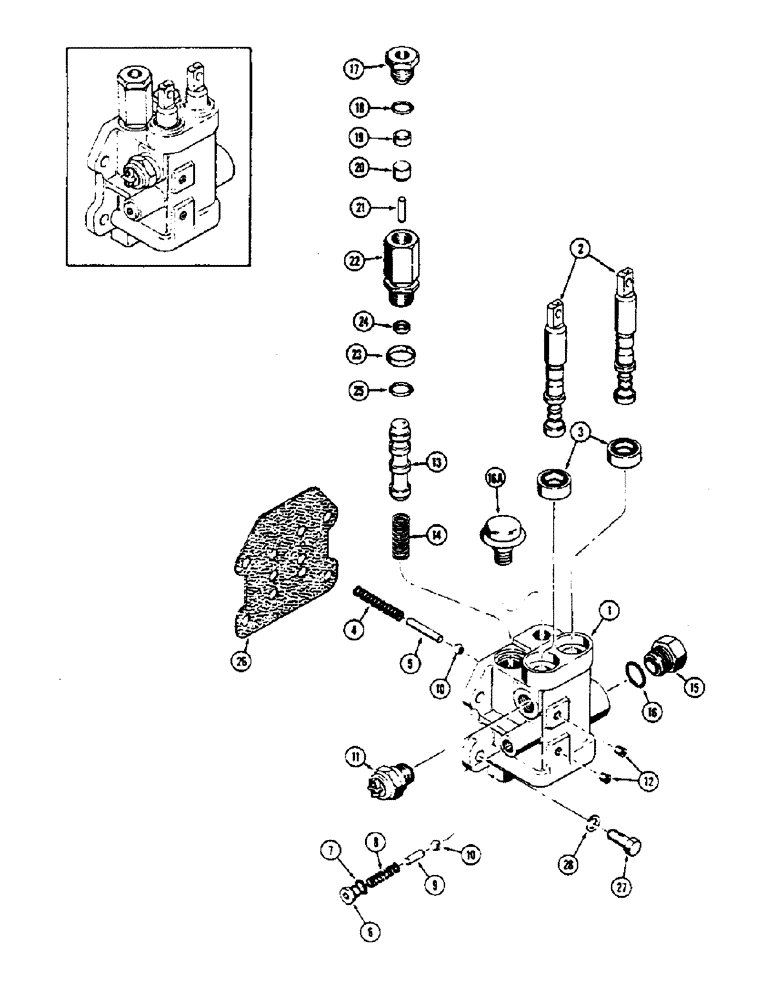

Запчасти Case W7E (167A) - TRANSMISSION, T42512 TRANSMISSION CONTROL VALVE, (TRACTOR SN. 9900001 & AFTER) (06) - POWER TRAIN

L10713

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 28

1шт.

T42512

VALVE

- transmission control (Tractor ser. no. 9900001 and after), Includes: Ref. 1 - 12

1шт.

Refs. are components of L33804 transmission control valve repair kit.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

L33802

FILTER ASSY

SPOOL - valve, manual control

2шт.

3

A17949

OIL SEAL

- wiper, valve spool

2шт.

4

A17954

VALVE SPRING

SPRING - detent

1шт.

5

A17959

AXLE PIN

PIN - detent stop

1шт.

6

278548

PLUG,Hex, 7/16"-20 ORB

- Detent, Incl Ref 7 Hex Soc, 7/16"-20 ORB

1шт.

7

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

8

11403

SPRING

- detent

1шт.

9

L33803

STOP

- detent

1шт.

10

211-11

BALL,3/8" Dia

- detent, . 3/8" Dia

2шт.

11

A55882

SOLENOID SWITCH

SWITCH - neutral start

1шт.

12

221-850

PLUG,Hex Soc, 1/16"-27

- pipe

2шт.

13

T42513

FILTER ASSY

SPOOL - valve, slave

1шт.

Refs. are components of L33804 transmission control valve repair kit.

1шт.

14

A17946

VALVE SPRING

SPRING - spool return

1шт.

Refs. are components of L33804 transmission control valve repair kit.

1шт.

15

218-5093

ADAPTER,#8 MALE ORB (ORING) TO # 6 FEMALE NPT (PIPE)

ADAPTER - tube to valve, Includes: Ref. 16

1шт.

Refs. are components of L33804 transmission control valve repair kit.

1шт.

16a

A17947

BREATHER

- air, transmission

1шт.

L30041

PISTON ASSY.

CYLINDER ASSEMBLY - slave piston, Includes: Ref. 17 - 25

1шт.

17

A17944

PLUG

- stop

1шт.

18

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

19

A17942

CUP

- piston

1шт.

20

A17941

SPACER

- piston cup

1шт.

21

A17940

AXLE PIN

PIN - push, piston

1шт.

22

A17943

HOUSING

- piston

1шт.

23

L30394

SEAL,23.02mm ID x 27mm OD x 6.35mm Thk

- piston

1шт.

24

A17945

GASKET

SEAL - oil, push pin

1шт.

25

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, piston housing

1шт.

26

L33805

GASKET

- mounting, valve

1шт.

27

13-718

SCREW,Hex, 7/16" - 14 x 1 1/8", Gr 5

BOLT, Hex, 7/16"-14 x 1 1/8", G5, Full Thd

4шт.

28

92-7

LOCK WASHER,7/16"

4шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

Refs. are components of L33804 transmission control valve repair kit.

1шт.
