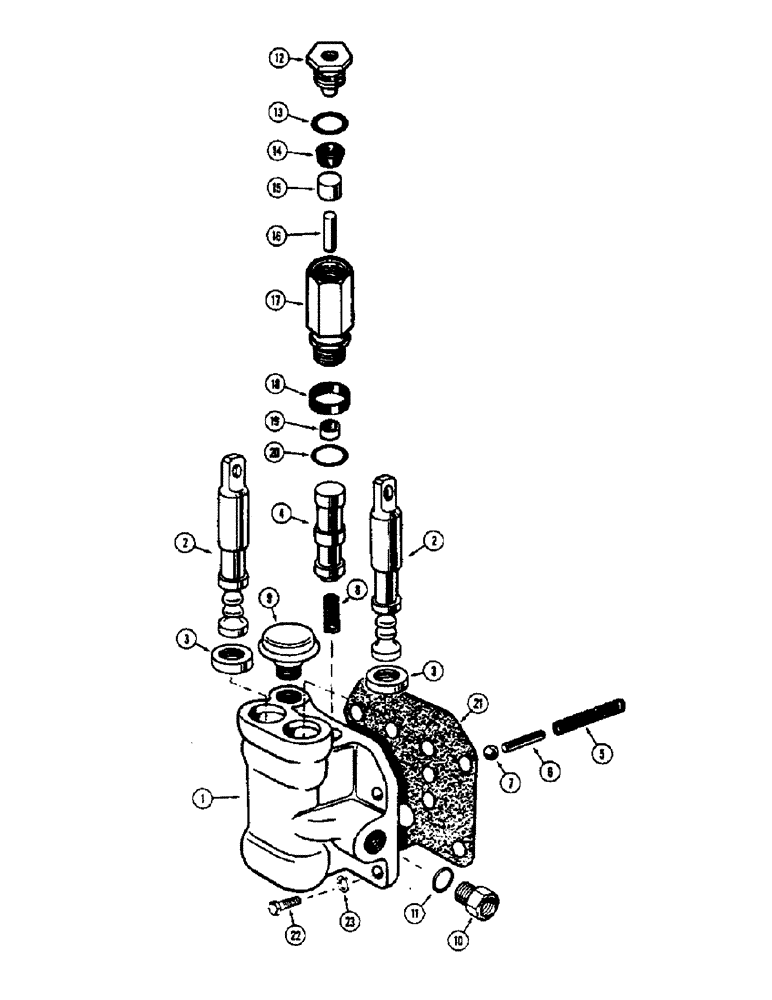

Запчасти Case W7E (166) - TRANSMISSION, L30322 TRANSMISSION CONTROL VALVE, (BEFORE TRACTOR SN. 9900001) (06) - POWER TRAIN

L10713

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 23

1шт.

L30322

REPAIR KIT

VALVE - transmission control (Before tractor ser. no. 9900001) When stock is exhausted, order L33804 transmission control valve repair kit (See figure 167A for kit components), Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

A40203

SPOOL - valve, manual control

2шт.

3

A17949

OIL SEAL

- wiper, valve spool

2шт.

4

A40204

SPOOL

- valve, slave

1шт.

5

A17954

VALVE SPRING

SPRING - detent

2шт.

6

A17959

AXLE PIN

PIN - detent stop

2шт.

7

211-11

BALL,3/8" Dia

- detent, . steel 3/8" Dia

2шт.

8

A17946

VALVE SPRING

SPRING - control valve

1шт.

9

A17947

BREATHER

- air, transmission

1шт.

10

218-5093

ADAPTER,#8 MALE ORB (ORING) TO # 6 FEMALE NPT (PIPE)

ADAPTER - tube to valve, Includes: Ref. 11

1шт.

L30041

PISTON ASSY.

CYLINDER ASSEMBLY - slave piston, Includes: Ref. 12 - 20

1шт.

12

A17944

PLUG

- stop

1шт.

13

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - seal, stop plug

1шт.

14

A17942

CUP

- piston

1шт.

15

A17941

SPACER

- piston cup

1шт.

16

A17940

AXLE PIN

PIN - push, piston

1шт.

17

A17943

HOUSING

- piston

1шт.

18

L30394

SEAL,23.02mm ID x 27mm OD x 6.35mm Thk

- piston

1шт.

19

A17945

GASKET

SEAL - oil, push pin

1шт.

20

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - seal, piston housing

1шт.

21

A17951

GASKET

- mounting, valve

1шт.

22

13-718

SCREW,Hex, 7/16" - 14 x 1 1/8", Gr 5

BOLT, Hex, 7/16"-14 x 1 1/8", G5, Full Thd

4шт.

23

92-7

LOCK WASHER,7/16"

4шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - seal

1шт.
