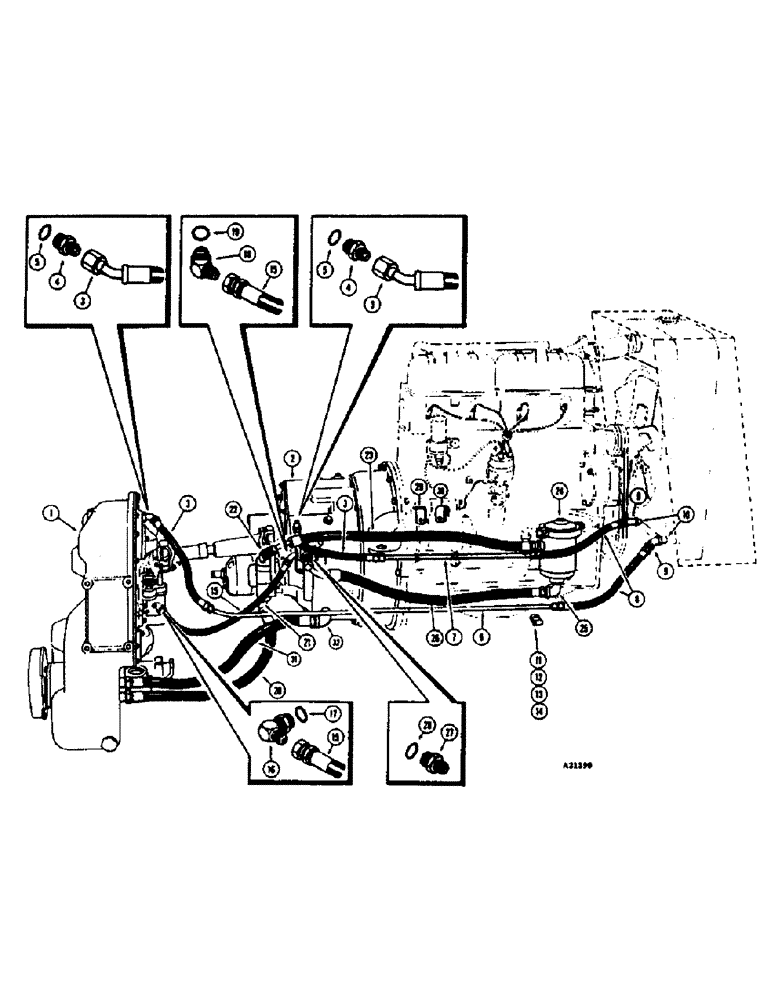

Запчасти Case W7E (154) - CONVERTER AND TRANSMISSION, HYDRAULICS AND COOLING SYSTEM (06) - POWER TRAIN

1

L10713

TRANSMISSION ASSEMBLY - complete (Parts list figure 158-166)

1шт.

2

L10714

CONVERTER

TORQUE CONVERTER - engine (Parts list figure 168)

1шт.

3

L10709

HOSE ASSY.

HOSE - transmission and torque converter to radiator (17-3/4" long)

1шт.

4

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal

1шт.

6

L41297

TUBE - transmission hose to radiator 0.625" OD x 38, 3" L

1шт.

7

L41296

TUBE,0.625" OD x 21" L

- converter hose to radiator

1шт.

8

A12495

HOSE

- transmission and coverter tubes to radiator, at radiator (17-5/8" long)

2шт.

9

221-1368

ELBOW,45 Degree, 1/2" NPT

- 45 degrees, hose to radiator (1/2" NPT)

2шт.

10

221-1185

FITTING

NIPPLE - pipe, elbow to radiator (1/2" NPT)

2шт.

11

A12497

CLAMP - oil cooler tube

4шт.

12

A28893

BUSHING

SPACER - tube clamp

4шт.

13

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.C. hex

4шт.

14

131-124

NUT

- Tinnerman (5/16" NC)

4шт.

15

L10710

HOSE,0.38" ID x 28.20", SAE 100R3

- converter pressure regulating valve to transmission control valve (28-3/16" long)

1шт.

16

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. Ref. 17 90º, 9/16"-18, 37º x 3/4"-16, O-Ring

1шт.

18

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- adjustable, 45 degrees, Includes: Ref. 19

1шт.

20

A17315

HOSE

- suction, transmission case to converter charging pump (27" long)

1шт.

21

221-1406

ELBOW

- street, 45 degrees (1" NPT)

1шт.

22

A19599

ADAPTER

- special

1шт.

23

L15035

HOSE ASSY.

HOSE - converter charging pump to filter (41" long)

1шт.

24

D22660

AIR INTAKE TUBE

FILTER - converter oil (Parts list figure 156)

1шт.

25

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

- street, 90 degrees (3/4" NPT)

1шт.

26

L15036

HOSE ASSY.

HOSE - return, filter to converter pressure regulating valve (36-5/16" long)

1шт.

27

A55729

ADAPTER

- special, Includes: Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal

1шт.

29

A17325

BRACKET - hose clamp

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

1шт.

30

A17323

CLAMP - filter hose

2шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

31

A17316

HOSE

- return, converter to transmission (30-1/2" long)

1шт.

32

221-1416

ELBOW,90 Degree, 1"-11 1/2, NPT

- street, 90 degrees (1" NPT)

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - seal

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - seal

1шт.
