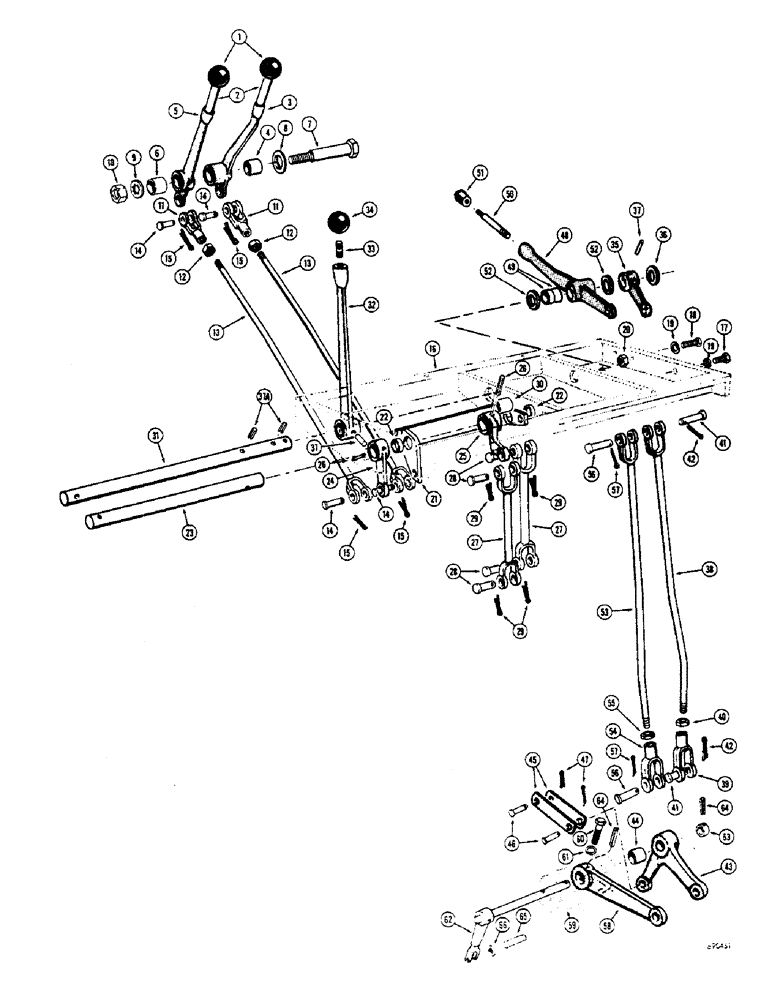

Запчасти Case W7E (150) - TRANSMISSION CONTROLS (06) - POWER TRAIN

1

A19416

BALL

KNOB - control lever

2шт.

2

A18936

EXTENSION

- control lever

2шт.

3

A17170

CONTROL LEVER

LEVER CONTROL - power range, Includes: Ref. 4

1шт.

4

L10083

BUSHING

- lever

1шт.

5

A17171

LEVER - control, forward-reverse, Includes: Ref. 6

1шт.

6

L10083

BUSHING

- lever

1шт.

7

A17175

PIN

- pivot, control lever

1шт.

8

A26462

WASHER

- pivot pin

1шт.

9

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

10

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod to control levers

2шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

13

A17196

ROD

- control levers to lower pivot levers

2шт.

14

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

15

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

16

A17177

FRAME - seat support and transmission control mtg.

1шт.

17

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

21

A17183

LEVER

- pivot, power range control, Includes: Ref. 22

1шт.

22

A17186

BUSHING

- lever

2шт.

23

A17189

SHAFT

- lever mounting

1шт.

24

A17191

LEVER

- pivot, forward-reverse (Outer)

1шт.

25

A17190

CONTROL LEVER

LEVER - pivot, forward-reverse (Inner)

1шт.

26

135-76

GROOVED PIN,1/4" x 1 1/4", Type A

PIN, GROOVED, 1/4" x 1 1/4, Type A

2шт.

27

A17195

FILTER ASSY

ROD - control, Serial Range: lever-transmission

2шт.

28

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

29

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

30

B18239

SPACER,3/4" Pipe x 3/4"

- pivot lever

1шт.

31

A17192

SHAFT

- mounting, range selector and rear axle shift-out

1шт.

32

A17193

LEVER - range selector, mechanical

1шт.

33

A16775

STUD

EXTENSION - control lever

1шт.

34

A18852

KNOB

- control lever

1шт.

35

A17194

LEVER

- pivot, range control

1шт.

36

A26462

WASHER

-, Serial Range: lever-frame

1шт.

37

135-76

GROOVED PIN,1/4" x 1 1/4", Type A

PIN, GROOVED, 1/4" x 1 1/4, Type A

2шт.

37a

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

38

A18411

ROD

- connecting, lever to range selector bellcrank

1шт.

39

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod end

1шт.

40

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

1шт.

41

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke, 1/2"

2шт.

42

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

43

A17158

BELLCRANK - yoke to valve link, Includes: Ref. 44

1шт.

44

A28042

BUSHING

- bellcrank

1шт.

45

A17168

LINK

- connecting, bellcrank to range selector spool

2шт.

46

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

47

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

48

A17187

CONTROL LEVER

LEVER - control, rear axle shift-out, Includes: Ref. 49

1шт.

49

A12018

BUSHING

- control lever

2шт.

50

A17198

ROD

EXTENSION - control lever

1шт.

51

A18852

KNOB

- control lever

1шт.

52

A26462

WASHER

- lever spacer

1шт.

53

A18410

ROD

- connecting control lever to shift-out control

1шт.

54

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod end

1шт.

55

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

56

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke 1/2"

2шт.

57

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

58

A17164

LEVER

- shift-out, lower

1шт.

59

A17155

BRACKET

- mounting, pivot shaft

1шт.

60

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

61

92-8

LOCK WASHER,1/2"

2шт.

62

L12339

SHAFT

- rear axle shift-out

1шт.

63

A17167

COLLAR - shaft retainer

1шт.

64

135-342

GROOVED PIN,3/16" x 1 1/4", Type F

PIN, GROOVED, 3/16" x 1 1/4", Type F

2шт.

65

L10118

PIN

- shift-out control to valve spool

1шт.

66

A27795

RING

- pin retaining

2шт.
