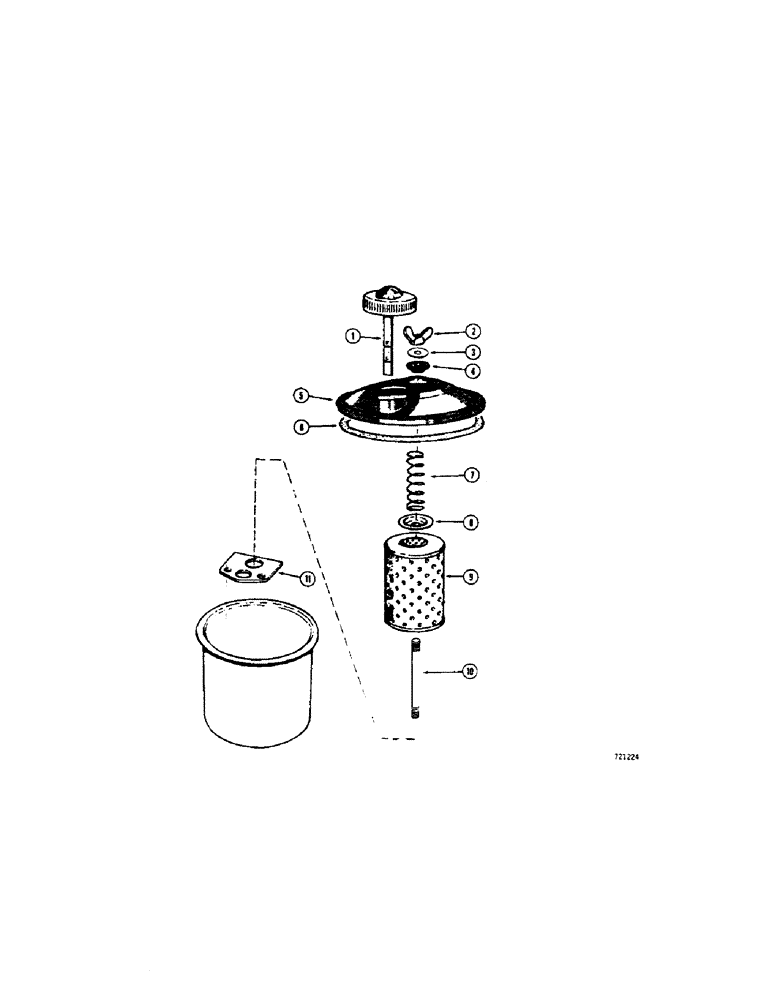

Запчасти Case W7E (110[1]) - A17531 POWER STEERING RESERVOIR (05) - STEERING

1

A24137

GAUGE ASSY.

CAP AND GAUGE ASSEMBLY - filler, Includes: Ref. 1 - 12

1шт.

2

129-419

WING NUT,5/16"-18

NUT - wing, 5/16" N.F.

1шт.

3

A30831

WASHER

- special, wing nut

1шт.

4

A30830

GASKET

- cover stud

1шт.

A18058

COVER

AND GASKET ASSEMBLY - reservoir, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - reservoir

1шт.

6

A24138

GASKET

- cover

1шт.

7

A18059

SPRING

- element

1шт.

8

A22714

SEAT

- element

1шт.

9

A18061

FILTER, ELEMENT

ELEMENT - oil filter

1шт.

10

A18062

STUD

- cover retaining

1шт.

11

A18060

PLATE - reinforcement

1шт.

12

A11027

GASKET

- reservoir intake and return (Not illustrated)

2шт.
