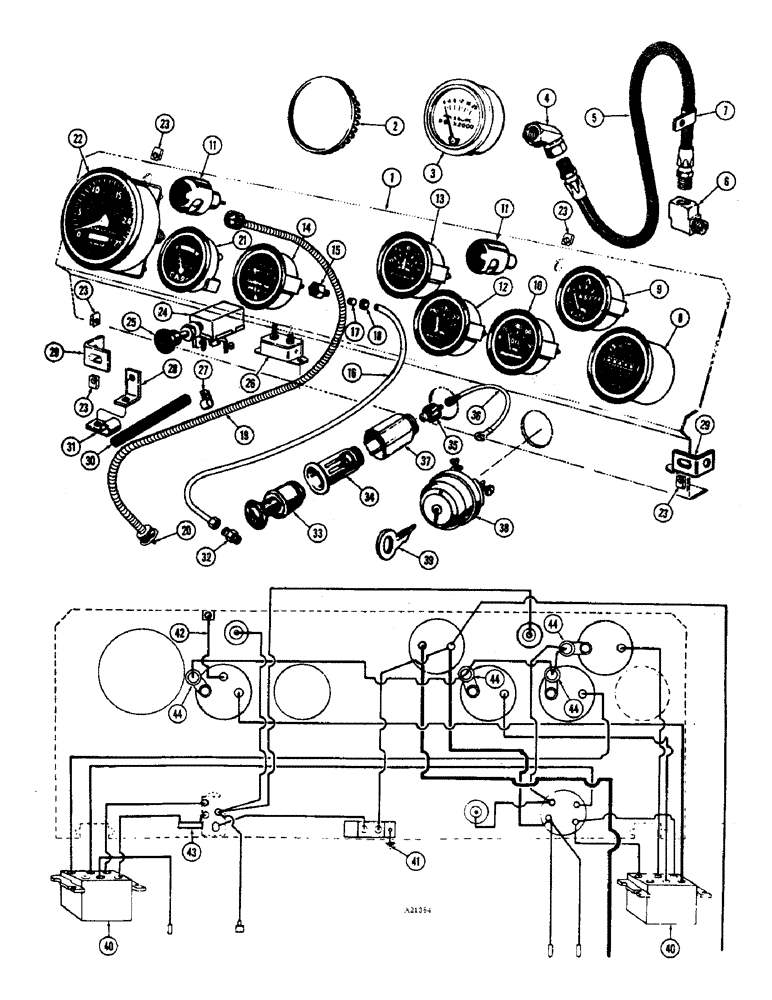

Запчасти Case W7E (082) - INSTRUMENT PANEL AND GAUGES, DIESEL AND GAS (04) - ELECTRICAL SYSTEMS

1

L42243

PANEL - instrument

1шт.

2

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button, gauge opening (Used in place of hourmeter or hydraulic pressure gauge)

1шт.

3

A19522

ELECTRICAL GAUGE

GAUGE - hydraulic pressure (Optional)

1шт.

4

218-957

ADAPTER - pressure, Serial Range: gauge-hose

1шт.

5

A19426

HOSE - adapter to control valve

1шт.

6

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- hose to control valve

1шт.

7

A26696

NO LONGER SERVICED

CLIP - hose to brake cylinder bracket

1шт.

8

L13298

ELECTRICAL GAUGE

GAUGE - hourmeter (Optional)

1шт.

9

A19345

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

10

A19346

ELECTRICAL GAUGE

GAUGE - engine oil pressure

1шт.

11

A7642

LAMP

- assembly - dash panel, 12 volt (Parts list figure 90)

2шт.

11

A14737

LAMP

- assembly - dash panel, 24 volt (Parts list figure 90)

2шт.

187-1007

SCREW

- #6 x 5/16" self tapping, rd. hd.

4шт.

12

A19347

ELECTRICAL GAUGE

GAUGE - engine temperature

1шт.

13

A55699

ELECTRICAL GAUGE

GAUGE - ammeter, 60 amp.

1шт.

14

A56447

ELECTRICAL GAUGE

GAUGE - clutch pressure

1шт.

15

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - flex. fitting

1шт.

16

A17267

TUBE

- pressure, Includes: Ref. 17 and 18

1шт.

17

222-100

TUBE NUT,1/8" Tube

SLEEVE - flex. fitting

1шт.

18

222-110

TUBE NUT,3/8"-24

NUT - flex. fitting

1шт.

19

A12430

HOUSING

CABLE ASSEMBLY - tachometer drive (Diesel), Includes: Ref. 20

1шт.

20

A13200

CABLE

- tachometer drive

1шт.

19

A12627

CABLE PULLING GRIP

CABLE ASSEMBLY - tachometer drive (Gas), Includes: Ref. 20

1шт.

20

A13199

CABLE

- tachometer drive

1шт.

21

A13756

GAUGE

- converter oil temperature (When stock is exhausted, order L51460 gauge for service)

1шт.

21

L51460

ELECTRICAL GAUGE

GAUGE - converter oil temperature

1шт.

22

A11190

TACHOMETER

- engine (Includes hourmeter)

1шт.

23

131-135

SPRING NUT,Tinn, U, 1/4"-20

5шт.

24

A20201

SWITCH

- headlight

1шт.

25

A7817

KNOB

- light switch

1шт.

26

A22877

BREAKER,40A

CIRCUIT BREAKER - light switch

1шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

129-27

NUT,Hex, #10 - 32

- #10 N.F. hex.

2шт.

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- #10 - 3/8" N.C., machine rd. hd.

2шт.

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex.

2шт.

27

A20541

CLIP

- tachometer cable

2шт.

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

28

A17121

BRACKET - tachometer cable

1шт.

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25-104

NUT,1/4"-20, G5

1шт.

29

A17270

CLIP - mounting instrument panel

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 1/4" x 1" NC hex Z.P.

2шт.

195-521

WASHER,5/16", SAE

- plain 1/4" Z.P.

2шт.

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

2шт.

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C. mach., truss hd. Z.P.

4шт.

30

A19127

LOOM - protective (Gas models only)

1шт.

31

A7922

CLIP

- cable to firewall bracket

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

32

222-600

FITTING,5/16"-24 x 1/8 NPT, Comp

CONNECTOR - 1/8" x 1/8"

1шт.

33

A24134

CIGARETTE LIGHTER

LIGHTER - cigarette

1шт.

34

G44916

SOCKET

- lighter, Includes: Ref. 35 and 36

1шт.

35

G44918

CIRCUIT BREAKER - protection

1шт.

36

G44022

ELECTRICAL WIRE

WIRE -, Serial Range: lighter-switch

1шт.

37

G46381

SHELL - retainer, lighter socket

1шт.

38

L17820

SWITCH

- starting, Includes: Ref. 39

1шт.

REF. 38 NUT FOR THIS SWITCH IS PART D77654.

1шт.

39

A20346

KEY

- starting switch

1шт.

L43079

HARNESS - wiring, instrument panel (Diesel) not illustrated, Includes: Ref. 40

1шт.

40

A13742

BLOCK - harness connector

2шт.

L41529

HARNESS

- wiring, instrument panel (Gas) not illustrated, Includes: Ref. 40

1шт.

40

A13742

BLOCK - harness connector

2шт.

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- #6 x 1/2" N.C. machine, rd. hd.

4шт.

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

4шт.

129-5

NUT,#6-32

4шт.

41

A56181

ELECTRICAL WIRE

WIRE - ground, circuit breaker

1шт.

193-72

LOCK WASHER

LOCKWASHER - 3/8" internal/external Z.P.

1шт.

42

A21625

WIRE - ground, gauge to panel bracket (Used with A13756 gauge)

1шт.

43

A14900

RESISTOR

- taillight (Diesel)

1шт.

43

T42343

RESISTOR - taillight (Gas)

1шт.

44

A17349

HEAD

RESISTOR - voltage gauge (Diesel models only)

4шт.

195-12

WASHER,#10

- plain (Diesel models only) #10

4шт.
