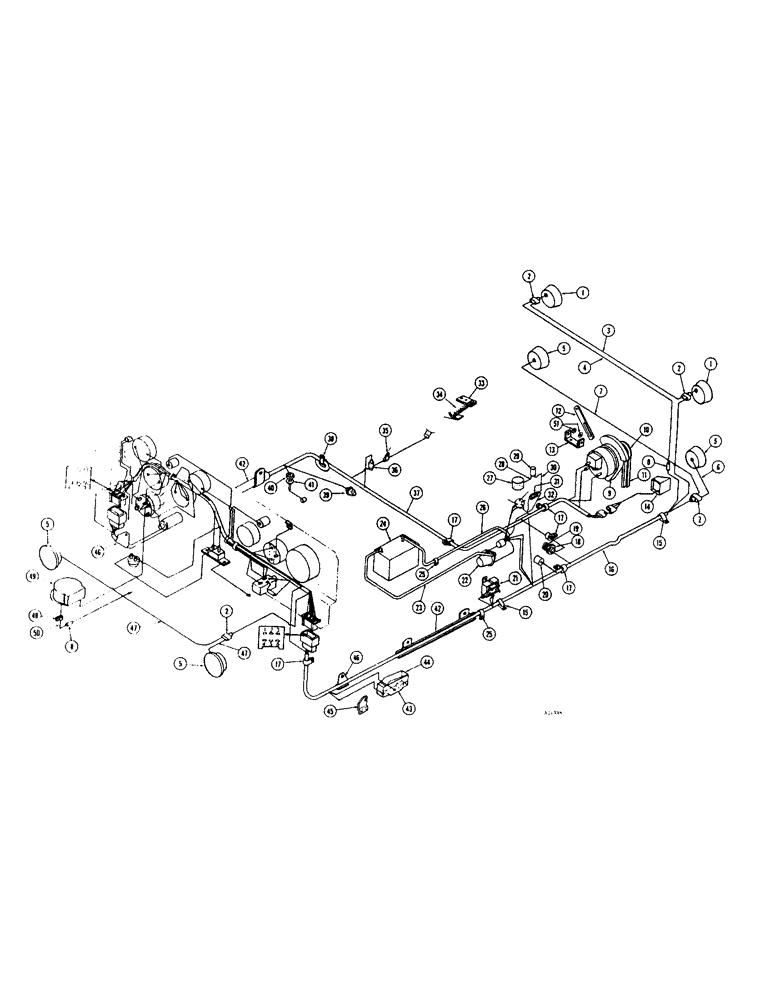

Запчасти Case W7E (078) - ELECTRICAL SYSTEM, GAS ENGINE (04) - ELECTRICAL SYSTEMS

1

T41141

LIGHT - stop and tail (Parts list figure 88 (2) )

2шт.

2

A8210

CONNECTOR, ELEC

CONNECTOR Wire, Serial Range: light-harness

4шт.

3

A13252

ELECTRICAL WIRE

WIRE RH to LH light

1шт.

4

A13251

ELECTRICAL WIRE

WIRE RH to LH connector

1шт.

5

D42097

SPARE PART Front and rear (Parts list figure 88)

4шт.

6

T41142

ELECTRICAL WIRE

WIRE LH rear light

1шт.

7

T41144

ELECTRICAL WIRE

WIRE RH rear light

1шт.

8

A27213

SPARE PART Harness to horn and rear light

2шт.

9

A41340

ALTERNATOR

Electrical, 12 volt (Parts list figure 64)

1шт.

9

104022A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

9

104022A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 55 Amp Alternator

1шт.

129-17

NUT,Hex, #10 - 24

Terminal studs

3шт.

10

A41057

PULLEY

Alternator drive

1шт.

11

L19082

BELT

Drive, Alternator & fan (Set of 2)

1шт.

12

A34548

STRAP

Alternator adjustment

1шт.

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

ND LOCKWASHER

1шт.

13

A38492

BRACKET

Alternator mounting

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

92-6

LOCK WASHER,3/8"

3шт.

14

L11351

REGULATOR

SPARE PART Voltage (12 volt)

1шт.

165-26

HEX SOC SCREW,#10 - 24 x 1 1/4"

Machine

3шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

3шт.

129-17

NUT,Hex, #10 - 24

3шт.

15

A22880

CLIP

Harness to mounting bolts

2шт.

16

T41431

HARNESS - wiring, LH (Used before S/N 9900001)

1шт.

16

T42484

HARNESS - wiring, RH (S/N 9900001 and after)

1шт.

17

49838

CLAMP

, Serial Range: Harness-chassis

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

195-18

WASHER,1/4"

1шт.

92-4

LOCK WASHER,1/4"

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

18

D28798

SWITCH

Oil pressure

1шт.

19

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

Reducer

1шт.

20

A35031

SENDER UNIT

SENDER Engine oil pressure

1шт.

129-27

NUT,Hex, #10 - 32

1шт.

21

L11343

BREAKER

CIRCUIT - alternator

1шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

Machine

2шт.

195-512

WASHER,#10

2шт.

22

REF

INSTRUCTION

STARTER - engine (See figures 70 and 71A for proper starter)

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

92-8

LOCK WASHER,1/2"

3шт.

23

L11393

CABLE

Negative terminal to starter ground (36" long)

1шт.

24

D44175

DRY BATTERY

Electrical, 12 volt

1шт.

25

49836

CLAMP

Harness to chassis and positive terminal

2шт.

113-517

BOLT,Hex, 9/16" - 12 x 2-1/2", Gr 5

BOLT - 1/2" x 1-1/4" N.C. hex Z.P.

1шт.

192-23

LOCK WASHER,1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

26

L11392

CABLE

Positive terminal to solenoid (35" long)

1шт.

27

A58810

SPARE PART Electrical (Parts list figure 60)

1шт.

28

A29180

CABLE

WIRE -, Serial Range: distributor-coil

1шт.

29

A58811

COIL

Electrical

1шт.

30

A58812

SPARE PART, Serial Range: Coil-resistor

1шт.

31

A24504

RESISTOR

Electrical

1шт.

32

A8743

SPARE PART Starter, Serial Range: solenoid-resistor

1шт.

33

A19069

PLATE - chassis engine support

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

92-8

LOCK WASHER,1/2"

2шт.

34

L40888

CABLE PULLING GRIP

Ground, Serial Range: engine-chassis

1шт.

35

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

To block

1шт.

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

92-6

LOCK WASHER,3/8"

1шт.

36

F13156

SENDER UNIT

SENDER Engine temperature

1шт.

37

T41432

SPARE PART Wiring RH

1шт.

38

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLIP - harness to mounting bolt

1шт.

39

A13795

SENDER UNIT

SENDER Converter temperature

1шт.

195-12

WASHER,#10

1шт.

92-3

LOCK WASHER,#10

1шт.

129-27

NUT,Hex, #10 - 32

1шт.

40

A17219

UNIT

SENDING - fuel gauge

1шт.

41

A61161

GASKET

SPARE PART Sending unit

1шт.

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

Machine

5шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

5шт.

42

A28674

SPARE PART CONDUIT - harness protector

2шт.

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

4шт.

92-4

LOCK WASHER,1/4"

4шт.

25-104

NUT,1/4"-20, G5

4шт.

43

A19513

SWITCH

SWITCH - Neutral start (Used before S/N 9900001)

4шт.

44

L11390

SPARE PART Neutral start switch (Used before S/N 9900001)

1шт.

45

A19514

SPARE PART BRACKET - mounting, neutral start switch (Used before S/N 9900001)

1шт.

173-68

SCREW,Sl Rnd Hd, #6 - 32 x 1 1/4"

Machine #6 x 1-1/4" N.C. rd. hd.

2шт.

192-5

LOCK WASHER,#6

2шт.

129-5

NUT,#6-32

2шт.

46

L12289

CLIP

Harness to mounting bolt

2шт.

46a

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

Neutral start wires to battery box bracket (Not shown)

2шт.

47

T41143

ELECTRICAL WIRE

WIRE Connector to front light

2шт.

48

A7922

CLIP

Horn wire

1шт.

49

A19581

HORN

Warning (Parts list figure 90)

1шт.

50

A13792

SPARE PART Horn

1шт.

51

A49402

SCREW,M5 x 10mm

SPACER - alternator mounting bracket

2шт.
