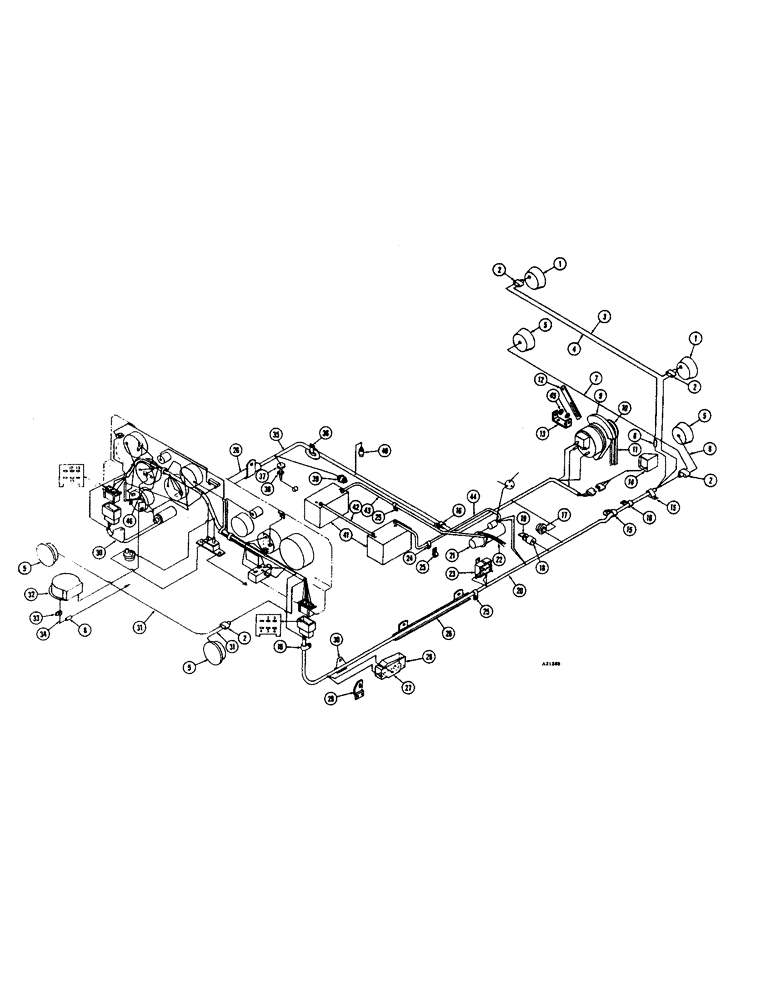

Запчасти Case W7E (074) - ELECTRICAL SYSTEM, DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

L11000

INTERIOR LIGHT

Stop and tail, 24 volt (Parts list figure 88 (2)

2шт.

2

A8210

CONNECTOR, ELEC

CONNECTOR Wire, Serial Range: light-harness

4шт.

3

A13252

ELECTRICAL WIRE

WIRE Connection, RH to LH light

1шт.

4

A13251

ELECTRICAL WIRE

WIRE Connection, RH to LH connector

1шт.

5

A55702

LIGHT

Front and rear (Parts list figure 88 (1) )

4шт.

6

T41142

ELECTRICAL WIRE

WIRE LH rear light

1шт.

7

T41144

ELECTRICAL WIRE

WIRE RH rear light

1шт.

8

A27213

SPARE PART Harness to horn and rear light

2шт.

9

A41360

ALTERNATOR

Electrical, 24 volt (Parts list figure 62)

1шт.

129-17

NUT,Hex, #10 - 24

Hex, terminal studs

3шт.

10

A41057

PULLEY

Alternator drive

1шт.

11

L19082

BELT

Drive, Alternator & fan (Set of 2)

1шт.

12

A34548

STRAP

Alternator adjustment

1шт.

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

AND LOCKWASHER

1шт.

13

A38492

BRACKET

Alternator mounting

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

92-6

LOCK WASHER,3/8"

3шт.

14

A75072

REGULATOR

Voltage, 24 volt

1шт.

165-26

HEX SOC SCREW,#10 - 24 x 1 1/4"

Machine

3шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

3шт.

129-17

NUT,Hex, #10 - 24

Hex

3шт.

15

A22880

CLIP

Harness to grill and oil cooler mtg. bolts

2шт.

195-103

WASHER,5/16"

2шт.

16

49838

CLAMP

, Serial Range: Harness-channel

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

192-21

LOCK WASHER,3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

17

D28798

SWITCH

Oil pressure

1шт.

18

A35031

SENDER UNIT

SENDER Engine, oil pressure

1шт.

129-27

NUT,Hex, #10 - 32

Hex

1шт.

19

221-401

ELBOW,45 Degree, 1/8"-27, NPT

Street

1шт.

20

L43078

HARNESS

Wiring, LH (Used before S/N 9900001)

1шт.

20

T42485

SPARE PART Wiring, LH (S/N 9900001 and after)

1шт.

21

REF

INSTRUCTION

STARTER - engine (See page 68 for proper starter)

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

(Used with A15485 and R20745 starters only)

1шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

(Used with R26136 starter only)

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Used with all starters)

2шт.

92-8

LOCK WASHER,1/2"

(Used with A15485 and R20745 starters only)

3шт.

L30674

WASHER

Special (Used with R26136 starter only)

3шт.

22

L40888

CABLE PULLING GRIP

Ground

1шт.

23

L11343

BREAKER

CIRCUIT - alternator

1шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

Machine

2шт.

195-512

WASHER,#10

2шт.

24

49836

CLAMP

Cable

1шт.

25

51200329

CLIP

, Serial Range: Harness-chassis

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

192-23

LOCK WASHER,1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

26

A28674

SPARE PART CONDUIT - harness protector

2шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

92-4

LOCK WASHER,1/4"

2шт.

25-104

NUT,1/4"-20, G5

2шт.

27

A19513

SWITCH

SWITCH - Neutral start (Used before S/N 9900001 only) See figure 167A, Ref. no. 11 for neutral start switch used on tractor S/N 9900001 and after

1шт.

28

L11390

SPARE PART Neutral start switch (Used before S/N 9900001 only)

1шт.

29

A19514

SPARE PART BRACKET - mounting, neutral start switch (Used before S/N 9900001 only)

1шт.

173-68

SCREW,Sl Rnd Hd, #6 - 32 x 1 1/4"

Machine, #6 x 1-1/4" rd. hd.

2шт.

192-5

LOCK WASHER,#6

2шт.

129-5

NUT,#6-32

2шт.

30

L12289

CLIP

Harness to mounting bolts

2шт.

30a

49853

TOOL

Neutral start wires to battery box bracket (Not shown)

2шт.

31

T41143

ELECTRICAL WIRE

WIRE Connector to front lights

2шт.

32

A19581

HORN

(Parts list figure 90)

1шт.

33

A7922

CLIP

Horn wire

1шт.

34

A13792

SPARE PART Horn to horn button

1шт.

34a

L50841

SPARE PART Horn to ignition switch (Not shown)

1шт.

35

L40892

HARNESS

Wiring, RH

1шт.

36

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLIP - harness to mounting bolt

1шт.

37

A17219

UNIT

SENDING - fuel gauge

1шт.

38

A11822

GASKET

Sending unit

1шт.

39

A13795

SENDER UNIT

SENDER Converter temperature

1шт.

195-12

WASHER,#10

1шт.

92-3

LOCK WASHER,#10

1шт.

129-27

NUT,Hex, #10 - 32

Hex

1шт.

40

A65588

SENDER UNIT

SENDER Engine temperature

1шт.

41

A39177

X

BATTERY - electrical, 12 volt (Wet charge) Use A38411

2шт.

41

A38411

DRY BATTERY

Electrical, 12 volt (Dry charge)

2шт.

42

A18926

CABLE

Jumper (32" long)

1шт.

43

L11393

CABLE

Negative terminal to starter ground (36" long)

1шт.

44

A18925

SPARE PART Positive terminal to solenoid (35" long)

1шт.

45

G49402

SHIM,.010" Thk

Alternator to bracket

2шт.

46

A9348

SPARE PART Terminal, horn and lighter

1шт.

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

Machine, #6 x 12 rd. hd.

1шт.

129-5

NUT,#6-32

1шт.
