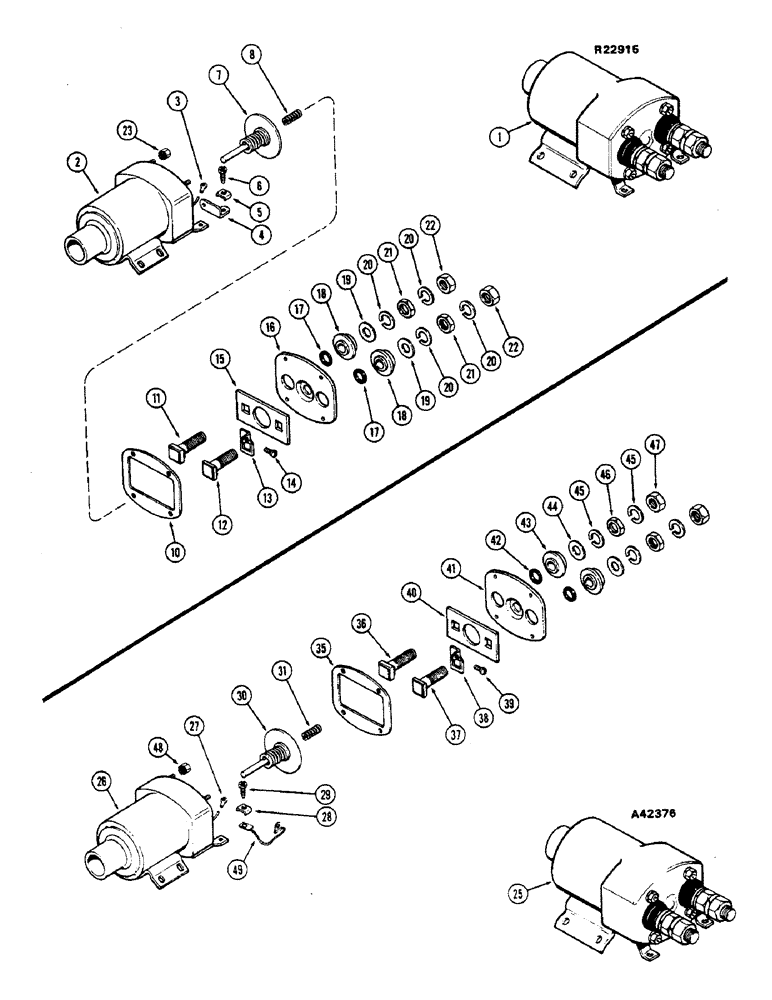

Запчасти Case W7E (072) - R22915 SOLENOID, (301B) DIESEL ENGINE, A42376 SOLENOID (04) - ELECTRICAL SYSTEMS

1

R22915

SOLENOID SWITCH

SOLENOID ASSY - (Delco #1119878), Includes: Ref. 1 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSY - (Includes coil)

1шт.

3

D30020

CLIP - terminal, coil lead

1шт.

4

R22994

CONNECTOR - ground

1шт.

5

R15182

CLIP

CLAMP - terminal

2шт.

6

D32502

SCREW,Hex, #10 - 32 x 3/8"

- clamp

2шт.

7

D32498

CONTACT

DISC ASSY - contact

1шт.

8

D32499

SPRING

- return, contact

1шт.

D29577

PLATE ASSY - terminal, Includes: Ref. 10 - 22

1шт.

10

A42260

GASKET

- terminal plate

1шт.

11

D32505

STUD

- battery terminal

1шт.

12

D32506

STUD

- field terminal

1шт.

13

D29910

SUPPORT

- coil lead

1шт.

14

175-92

SCREW - coil lead, #10 - 32 x 3/16" truss hd.

1шт.

15

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

16

D32504

COVER

PLATE - terminal

1шт.

17

D32508

INSULATOR

BUSHING - inside, term. stud

2шт.

18

D32510

BUSHING

- outside, term. stud

2шт.

19

D30006

WASHER

- terminal stud

2шт.

20

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

4шт.

21

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

23

D32500

NUT

- plate, #10 - 32 seal type

4шт.

25

A42376

SWITCH

SOLENOID ASSY - (Delco #1119848), A42376 solenoid, Includes: Ref. 26 - 49

1шт.

26

NSS

NOT SOLD SEPARAT

CASE ASSY - (Includes coil), A42376 solenoid

1шт.

27

D30020

CLIP - terminal, coil lead, A42376 solenoid

1шт.

28

A42407

CLAMP

- terminal, A42376 solenoid

1шт.

29

D32502

SCREW,Hex, #10 - 32 x 3/8"

- clamp, A42376 solenoid

1шт.

30

D32498

CONTACT

DISC ASSY - contact, A42376 solenoid

1шт.

31

A42411

VALVE SPRING

SPRING - return, contact, A42376 solenoid

1шт.

A42412

PLATE

ASSY - terminal, A42376 solenoid, Includes: Ref. 35 - 47

1шт.

35

A42260

GASKET

- terminal plate, A42376 solenoid

1шт.

36

A42413

STUD

- battery terminal, A42376 solenoid

1шт.

37

D32506

STUD

- field terminal, A42376 solenoid

1шт.

38

A42406

SUPPORT

- coil lead, A42376 solenoid

1шт.

39

17556

SCREW - coil lead, #6-32 x 3/16" truss hd., A42376 solenoid

1шт.

40

D32507

RUBBER INSULATOR

INSULATOR - plate, A42376 solenoid

1шт.

41

A42410

PLATE

- terminal, A42376 solenoid

1шт.

42

D30004

WASHER

- insulating, stud, A42376 solenoid

2шт.

43

A42409

BUSHING

INSULATOR - terminal stud, A42376 solenoid

2шт.

44

A42404

X

WASHER - terminal stud, A42376 solenoid

2шт.

45

192-113

LOCK WASHER,1/2"

WASHER - lock, , A42376 solenoid 1/2"

4шт.

46

129-145

JAM NUT,Jam, 1/2"-13, G5

A42376 solenoid Jam, 1/2"-13, G5

2шт.

47

129-105

NUT,Hex, 1/2" - 13, Gr 5

A42376 solenoid 1/2"-13, G5

2шт.

48

D32500

NUT

- plate, #10-32 seal type, A42376 solenoid

4шт.

49

A42408

ELECTRICAL WIRE

LEAD - ground, A42376 solenoid

1шт.
