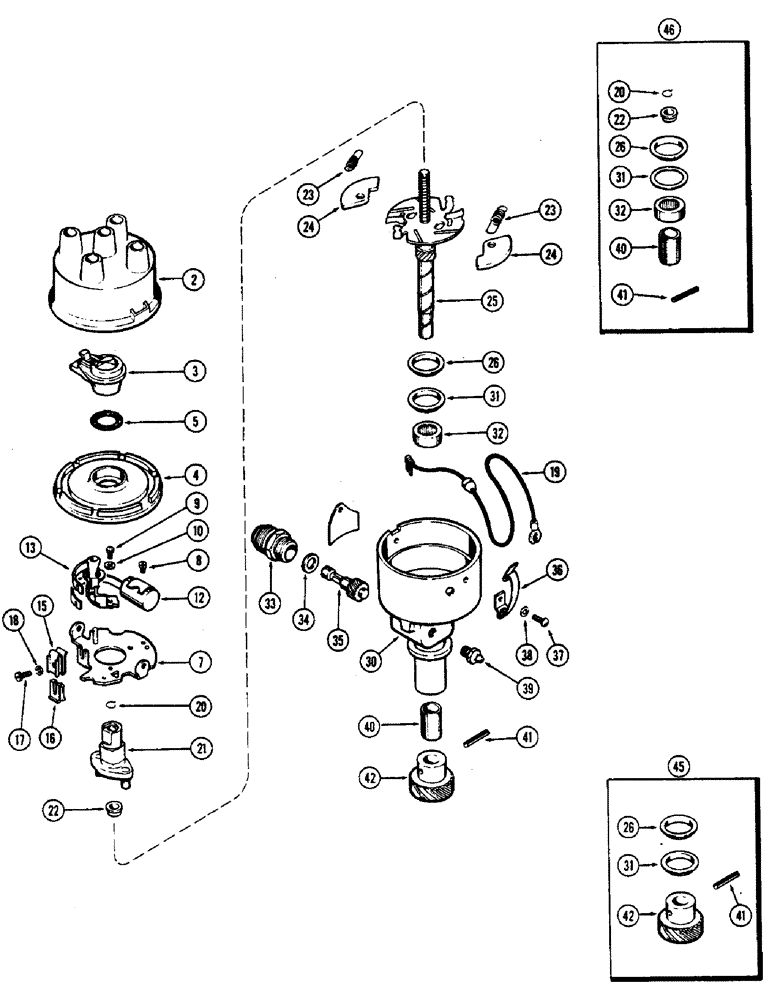

Запчасти Case W7E (060) - A58810 DISTRIBUTOR (04) - ELECTRICAL SYSTEMS

A58810

DISTRIBUTOR ASSY - (Prestolite #IBT-4402A), Includes: Ref. 2 - 46

1шт.

2

A24564

CAP

- distributor

1шт.

3

A24566

ROTOR

- distributor

1шт.

4

A24763

PLATE

ASSY - seal, Includes: Ref. 5

1шт.

5

A24764

WASHER

SEAL - felt dust

1шт.

A40330

PLATE

ASSY - breaker, Includes: Ref. 7 - 18

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - (Order A40330)

1шт.

8

169-56

SCREW - condenser, #6-32 x 3/16" fill. hd.

1шт.

9

A24776

SCREW,Locking, #8 - 32 x 3/16"

- points, #8-32 x 3/16" fill. hd.

1шт.

10

195-509

WASHER,3/16"

- plain, 3/16 x 3/8 x 1/16"

1шт.

A40930

KIT

POINT & CONDENSER KIT, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40930)

1шт.

13

NSS

NOT SOLD SEPARAT

POINT SET - (Order A40930)

1шт.

15

A24774

CLIP

- retaining, insulator & lead

1шт.

16

A24773

INSULATOR

- clamp & lead

1шт.

17

A24775

SCREW,0.138"-32 x 1/32"

- clip, #6-32 x 5/8" hex.

1шт.

18

195-506

WASHER,#6

- 5/32 x 5/16 x 1/32"

1шт.

19

A42179

LEAD - primary wire (14" lg.)

1шт.

20

A24756

RING - snap, cam assy. (See Ref. 46)

1шт.

21

A42429

PLATE - cam & stop

1шт.

22

A24757

SPACER - cam (See Ref. 46)

1шт.

23

A24778

SPRING KIT

SPRING SET - weight (Set of 2)

1шт.

24

A41388

WEIGHT SET - governor (Set of 2)

1шт.

25

A24768

DRIVE SHAFT

SHAFT - drive

1шт.

26

A24753

WASHER

- thrust, upper (See Ref. 45 or 46)

1шт.

30

NSS

NOT SOLD SEPARAT

BASE ASSY - (Order A58810)

1шт.

31

A24752

WASHER

- thrust, lower (See Ref. 45 or 46)

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING - needle (Order Ref. 38)

1шт.

33

A24781

HOUSING ASSY - tach. drive (Incl. bushing)

1шт.

34

A24755

WASHER - thrust, tach. drive

1шт.

35

A24761

SHAFT

- tach. drive (W/gear)

1шт.

36

A40329

SPRING

CLAMP ASSY - distributor cap, Includes: Ref. 37 and 38

2шт.

37

A24779

SCREW - clamp, #8-32 x 15/16" rd. hd.

1шт.

38

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

39

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4" - 28 str.

1шт.

40

NSS

NOT SOLD SEPARAT

BEARING - bronze, housing (Order Ref. 46)

1шт.

41

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Gear 1/8" x 15/16", Slotted

1шт.

42

NSS

NOT SOLD SEPARAT

GEAR - drive shaft (Order Ref. 45)

1шт.

45

A40332

GEAR

KIT - replacement (Incl. ref. 26, 31, 41 & 42)

1шт.

46

A40331

BEARING

KIT - drive shaft (Includes Ref. 20, 22, 26, 31, 32, 40 and 41)

1шт.
