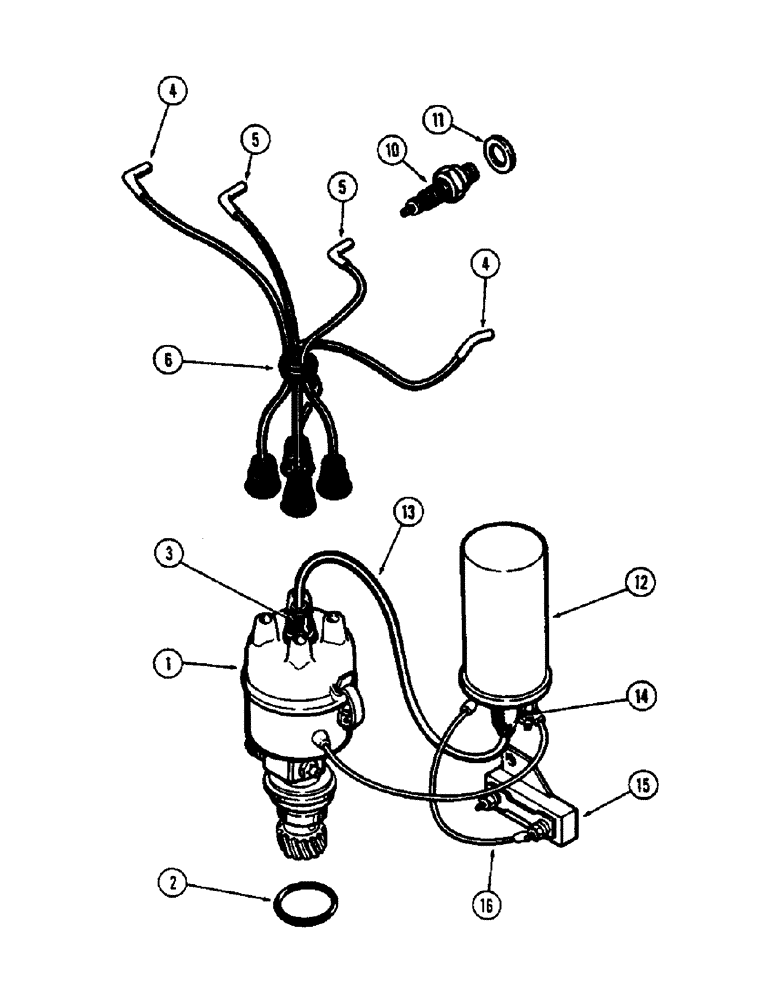

Запчасти Case W7E (058) - DISTRIBUTOR IGNITION SYSTEM (04) - ELECTRICAL SYSTEMS

1

A58810

DISTRIBUTOR ASSY - (Repairs figure 60)

1шт.

2

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - distributor to block (1-1/8 x 1-3/8 x 1/8")

1шт.

3

A29338

COVER

NIPPLE - wire to distributor cap

5шт.

4

31212

WASHER

WIRE - #1 & #4 spark plug (16-1/2" long) (Plain)

2шт.

4

A62853

CABLE

WIRE - #1 & #4 spark plugs (16-1/2" long) (Radio suppression) (W/yellow stripe)

2шт.

5

A20144

ELECTRICAL WIRE

WIRE - #2 & #2 spark plug (11" long) (Plain)

2шт.

5

A62854

CABLE

WIRE - #2 & #3 spark plugs (11" long) (Radio suppression) (W/yellow stripe)

2шт.

6

A23258

RING - harness, spark plug wire

1шт.

10

G44840

SPARK PLUG

PLUG ASSY - spark, Includes: Ref. 11

4шт.

11

G46839

GASKET

- seat, spark plug

1шт.

12

A40778

COIL

- ignition

1шт.

13

A29180

CABLE

WIRE - coil to distributor (12" long) (Plain)

1шт.

13

A62857

ELECTRICAL WIRE

WIRE - coil to distributor (12" long) (Radio suppression) (W/yellow stripe)

1шт.

14

G46803

BOOT

NIPPLE -, Serial Range: wire-coil

1шт.

15

A24504

RESISTOR

- ballast

1шт.

16

A58812

WIRE - coil to resistor (5" lg.)

1шт.
