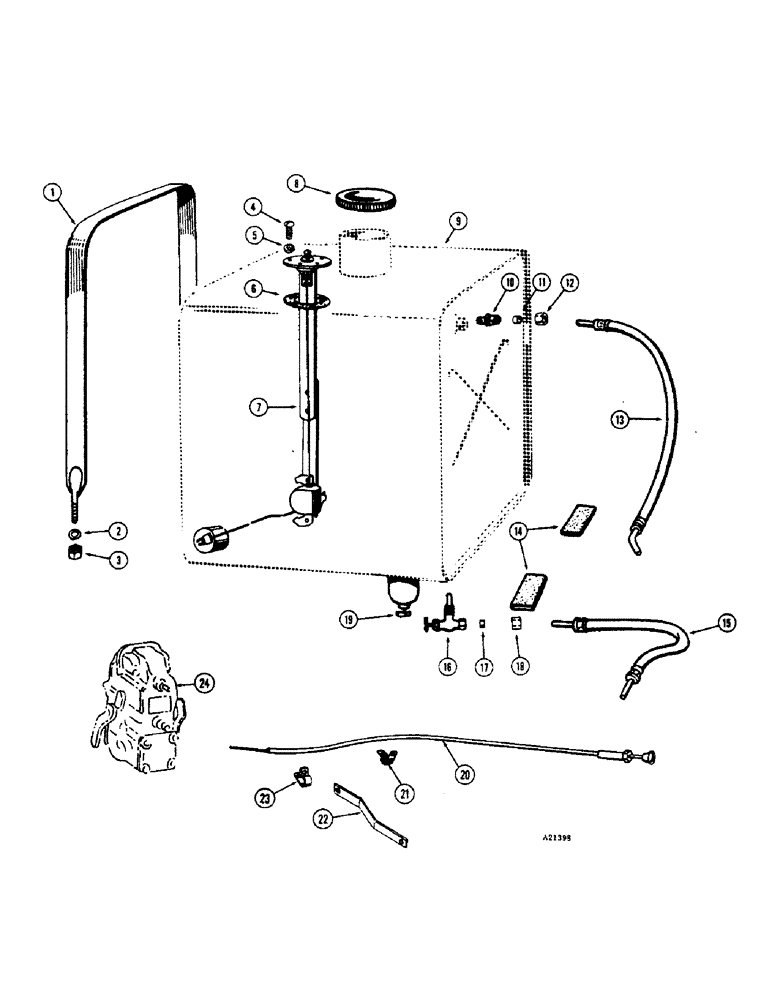

Запчасти Case W7E (146) - FUEL TANK, DIESEL ENGINE (03) - FUEL SYSTEM

1

A17222

STRAP

Mounting, fuel tank

2шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

25-116

NUT,Hex, 3/8"-24, G5

4шт.

4

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

Machine

5шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

5шт.

6

A11822

GASKET

Sending, Serial Range: unit-tank

1шт.

7

A17219

UNIT

SENDING - fuel gauge

1шт.

8

A33558

CAP

Filler

1шт.

9

L42250

TANK - fuel

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - flex tube, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube

1шт.

11

222-102

SLEEVE,1/4" Tube

1шт.

12

87017024

TUBE NUT,1/2"-24

Flex tube fitting

1шт.

13

L10041

HOSE ASSY.

SPARE PART Return, injector, Serial Range: leak-off-tank

1шт.

14

A7390

SPARE PART CUSHION - tank mounting

4шт.

15

L41282

HOSE ASSY.

, Serial Range: Tank-filter

1шт.

A27955

VALVE

ASSEMBLY - fuel shut-off, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE - needle, fuel tank

1шт.

17

222-104

SLEEVE,3/8" Tube

Flex tube fitting

1шт.

18

222-114

NUT,5/8"-24

Flex tube fitting

1шт.

19

217-102

PLUG, DRAIN

VALVE - water drain

1шт.

20

L19266

CABLE

SPARE PART Fuel shut-off

1шт.

21

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

Fuel shut-off

1шт.

22

L40891

SUPPORT

Fuel shut-off

1шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

Hex

2шт.

23

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

Fuel tank rear support

1шт.

24

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (Parts list figure 32)

1шт.
