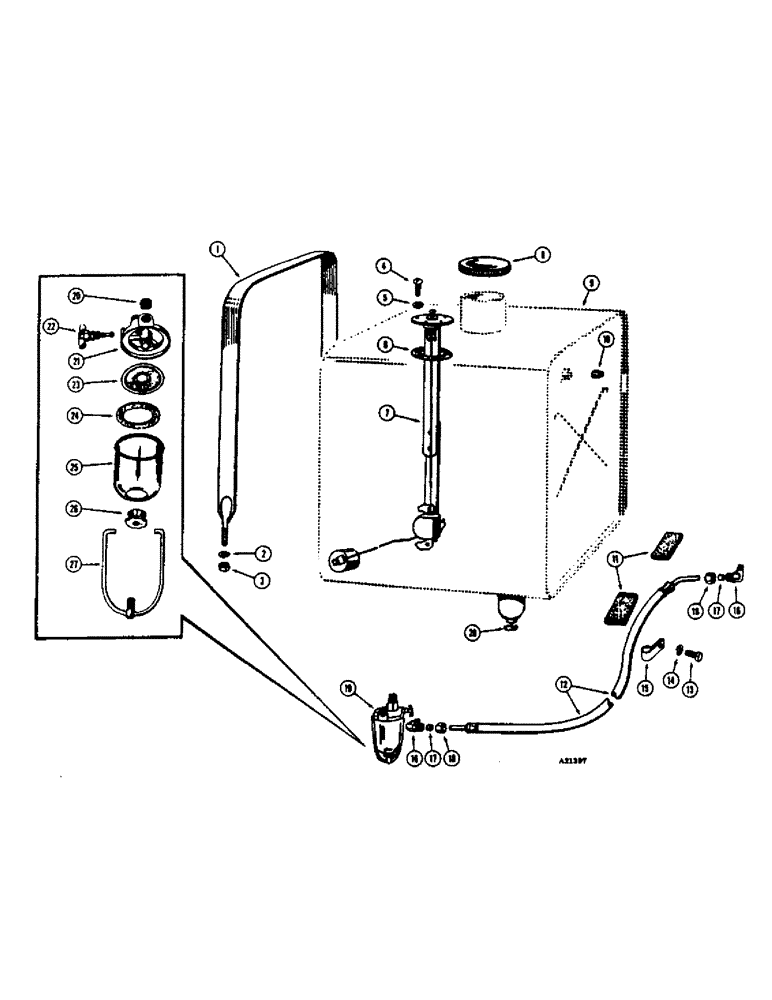

Запчасти Case W7E (144) - FUEL TANK, GAS ENGINE (03) - FUEL SYSTEM

1

A17222

STRAP

- mounting, fuel tank

2шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

4шт.

4

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- machine, #10 x 7/16" N.C. Z.P.

5шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

6

A11822

GASKET

- sending, Serial Range: unit-tank

1шт.

7

A17219

UNIT

SENDING UNIT - fuel gage

1шт.

8

A33558

CAP

- filler

1шт.

9

L42250

TANK - fuel

1шт.

10

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" NPT sq. hd.

1шт.

11

A7390

CUSHION - tank mounting

4шт.

12

A17226

FLEXIBLE HOSE

HOSE -, Serial Range: strainer-carburetor

1шт.

13

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8" x 1/2" N.C. hex

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

49838

CLAMP

- fuel tube

1шт.

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

- flex tube, 90 degrees, Includes: Ref. 16 - 18

2шт.

16

NSS

NOT SOLD SEPARAT

ELBOW - flex tube

1шт.

17

222-103

SLEEVE,5/16" Tube

- flex tube fitting 5/16" Tube

1шт.

18

222-113

TUBE NUT,9/16"-24

NUT - flex tube fitting

1шт.

19

A26615

STRAINER ELEMENT

STRAINER - fuel, Includes: Ref. 20 - 27

1шт.

20

221-1849

PLUG

- pipe, hex, socket hd., 1/8" NPT

1шт.

21

A11215

BODY

- strainer

1шт.

22

A11205

VALVE

- fuel shut-off

1шт.

23

A11202

SCREEN

- strainer

1шт.

24

A11203

GASKET

- fuel bowl

1шт.

25

A11204

BOWL

- fuel

1шт.

26

A11210

ADJUSTER

NUT - bowl retainer

1шт.

27

A11206

BAIL

ASSEMBLY - bowl retainer

1шт.

28

217-102

PLUG, DRAIN

VALVE - drian, fuel tank

1шт.
