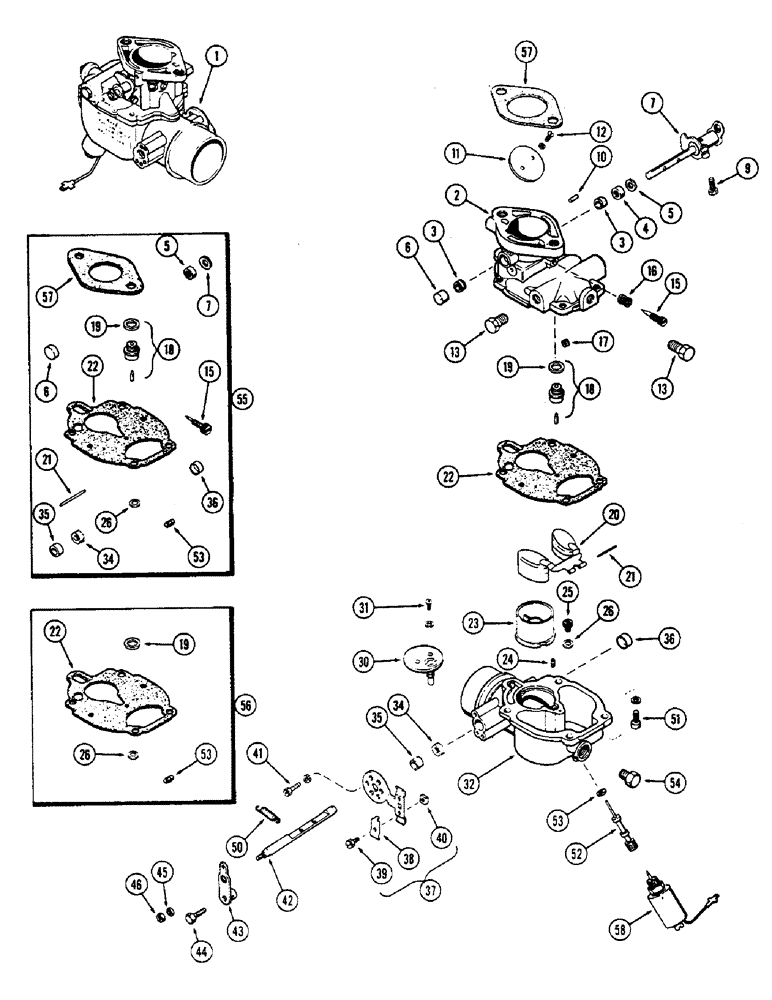

Запчасти Case W7E (054) - A60888 CARBURETOR, (301B) SPARK IGNITION ENGINE, REAR INLET W/ DRY TYPE AIR CLEANER (03) - FUEL SYSTEM

1

A60888

CARBURETOR ASSY - (Zenith #13462), Includes: Ref. 2 - 54

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - throttle (Order Ref. 1), Includes: Ref. 3 - 6

1шт.

3

A40609

BUSHING

- throttle shaft

2шт.

4

N51528

SEAL - shaft hole

1шт.

5

B59360

RETAINER

WASHER - seal retainer

1шт.

Part of carburetor repair kit A41085

1шт.

6

A40612

PLUG

- shaft hole

1шт.

Part of carburetor repair kit A41085

1шт.

7

A42792

SHAFT

LEVER & SHAFT ASSY - throttle control, Includes: Ref. 9

1шт.

9

B51581

SCREW - stop

1шт.

10

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Stop 3/32" x 7/16", Slotted

1шт.

11

A42348

PLATE - throttle

1шт.

12

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- throttle, Serial Range: plate-shaft

2шт.

13

B51541

PLUG

- fuel opening

2шт.

15

B51265

HOSE

NEEDLE - idle adjusting

1шт.

Part of carburetor repair kit A41085

1шт.

16

B51404

SPRING

- idle adjusting

1шт.

17

A42354

JET - idle

1шт.

18

A41086

VALVE SEAT

VALVE & SEAT - fuel (Matched set), Includes: Ref. 19

1шт.

Part of carburetor repair kit A41085

1шт.

19

B51618

WASHER

- valve seat

1шт.

20

B51359

FLOAT

- fuel bowl

1шт.

21

B51433

AXLE

- float

1шт.

Part of carburetor repair kit A41085

1шт.

22

B51471

GASKET

- bowl

1шт.

23

A42352

VENTURI

1шт.

24

B51338

TUBE

JET - well vent

1шт.

25

A42353

JET - main

1шт.

26

B51619

WASHER

- fiber, main jet

1шт.

Part of carburetor repair kit A41085

1шт.

30

B51362

PLATE ASSY - choke

1шт.

31

A24896

SCREW,Sl Rnd Hd, #5 - 40 x 1/4", w/ LW

- choke, Serial Range: plate-shaft

2шт.

32

NSS

NOT SOLD SEPARAT

BOWL ASSY - fuel, Includes: Ref. 34 - 36

1шт.

34

B51533

WASHER

- packing, choke shaft

1шт.

Part of carburetor repair kit A41085

1шт.

35

B51439

RETAINER

- shaft packing

1шт.

Part of carburetor repair kit A41085

1шт.

36

B51509

PLUG

- choke shaft hole

1шт.

Part of carburetor repair kit A41085

1шт.

37

A42350

BRACKET ASSY - choke, Includes: Ref. 38 - 40

1шт.

38

B51403

CLIP

- choke rod

1шт.

39

B51580

SCREW

- clip

1шт.

40

129-76

SQUARE NUT,#8 - 36

- #8-36 sq.

1шт.

41

B51458

SCREW,#8 - 32 x 0.37"

-, Serial Range: bracket-bowl

2шт.

42

A43274

SHAFT

ASSY - choke

1шт.

43

B51378

LEVER

- choke shaft, Includes: Ref. 44

1шт.

44

B51579

SCREW - swivel, choke rod

1шт.

45

87812

LOCK WASHER,#8

Washer, Lock, #8

1шт.

46

129-36

NUT,#8-36

- #8 N.F. hex.

1шт.

50

B51412

SPRING

- return, choke

1шт.

51

B51635

SCREW,5/8" x 0.335"

-, Serial Range: body-bowl

4шт.

52

A42355

JET - discharge

1шт.

Part of carburetor repair kit A41085

1шт.

53

B51610

WASHER

- fiber, discharge jet

1шт.

54

B51541

PLUG

- bowl drain

1шт.

55

A41085

KIT

REPAIR KIT - carburetor, Incl. Refs. 5, 6, 15, 18, 21, 22, 26, 34, 35, 36, 52, 56 and 57

1шт.

56

A40623

GASKET KIT

GASKET - carburetor (Incl. Refs. 19, 22, 26 & 53)

1шт.

Part of carburetor repair kit A41085

1шт.

57

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of carburetor repair kit A41085

1шт.

58

A61270

SOLENOID

- fuel shut-off

1шт.
