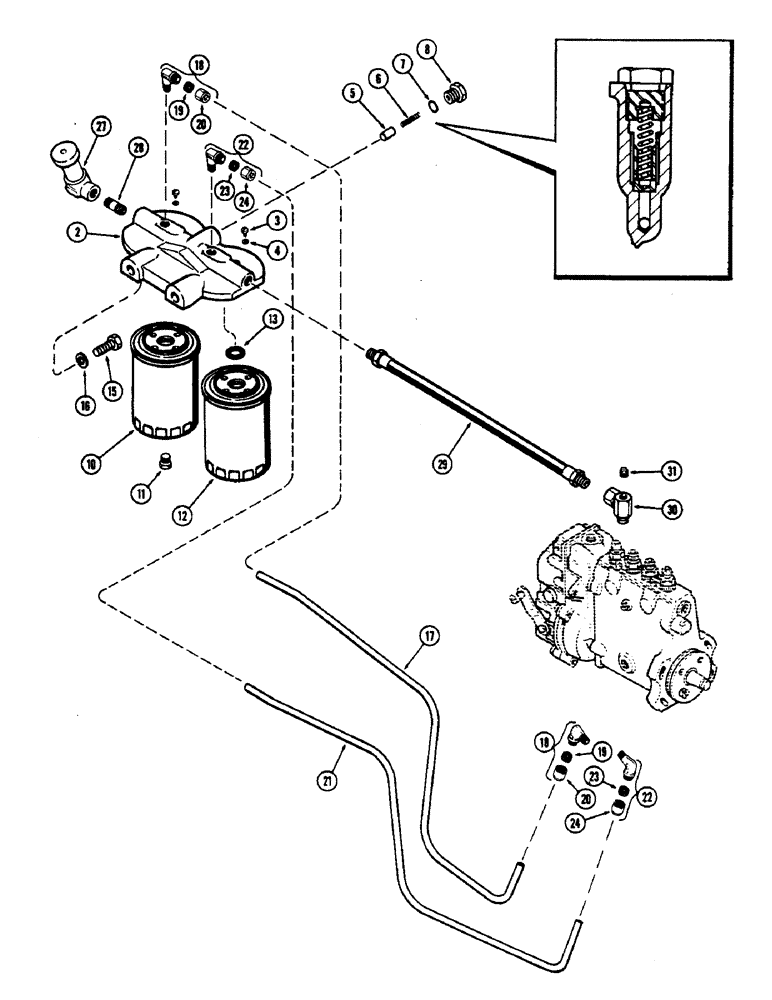

Запчасти Case W7E (031A) - FUEL INJECTION FILTER SYSTEM, (301B) DIESEL ENGINE, USED PRIOR TO ENG. SN 2323001 (03) - FUEL SYSTEM

A58719

FILTER

ASSY - fuel system, Includes: Ref. 2 - 8

1шт.

2

A58711

FILTER

HEAD - filter mounting

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed

2шт.

4

A20662

GASKET

WASHER - bleed screw

2шт.

5

A24917

PLUNGER

- relief valve

1шт.

6

A24918

SPRING

- relief valve

1шт.

7

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug, 1/2 x 11/16 x 3/32"

1шт.

8

A24916

PLUG

- relief valve

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - filter replacement, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - 1st stage, Includes: Ref. 11

1шт.

11

221-1661

PLUG

- 1/8" P.T. hex. hd.

1шт.

12

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage, Includes: Ref. 13

1шт.

13

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A58772

TUBE

- 1st stage to pump (3/8" O.D.)

1шт.

18

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY - fuel line, 3/8" tube x 1/4" P.T., Includes: Ref. 19 and 20

2шт.

19

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

20

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

21

A58773

TUBE

- pump to 2nd stage filter (5/16" O.D.)

1шт.

22

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY - fuel line, 5/16" tube x 1/4" P.T., Includes: Ref. 23 and 24

2шт.

23

222-103

SLEEVE,5/16" Tube

1шт.

24

222-113

TUBE NUT,9/16"-24

NUT - 5/16" tube

1шт.

27

A60042

PUMP

- hand primer

1шт.

27

A60042R

REMAN-FUEL LIFT PUMP

HAnd Primer

1шт.

27

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

28

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 2/4" P.T. x 1" lg.

1шт.

29

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- filter head to pump (10" long)

1шт.

30

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

31

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union, 1/8" P.T., sq. hd.

1шт.
