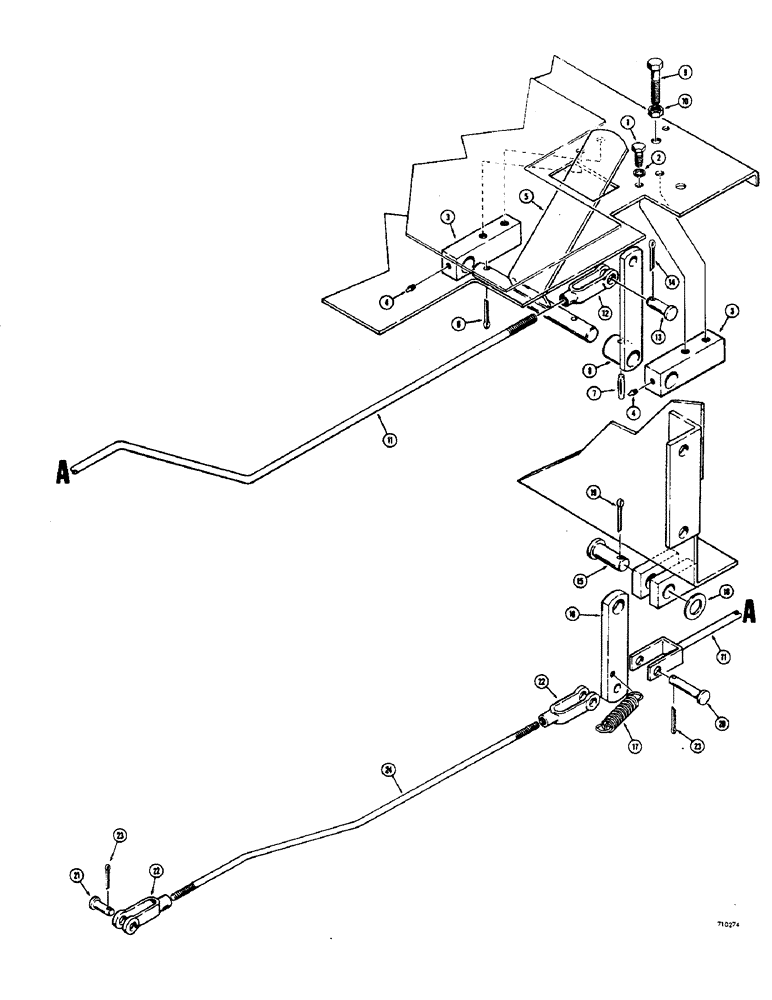

Запчасти Case W7E (099A) - THROTTLE CONTROL LINKAGE, DIESEL ENGINE, TRACTOR SN. 9900001 & AFTER (02) - ENGINE

1

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

2

92-5

LOCK WASHER,5/16"

4шт.

3

A17249

SUPPORT

BLOCK - support, throttle shaft

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

5

T42523

PEDAL AND SHAFT - accelerator

1шт.

6

132-68

PIN

- cotter, 5/32" dia. x 7/8"

1шт.

7

135-341

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, 3/16" x 1", Type F

1шт.

8

T42438

LEVER - accelerator, front

1шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Accelerator pedal stop)

1шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

1шт.

11

T42525

ROD - throttle control, front

1шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clevis (3/8")

1шт.

13

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

14

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

15

A37542

AXLE PIN

PIN - pivot, accelerator lever

1шт.

16

T42527

LEVER - accelerator, rear

1шт.

17

A37005

SPRING

- accelerator return

1шт.

18

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

19

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

20

T42437

PIN - connecting, front to rear throttle rod

1шт.

21

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - clevis (5/16")

2шт.

23

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

24

T42528

ROD - throttle control, rear

1шт.
