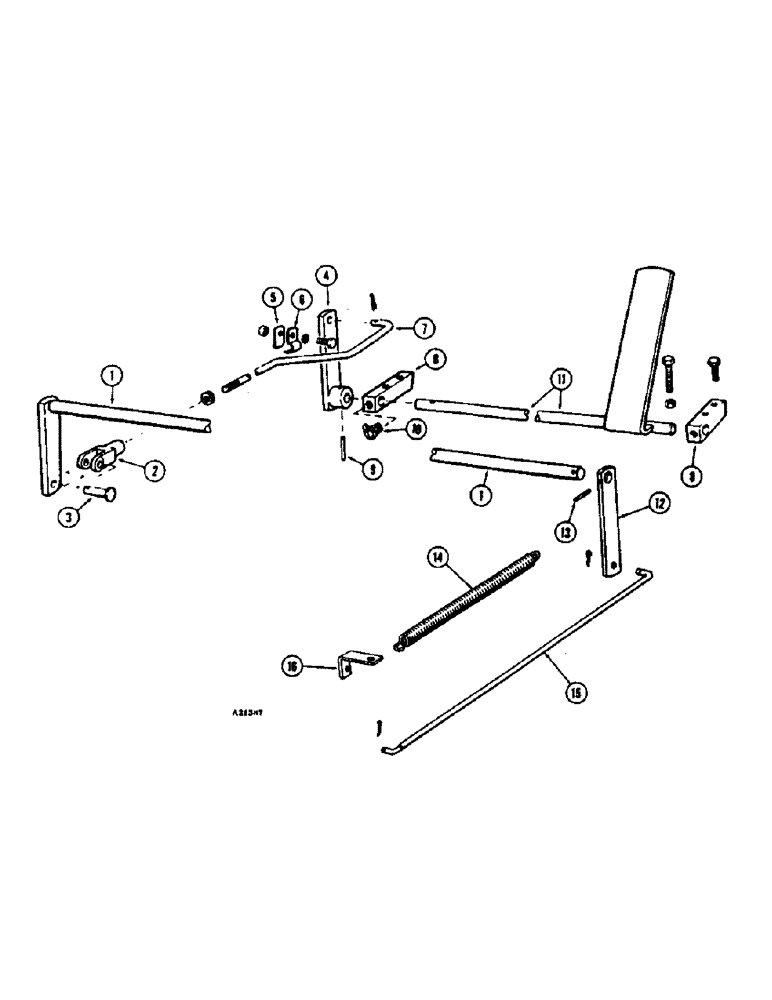

Запчасти Case W7E (098) - THROTTLE CONTROL LINKAGE, DIESEL ENGINE, (BEFORE TRACTOR SN. 9900001) (02) - ENGINE

1

L40698

SHAFT - pivot, throttle control

1шт.

2

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - throttle rod

1шт.

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex jam

1шт.

3

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

4

A17250

SUPPORT

LEVER - foot control

1шт.

5

A17255

SPACER - rod clip

1шт.

6

A27128

CLIP - throttle rod

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25-104

NUT,1/4"-20, G5

1шт.

7

A17254

ROD - throttle control, front

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

8

A17249

SUPPORT

- throttle cross shaft

2шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

92-5

LOCK WASHER,5/16"

4шт.

9

135-341

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, , Lever 3/16" x 1", Type F

2шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

11

A17246

THROTTLE AND SHAFT - foot control

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2"

1шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex jam

1шт.

12

A14898

LEVER - throttle shaft

1шт.

13

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

14

A37005

SPRING

- throttle return

1шт.

15

L40694

ROD - throttle control, rear

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

16

L42510

CLIP - throttle lever, return spring

1шт.
